.1.

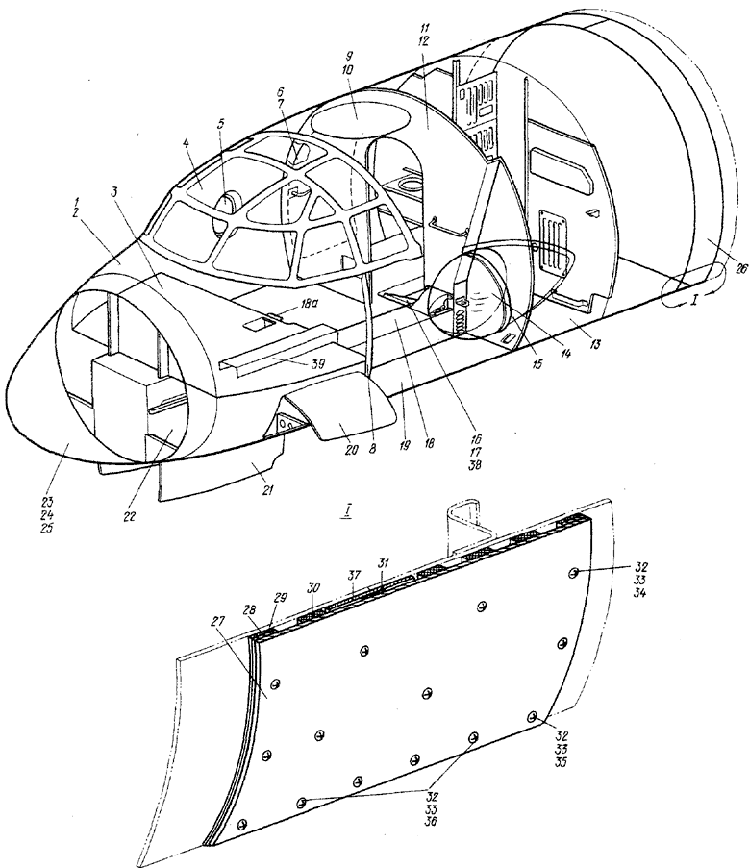

Pig.1. FUSELAGE NOSE SECTION
.
Figure and item No. |
Part number |
Nomenclatu re
1234567 |
K-o
Units per Assy |
Effectivity |
| |
|
I.
FUSELAGE NOSE SECTION |
|
|
| |
26-0200-0 |
FUSELAGE HOSE SECTION |
I |
|
| I - I |
26-0290-0 |
. ( -1)
Fuselage nose section (-I section) skin sheets |
I |
|
| 2 3 |
26-0291-0 |
. -I
-I section stringers layout
|
I |
|
| |
26-0220-0 |
. (. 2.1, .2)
Pilots' station floor (See 2.1, Fig.2) |
I |
|
| 4 |
24-0250-30 |
. (. 2, .3)
Crew cabin canopy glazing (See 2.1, Fig.3) |
I |
|
| 5 |
26-0203-50 |
. (. 2.1, .5)
Radio operator's window (See 2.1, Fig.5) |
I |
|
| 6 |
26-0260-0 |
.
Entrance door framing |
I |
|
| 7 |
26-0260-50 |
. (. 2.1, .6)
Entrance door (See 2.1, Fig.6) |
I |
|
| 8 |
26-0104-0 |
. 4 (. 2.1, .7)
Frame .4 (See 2.1, Fig.7) |
I |
|
| 9 |
24-0270-50 |
. (. 2.1, .8)
Dorsal emergency hatch cover (See 2.1, Fig.8) |
I |
|
| 1 - 10* |
26-0270-100 |
. (. 2.1, .9)
Astrodome (See 2.1, Pig.9) |
I |
|
| 11 |
26-0107-0 |
. 7
Frame No.7 |
I |
|
| 12 |
26-0107-50 |
. 7 (. 2.1, .10)
Door in frame No.7 (See 2.1, Pig.10) |
T
. |
|
| 13 |
26-0240-0 |
. 7-II (. 2.1, .2)
Ploor between frames Nos 7 and 11 (See 2.1, Pig.2) |
I |
|
| 14 |
26-0204-50 |
. (. 2.1, .11)
Navigator's blister (See 2.1, Pig.11) |
I |
|
| 15 |
26-0204-70 |
. (. 2.1, .12)
Navigator's blister fairing (See 2.1, Pig.12) |
I |
|
| 16 |
26-0223-0 |
. (. 2.1, .13)
Ventral emergency hatch framing (See 2.1, Pig.13) |
I |
|
| 17 |
26-0223-50 |
. (. 2.1, .13)
Ventral emergency hatch door (See 2.1, Pig.13) |
I |
|
| 18 |
26-0220-100 |
. 4-7 (. 2.1, .2)
Duct between frames Nos 4 and 7 (See 2.1, Pig.2) |
I |
|
* 24-0270-50
a special order instead of dorsal emergency hatch cover 24-0270-50 |
.
Figure and item No. |
Part number |
Nomenclatu re
1234567 |
K-o
Units per Assy |
Effectivity |
| I - I8a |
26-0230-85 |
. 4 (. 2.1, .1)
Duct at frame No.4 (See 2.1, Fig.l) |
I |
|
| 19 |
26-0230-0 |
. 4-7 (. 2.1, .2)
Floor between frames Nos 4 and 7 (See 2.1, Pig.2) |
I |
|
| 20 |
24-0253-260-1 |
. 2-4, (. 2.1, .14)
Access door between frames Nos 2 and 4, RH (See 2.1, Pig.14) |
I |
|
| |
24-0253-260-2 |
. 2-4, (. 2.1, .14)
Access door between frames Nos 2 and 4, LH (See 2.1, Pig.14) |
I |
|
| 21 |
24-0254-50 |
. (. 2.1, .15)
Nose L.G. bay doors (See 2.1, Pig.15) |
I |
|
| 22 |
26-0254-0 |
.
Nose L.G. bay |
I |
|
| 23 |
24-7109-20/6 |
.
Nose radome |
I |
|
| 24 |
24-0255-50 |
. (. 2.1, .17)
Nose radome attachment elements (See 2.1, Pig.17) |
I |
|
| 25 |
24-0255-80 |
. (. 2.1, .18)
Nose radome installation (See 2.1, Pig.18) |
I |
|
| 26 |
26-0295-0 |
.
Cover sheet |
I |
|
| 1-27 |
26-0295-0-3 |
..
Sheet, |
I |
|
| |
26-0295-0-4 |
..
Sheet, LH |
I |
|
| 28 |
26-0295-0-5 |
.. ,
Strap |
4 |
|
| 29 |
26-0295-6 |
..
Strap |
2 |
|
|
24-0295-4 |
..
Strap |
8 |
|
| Dz |
24-0295-10 |
..
Strap |
I |
|
| 32 |
24-0295-1 |
..
Bolt |
202 |
|
| 33 |
3295A-4 |
..
Nut |
202 |
|
| 34 |
24-0295-3 |
..
Washer |
96 |
|
| 35 |
24-0295-7 |
..
Gaaket |
4 |
|
| 36 |
24-0295-8 |
..
Gasket |
8 |
|
| 37 |
26-0293-0 |
. -I
-2
-I -to- -2 sections attachment joint |
I |
|
| 38 |
26-0240-300 |
. (. 2.1, .19)
Ventral emergency hatch door (See 2.1, Pig.19) |
I |
|
| 1-39 |
26-0220-200 |
. (. 2.1, .2)
Duct for control system parts in pilots' station floor (See 2.1, Fig.2) |
I |
|
