-26

.6.

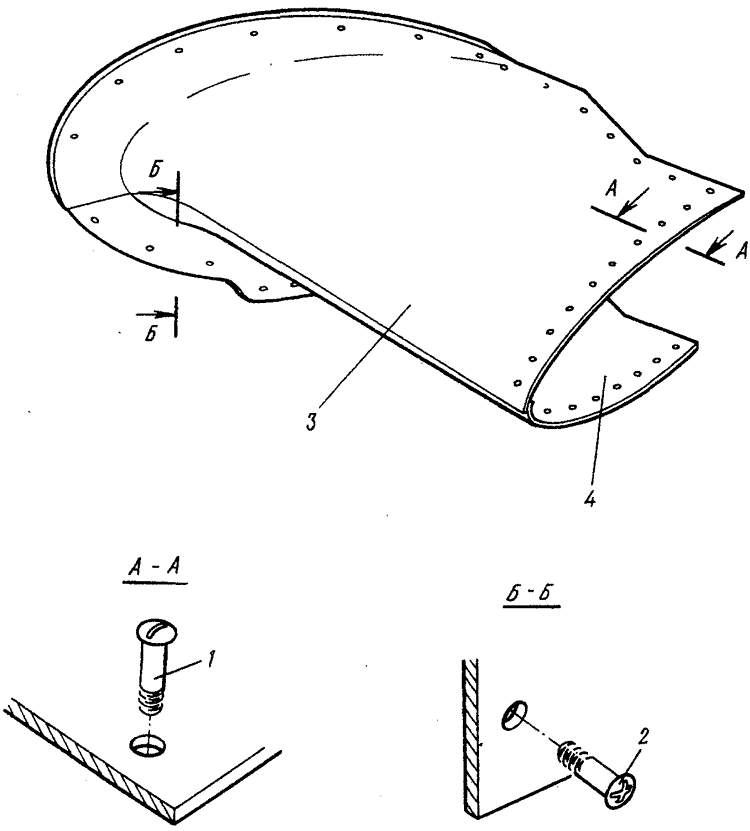

Fig.6. HORIZOHTAL STABILIZEH-TO-FUSELAGE JOINT FAIRING



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-3060-0-1 , (.4.1, .1, .9)
HORIZONTAL STABILIZER-TO- FUSELAGE JOINT FAIRING, RH (See 4-1, Fig.l, Item No.9)
I
  26-3060-0-2 , (. 4.1, .1, .9) HORIZONTAL STABILIZER-TO- FUSELAGE JOINT FAIRING, LH (See 4.1, Fig.1, Item No.9) I
6 - 1 3172A-4-12 .
Screw
48
2 3172A-4-10 .
Screw
60
3 26-3060-0-3 .
Skin, RH
I
  26-3060-0-4 .
Skin, LH
I
4 26-3060-0-5 .
Skin, BH
I
  26-3060-0-6 .
Skin, LH
I
