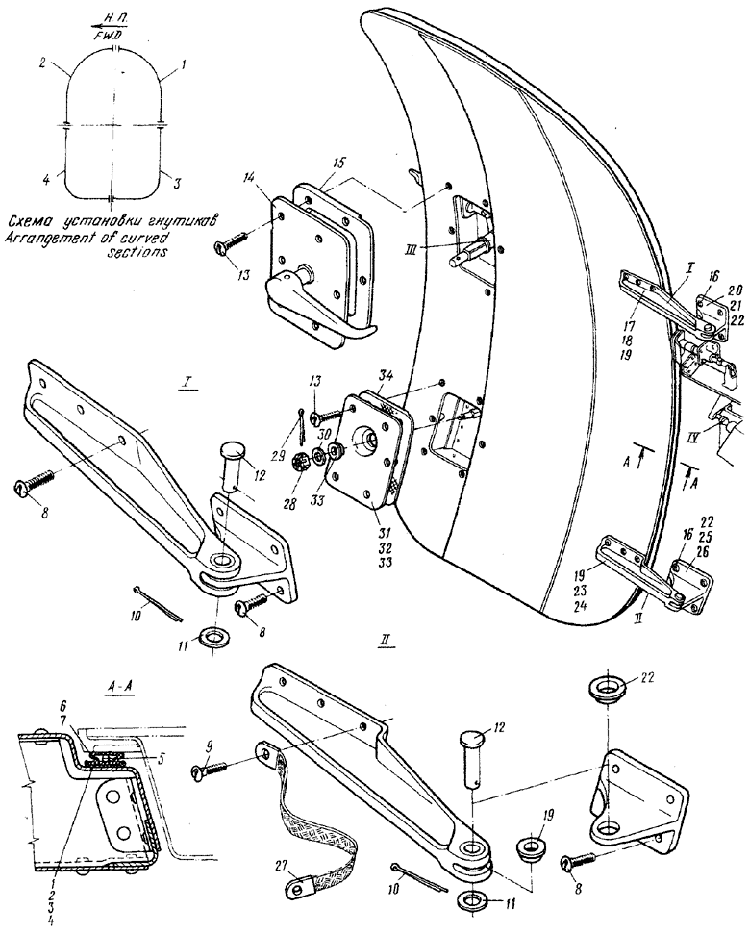

Pig,6. ENTRANCE DOOR. (Sheet 1 of 3)



.6. . ( 3 . 2)

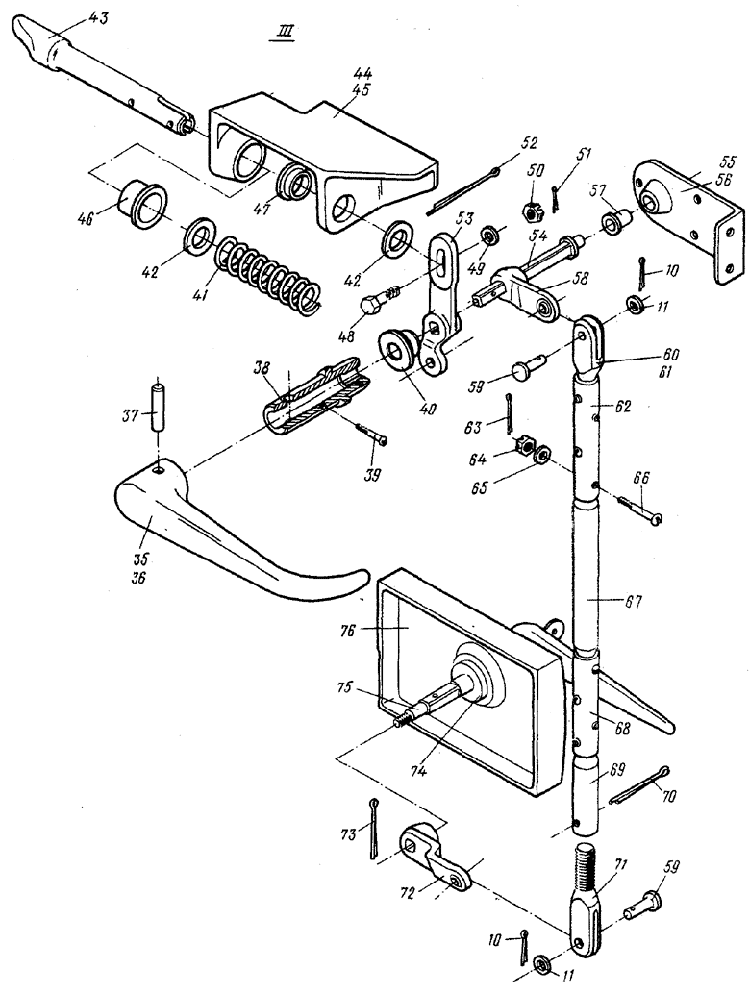

Pig.6. ESTRANGE DOOR. (Sheet 2 of 3)



.6. . ( 3 . 2)

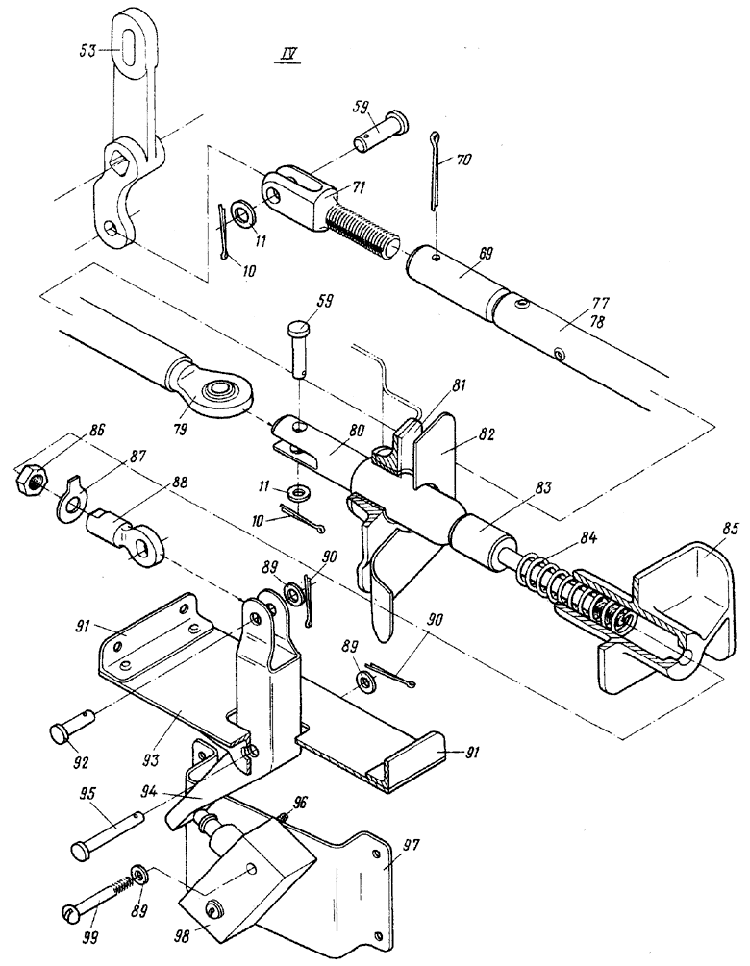

Pig.6. ESTRANGE DOOR. (Sheet 2 of 3)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0260-50 (. 2.1, .7)
ENTRANCE DOOR (See 2.1, Item .7)

6-1 26-0260-50-91 .
Curved section
I
2 26-0260-50-92 .
Curved
section
I
3 26-0260-50-93 .
Curved
section
I
4 26-0260-50-94 .
Curved
section
I
5 24-0370-413 .
Bead
2
6 24-0370-206 .
Section
2
7 24-0370-378 .
Joint strip
2
8 3051A-6-16 .
Bolt
15
9 305IA-6-I8 .
Bolt
I
10 2x12-002
397-66
.
Cotter pin
6
11 3402A-1-6-12 .
Wasiter
6
12 1340051-6-28-25,5 .
Pin
2
3172A-4-18 .
Screw
13
6-14 26-0260-67 .
Cover
I
15 26-0260-19 .
Gasket
I
16 3051A-6-20 .
Bolt
4
17 26-0260-77 .
Bracket assy
I
18 26-0260-77-3 ..
Bracket
I
19 24I7A57-6-9-6
. .
..
Bushing
4
20 26-0260-78 .
Bracket
I
21 26-0260-78-3 ..
Bracket
I
22 26-0260-81 ..
⳿ rig
2
23 26-0260-85 .
Bracket
I
24 26-0260-85-3 ..
Bracke t
I
25 26-0260-84 .
Bracket assy
I
26 26-0260-84-3 ..
Bracket
I
27 99AH-4-200 .
Bonding jumper
I
28 3341A-8 .
Nut
I
6-29 2,5x32-002
397-66
.
Cotter pin
I
30 3402A-1-8-16 .
Washer
I
1 26-0260-82 .
Corer assy
I
32 26-0260-82-3 ..
Cover
I
33 2414A57-8-11-8 ..
Bushing
I
34 26-0260-18 .
Gasket
I
35 26-0260-95 .
Handle assy
I
36 26-0260-66 ..
Handle
I
37 3480-522-32
Peg
I
38 26-0260-65 ..
Bushing
I
39 971A50-6-8 . Screw I
40 26-0260-63 .
Bushing
I
41 1918-2-20-92-11
Spring
I
42 34024-1,5-14-25 .
Washer
2
43 26-0260-55 . Peg I
44 26-0260-60 . s
Bracket assy
I
6-45 26-0260-60-3 ..
Bracket
I
46 2413A57-20-24-12 ..
Bushing
I
47 2413A57-I4-17-5 ..
Bushing
I
48 3027A-6-22-3 .
Bolt
I
49 3401A-1,5-6-12 .
Washer
I
50 3341A-6 . Nut I
51 1,6x20-002
397-66
.
Cotter pin
I
52 3,2x35-002
397-66
.
Cotter pin
I
53 26-0260-12 .
Bellcrank
I
54 26-0260-62 . Axle I
55 26-0260-61 .
Bracket assy
I
56 26-0260-61-3 ..
Bracket
I
57 2414A57-8-11-I0 ..
Bushing
I
58 26-0260-64 .
Bellcrank
I
59 134051-6-20-16,5 .
Pin
4
60 26-0260-70 .
Control rod assy
I
6-61 26-0260-71 ..
Fork
I
62 26-0260-70-3 ..
Tube
I
63 1x12-002
397-66
..
Cotter pin
4
64 3341A-4 ..
Nut
4
65 3404A-2-4-8 ..
Washer
4
66 305IA-4-22-2,5 ..
Bolt
4
67 26-0260-72 ..
Bushing
I
68 26-0260-70-5 .. Pipe I
69 26-0260-73 ..
Adapter
2
70 3x20-002
397-66
..
Cotter pin
2
71 26-0260-74 ..
Pork
2
72 26-0260-83 .
Be11rank
I
73 2,5x20-002
397-66
.
Cotter pin
I
74 26-0260-89 .
Bushing
I
75 24-0370-80 .
Lock mechanism
I
76 26-0260-87 ,
Lock body
I
6-77 26-0260-16 .
Control rod assy
I
78 26-0260-16-3 ..
Tube
I
79 26-0260-13 ..
Lug
I
80 26-0260-14 .
Peg
I
81 26-0260-15 .
Seat
I
82 26-0260-10-15 .
Cover plate
I
83 26-0260-7 .
Rod
I
84 1916A-I,5-12-60 .
Spring
I
85 26-0260-11 .
Seat
I
86 3310A-5 .
Nut
I
87 3455A-5 .
Locking washer'
I
88 26-0260-9 .
Lug
I
89 3401A-0,8-4-8 .
Washer
8
90 1,5x8-002
397-66
.
Cotter pin
2
91 26-0260-10-7 .
GusBet plate
2
92 1340C5I-4-14-12 .
Pin
I
6-93 26-0260-10-5 .
Bracket
I
94 26-0260-10-9 .
Lever
I
95 1340C51-4-28-25 .
Pin
I
96 26-0260-10-13 .
Section
2
97 26-0260-10-11 .
Base
I
98 802 .
Limit switch
I
99 3166A-4-28 .
Screw
2
