-26

.8.

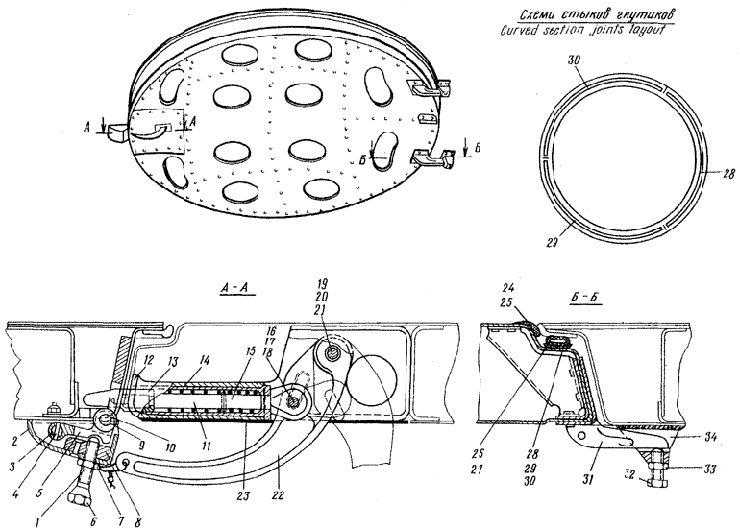

Pig.8. DORSAL EMERGENCY HATCH COVER



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0270-50 (. 2.1, .1, .9)
DORSAL EMERGENCY HATCH COVER (See 2.1, Fig.l, Item No.9)
I
8-1 24-0270-220 .
Holder
I
2 24-0270-219 ..
Bracke t
I
3 24-0270-204-3 . 4
Axle
I
4 24-0270-220-3 ..
Peg
I
5 24-0270-201 ..
Pork
I
6 24-0270-215 ..
Screw
I
7 3320A-8-182AT-3 ..
Nut
I
8 24-0270-216 ..
Nut
I
9 24-0270-204-1 ..
Axle
I
10 24-0270-205 ..
Roller
I
11 24-0270-70 .
Dorsal emergency hatch cover lock
I
12 24-0270-181 ..
Lock body
I
13 24-0270-206 ..
Peg
I
8-14 I9I6A-1,5-14-80 ..
Spring
I
15 24-0270-203 ..
Shank
I
16 1340C51-6-22-1815 K5 ..
Pin
I
17 3402A-1-6-12 ..
Washer
I
18 1,5x20-002 397-66 ..
Cotter pin
I
19 1340C51- 8-45-41,5 Kct ..
Pin
I
20 3402A-1,5-8-16 ..
Washer
I
21 2x2,5-002
397-66
..
Cotter pin
I
22 24-0270-211 .. Handle I
23 24-0270-50-68 .
Access door
I
24 24-0270-84 .
Packing
I
25 24-0270-50-35 .
Bra id ing
I
26 24-0370-206 .
Section
I
27 24-0370-378 .
Joint strip
I
28 24-0270-50-60 .
Curved section
I
8-29 24-0270-50-61 .
Curved section
I
30 24-0270-50-62 . THE
Curved section
I
31 24-0270-209-1 .
Bracket, RH
I
  24-0270-209-2 .
Bracket,
I
32 3151A-8-26 . Bolt I
33 3320A-8 . Nut I
34 24-0270-207-1 .
Bracket, RH
I
  24-0270-207-2 .
Bracket, LH
I
