-26

.9.

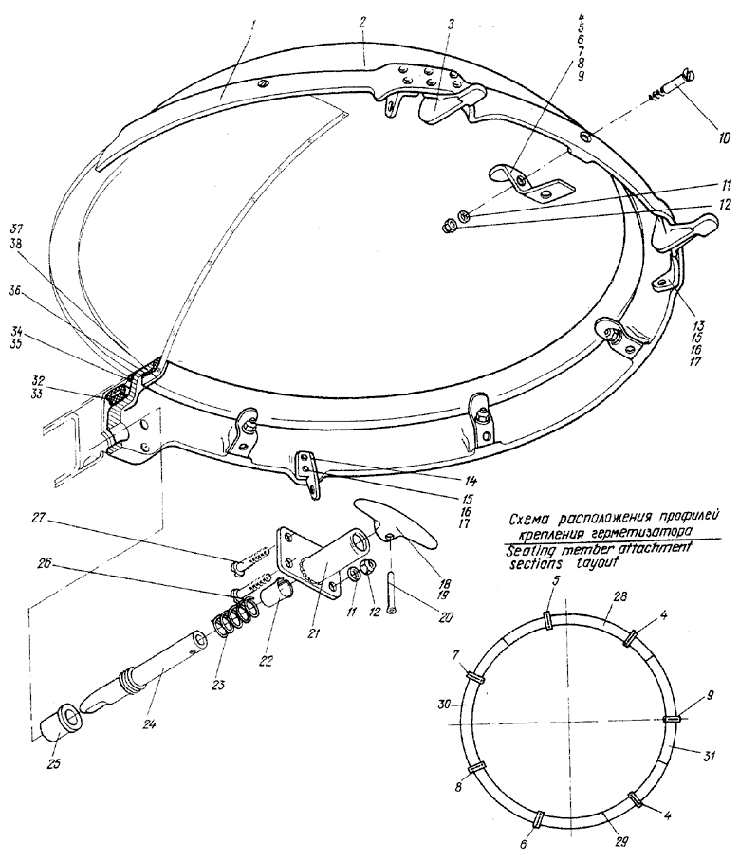

?ig.9. ASTRODOME



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0270-100 (. 2.1, , .10)
ASTRODOME (See 2.1, Fig.l, Item No.10)

9-1 26-0270-130-3 . Astrodome base I
2 26-0270-100-23 .
Blister
I
3 26-0270-110-1 .
Bracket, RH
I
  26-0270-110-2 .
Bracket, LH
I
4 26-0270-102-3 .
Holder
2
5 26-0270-102-4 .
Holder
I
6 26-0270-102-5 .
Holder
I
7 26-0270-102-6 .
Holder
I
8 26-0270-102-7 .
Holder
I
9 26-0270-102-9 .
Holder
I
10 3181A-5-54 .
Screw
7
11 3401A-0,8-5-10 .
Washer
11
12 3373A-5 . Nut 11
13 26-0270-117-I .
Bracket, RH
I
9-13 26-0270-117-2 .
Bracket, LH
I
14 26-0270-118-1 .
Bracket, RH
I
  26-0270-118-2 .
Bracket, LH
I
15 3072A-4-16 .
Bolt
8
16 3373A-4 . Rut 8
17 340IA-0,8-4-8 . da
Washer
8
18 26-0270-120 .
Astrodome lock
I
19 26-0270-123 .. Handle I
20 3610A-5-30 ..
Tubular rivet
I
21 26-0270-122 .. Astrodome lock body I
22 26-0270-124 ..
Bushing
I
23 1916A-1,5-16-45 ..
Spring
I
24 26-0270-127 ..
Peg
I
25 26-0270-115 ..
Bushing
I
26 3072A-5-28 .
Bolt
2
27 3072A-5-26 . Bolt 2
9-28 26-0270-100-24 .
Section
I
29 26-0270-100-25 .
Section
I
30 26-0270-100-26 .
Section
I
31 26-0270-100-27 .
Section
I
32 24-0370-206 .
Section
I
33 24-0370-378 .
Joint strip
I
34 24-0270-84 . Sealant I
35 26-0270-100-11 .
Capron trimming
I
36 26-0270-116 .
Sealing
ring
I
37 26-0270-100-29 .
Gasket
I
38 26-0270-100-28 .
Trimming
I
