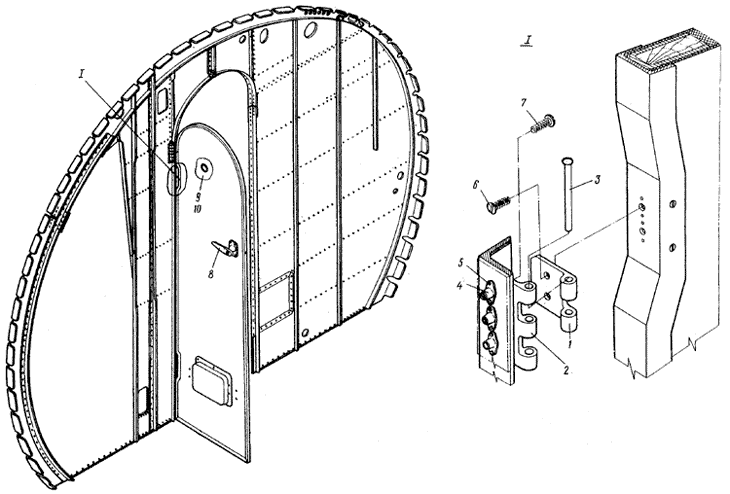

Pig.10. DOOR FRAME No.7



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0107-50 7 (. 2.1,
. 1, . 12)
DOOR IN FRAME . 7 (See 2.1, Pig.l. Item No. 12)
I
10 - 1 1256C56-15-45 .
Hinge half
2
2 1256C56-15-75 .
Hinge half
2
3 1258C56-3-77 .
Hinge pin
2
4 33811-3 .
Self-locking nut, double- lugged

5 35331-2,6-8 .
Rivet
12
6 3072A-4-10 . Screw 6
7 31I72A-3-10 . Screw
8 24-0107-220 .
Lock
I
  82-01-000-02 . Lock I
9 Purchased item ,
Eye hole
I
10 24-0107-34 .
Bushing


- 1703
- 1704

EFFECTIVITY LEGEND
- up to 1703
- 1704 and on
I
