2 4

.14. 2 4

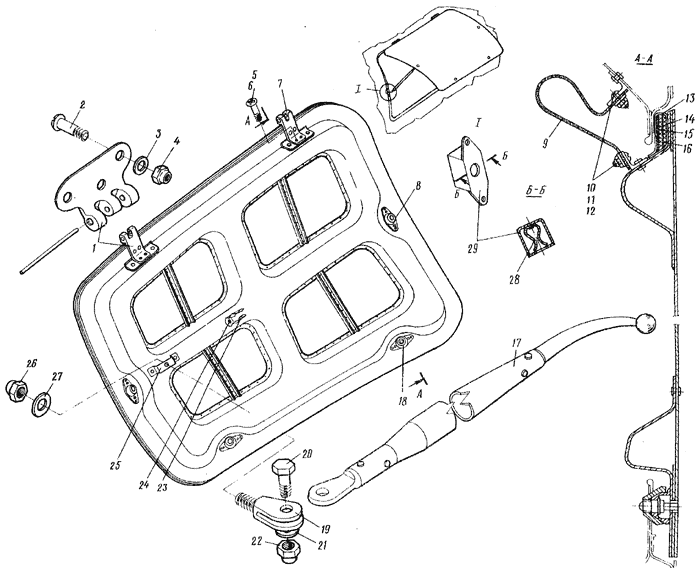

Pig.14. ACCESS DOOR BETWEEN FRAMES 2 AHD 4



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0253-260-1 2 4 (. 2.1, .1, .20)
ACCESS DOOR BETWEEN FRAMES Nos 2 AND 4, RH (See 2.1, Pig.1, Item No.20)
I
  24-0253-260-2 2 4 (. 2.1, .1, .20)
ACCESS DOOR BETWEEN FRAMES Nos 2 AND 4, LH (See 2.1, Pig.l, Item No.20)
I
14 - I 24-0253-138 .
Hinge assy
I
2 263AH-5-I6 .
Bolt
6
3 3402A-1-5-10 .
Washer
6
4 3373A-5 . Nut 6
5 3I83A-4-12 .
Screw
4
6 3382-4 .
Nut
4
7 24-0253-137 .
Hinge assy
I
8 24-0253-125-3 .
Screw-type lock
2
9 99-4-200 .
Bonding jumper
I
10 3I66A-4-11 .
Screw
2
14 - 11 6057056-4,2 .
Washer
I
12 3373A-4 .
Nut
I
13 24-0253-260-25 .
Framing, RH
I
  24-0253-260-26 .
Framing, LH
I
14 24-0253-260-19 .
Gasket, RH
I
  24-0253-260-20 .
Gasket, LH
I
15 24-0253-260-21 .
Gasket, RH
I
  24-0253-260-22 .
Gasket, LH
I
16 24-0253-260-23 .
Gasket, RH
I
  24-0253-260-24 .
Gasket, LH
I
17 24-0380-36-7 .
Support
I
18 24-0253-I25-1 .
Screw-type lock
2
19 24-0253-252 .
Fork
I
20 30I7A-5-I4 .
Bolt
I
21 3402A-I-5-I0 .
Washer
I
22 3373A-5 .
Nut
I
14 - 23 6005C56-4 .
Clamp
I
24 3172A-4-I0 .
Screw
I
25 24-0253-68 .
Box
I
26 3373A-5 .
Hut
I
27 3402A-1-5-I0 .
Washer
I
28 24-0253-69 .
U-clamp
I
29 24-0253-54 .
Reat (base)
I
