-26

.15.

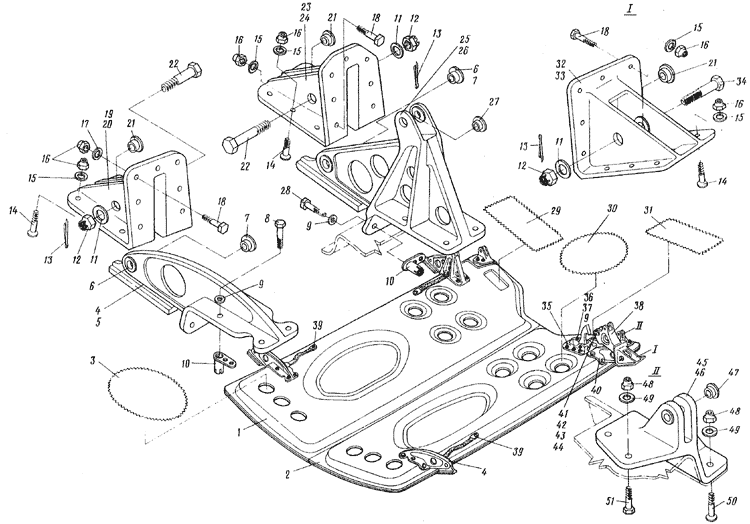

Pig.15. NOSE L.O. BAY DOORS



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0254-50 (. 2.1, .1, .21) HOSE L.G. BAY DOORS (See 2.1 Fig.l, Item Ho.21) I
15 - 1 24-0254-50-1 .
Door, RH
I
2 24-0254-50-2 .
Door, LH
I
3 407AH-90 ..
Washer
7
4 24-0254-158-1 ..
Bracket assy, RH
I
  24-0254-158-2 ..
Bracket assy, LH
I
5 24-0254-158-3 ... Bracket, RH I
  24-0254-158-4 ...
Bracket, LH
I
6 2417A-8-11-5 ...
Bushing
3
7 2417A-8-11-4 ...
Bushing
3
8 3003A-6-20 ..
Bolt
14
9 3401A-1-6-12 ..
Washer
24
10 3382-6 ..
Self-locking nut, single- lugged
20
15 - 11 3401A-2-8-16 .. Washer 4
12 3336A-8 ..
Hut
4
2x15-002
397-66
..
Cotter pin
4
14 3072A-5-16 .. Bolt 24
15 3402A-1-5-10 ..
Washer
24
16 3373-5
Hut
52
I? 3402-0,5-5-10 ..
Washer
28
IS 3003A-5-I4 .. Bolt 28
19 24-0254-177-1 .. Bracket assy, RH I
  24-0254-177-2 ..
Bracket assy, LH

20 24-0254-177-3 ...
Bracket, RH
I
  24-0254-177-4 ...
Bracket, LH
I
21 24I7A-8-11-6 ... Bushing 6
22 49I6A-8-38-4 ..
Bolt
3
23 24-0254-152 ..
Bracket assy
I
15 - 24 24-0254-152-5 ...
Bracket
I
25 24-0254-114 ..
Bracket assy
I
26 24-0254-114-3 ...
Bracket
I
27 4713A-6-8-4 ...
Bushing
2
28 3003A-6-18 ..
Bolt
14
29 24-0254-50-119 ..
Washer
I
30 4074AH-1-150 ..
Washer
8
31 24-0254-50-121
Washer
I
32 24-0254-155 ..
Bracket assy
I
33 24-0254-155-5 ...
Bracket
I
34 4916A-8-52-4 .. Bolt I
35 24-0254-160 .. (. 2.1, .16)
Nose L.H. bay door lock (See 2.1, Pig.16)
I
36 3003A-6-I8 ..
Bolt
14
37 3381A-6 ..
Brut
6
38 24-0254-118 ..
Bracket
I
15 - 39 99AK-11-200 .. Bonding jumper 4
40 24-0254-156 ..
Bracket
I
41 24-0254-141-3 ..
Bolt
I
42 3341A-10 ..
Nut
I
43 3402A-1,5-10-20 ..
WaBher
I
44  2,5x30-002
397-66

Cotter pin
I
45 26-0254-51-1 ..
Bracket assy, RH
I
  26-0254-51-2 ..
Bracket assy, LH
1
4b 26-0254-51-3 ...
Bracket, RH
I
  26-0254-51-4 ...
Bracket, LH
I
47 2417A-6-9-7 ...
Bushing
4
48 3373-6 ..
Hut
4
49 3402A-1-6-12 ..
Washer
8
50 3072A-6-18 ..
Bolt
4
51 3024A-6-1I6 ..
Bolt
4
