-26

.16.

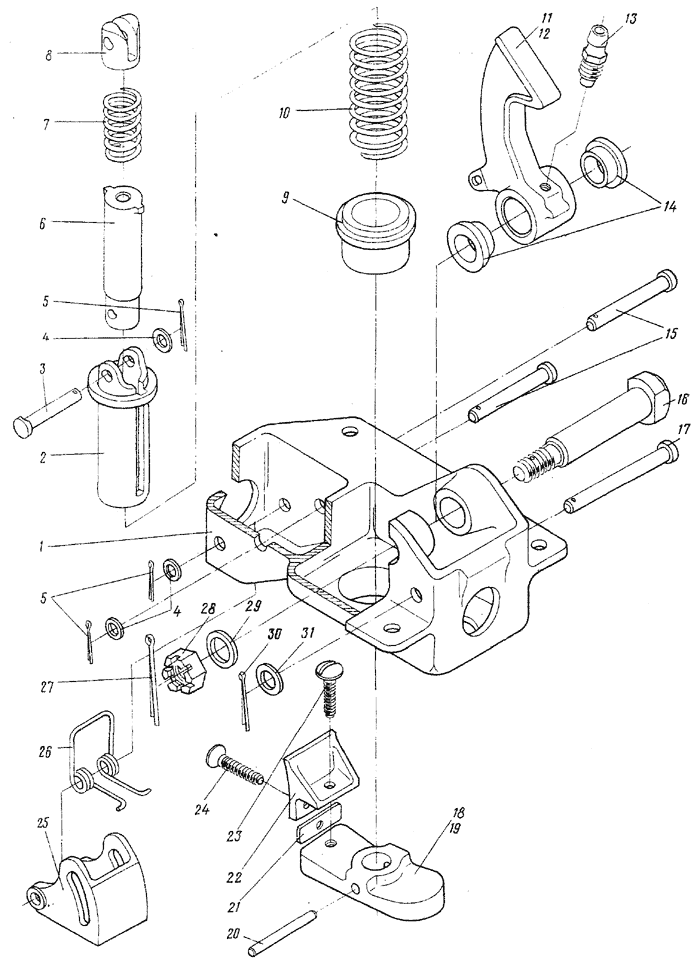

Pig.16. NOSE L.G. BAY DOOR LOCK



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0254-160 (. 2.1 .15, .35)
HOSE L.G. DOOR LOCK (See 2.1, Fig. 15, Item ffo.,35)
I
16 - 1 24-0254-166 .
Body
I
2 24-0254-171 .
Cylinder
I
3 1340C51-5-24-20 .
Pin
I
4 3402A-0,8-9-10 .
Washer
I
5 1,5x10-002
397-66
.
Cotter pin
I
6 24-0254-170 .
Rod
I
7 I9I6A-1-11-28-1 .
Spring
I
8 24-0254-161 .
Pork
I
9 24-0254-163 .
Bushing
I
10 24-0254-172 .
Spring
I
11 24-0254-165 .
Hook
I
12 24-0254-165-3 ..
Hook assy
I
13 2503A-2 ..
Lubricator
I
16 - 14 24-0254-127 ..
Bushing
2
15 I340C51-5-42-38 .
Pin
2
16 24-0254-169 .
Bolt
I A
  24-0254-141-5 .
Bolt
I
17 1340C51-6-58-54,5 .
Pin
I
18 24-0254-168 .
Handle assy
I
19 24-0254-168-7 ..
Handle
I
20 3480A-311p22ax25 ..
Peg
I
21 24-0254-168-5 ..
Gasket
I
22 24-0254-164 ..
Rest
I
23 3172A-3-8 ..
Screw
I
24 3172A-3-7 ..
Screw
2
25 24-0254-167 .
Latch
I
26 24-0254-162 .
Spring
I
27 2,5x30-002
397-66
.
Cotter pin
I
28 3341A-I0 .
Hut
I
16 - 29 3402A-1,5-10-20 .
Washer
I
30 2x12-002
397-66
.
Cotter pin
I
Dz 3402A-1-6-12 .
Washer
I

    - 1310
- 1401

    S?ESCTIVITY LEGEND
    - up to 1310
- 1401 and on
