-26

.17.

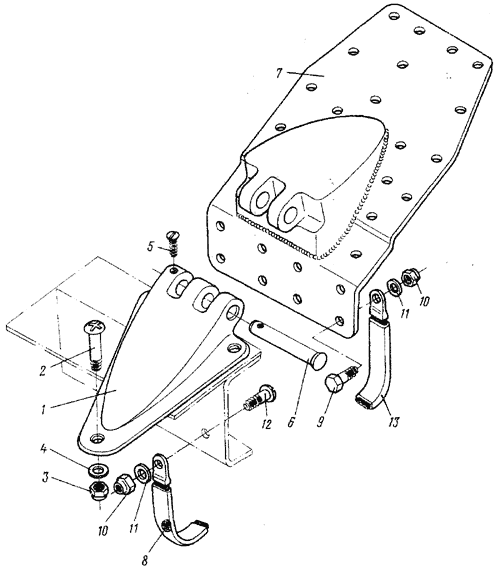

Pig.17. RADOME ATTACHMENT ELEMENTS



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0255-50 (. 2.1, ., .24)
HADOME ATTACHMENT ELEMENTS (See 2.1, Fig.1, Item Mo.24)

17 - 1 24-0255-54-1 .
Bracket, RH
I A
  24-0255-54-2 .
Bracket, LH.
I A
  24-0255-59-1 .
Bracket, RH
I
  24-0255-59-2 .
Bracket, LH
I
2 3088A-6-34 .
Bolt

3 3373A-6 .
Nut
6
4 139AH-6 .
Bolt connection sealing
6
5 3177A-3-10 .
Screw
2
6 1340C51-848 .
Pin
2 A
  1340C51-7-48 .
Pin
2
7 24-0255-78-1 .
Bracket, RH
I A
  24-0255-78-2 .
Bracket, LH
I A
  24-0255-124-1 .
Bracket, RH
I
  24-0255-124-2 .
Bracket, LH
I
17-8 99AH-7-240 .
Bonding jumper
4
9 300IA-4-14 .
Bolt

10 3373A-4 .
Hut
8
11 6057056-4,2 .
Washer
8
12 3166A-4-10 .
Screw

13 24-0255-50-13 .
Tube


- 2110
- 2201

EFFECTIVITY LEGEND
- up to 2110
- 2201 and on
2
