-26

.19. . ( 2 . I)

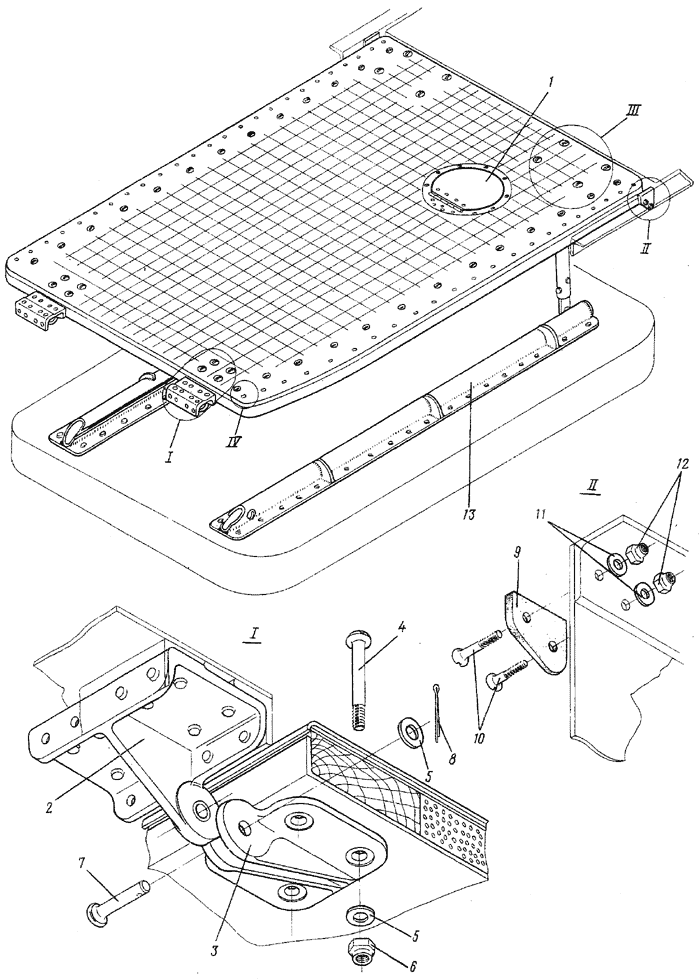

Pig.19. EMERGENCY HATCH DOOR. (Sheet 1 of 2)



.19. . ( 2 . 2)

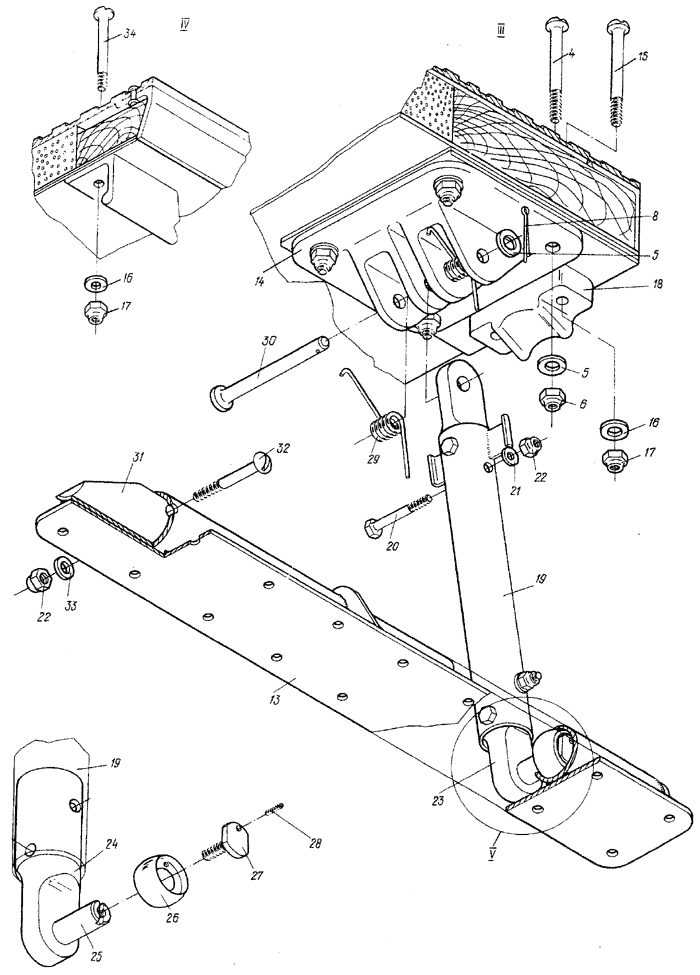

Pig.19. EMERGENCY HATCH DOOR. (Sheet 2 of 2)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0240-300
(. 2.1, .1, .38)
VENTRAL EMERGENCY HATCH DOOR (See 2.1, Pig.1, Item No.38)

19 - 1 574AH-150-1,2 .
Access door
I
2 26-0240-320 .
Bracket
2
3 26-0240-305 .
Bracket
2
4 3051A-6-40 .
Bolt
16
5 3402A-1-6-12 .
Washer
20
6 3373A-6 .
Nut
16
7 1340C5I-6-20-16,5 .
Pin
2
8 2x12-002
397-67
.
Cotter pin
4
9 26-0240-337-1 .
Retainer, RH
I
  26-0240-337-2 .
Retainer, LH
I
10 3177A-3-14 .
Screw
4
11 3402A-1-3-7 .
Washer
4
12 3373-3 .
Nut
4
19 - 13 26-0240-302-1 .
Track, RH
I
  26-0240-302-2 .
Track, LH
I
14 26-0240-303 .
Bracket
2
15 3051A-4-44 . Bolt 4
16 3402A-1-4-8 .
Washer
38
17 3373A-4 .
Nut
38
18 26-0240-334 .
Rest
2
19 26-0240-310-1 .
Control rod, RH
I
  26-0240-310-2 .
Control rod, LH
I
20 3024A-5-28 ..
Bolt
8
21 1273C50-1-5-22 ..
Washer
8
22 3373-5 ..
Nut
8
23 26-0240-330 ..
Base aesy
2
24 26-0240-330-3 ...
Base
2
25 26-0240-315 ...
Axle
2
19 - 26 26-0240-313 ...
Roller
2
27 26-0240-316 ...
Screw
2
28 97IA50-3-4 ...
Screw
2
29 26-0240-322-1 .
Spring, RH
2
  26-0240-322-2 .
Spring, LH
2
30 1340C51-6-52-48 .
Pin
2
Dz 26-0240-331 .
Rest
2
32 3166A-5-30 .
Screw
2
33 3373-5 .
Nut
2
34 3172A-4-34 .
Screw
34
