-26


2.



.1.

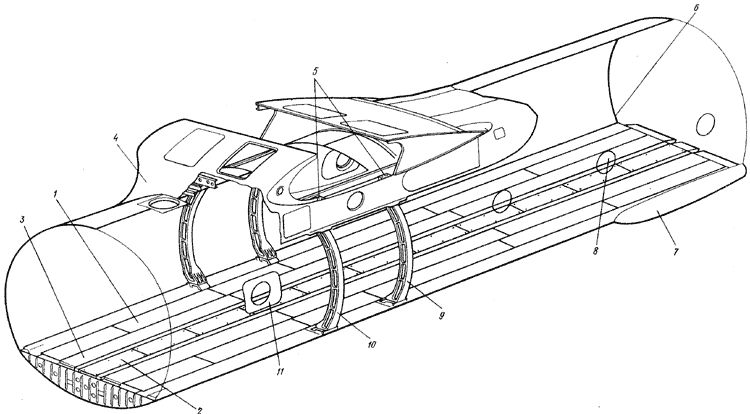

Pig.l. FUSELAGE MIDGLE SECTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    2.
FUSELAGE MIDDLE SECTION

  26-0300-0
FUSELAGE MIDDLE SECTION
I
1 - 1 26-0322-300 . (. 2.2, .2)
Load-carrying flooring (See 2.2, Fig.2)
I
2 26-0322-100 . (. 2.2, .2)
Central flooring (See 2.2, Fig-2)
I
3 26-0322-200 . (. 2.2, .2)
Side flooring (See 2.2, Fig.2)
I
4 26-0380-0 . (. 2.2, .3)
Wing center section-to-fuselage fairing (See 2.2, Fig.3)
I
5 24-0100-0 . (. 2.2, .4)
Wing centre section-to-Fuslage joint (See 2.2, Fig.4)
I
6 26-0393-0 . 33
Beam joint at frame No.33
I
7 26-0360-0 .
Side rail fairing
I
8 26-0350-0 . (. 2.2, .5)
Cargo cabin window (See 2.2,
I
1-9 24-0120-0 . 20
Frame . 20
I
10 24-0117-0 . 17
Frame No.17
I
11 24-0355-0 . (. 2.2, .6)
Side emergency hatch framing (See 2.2, Pig.6)
I
