-26



.4.

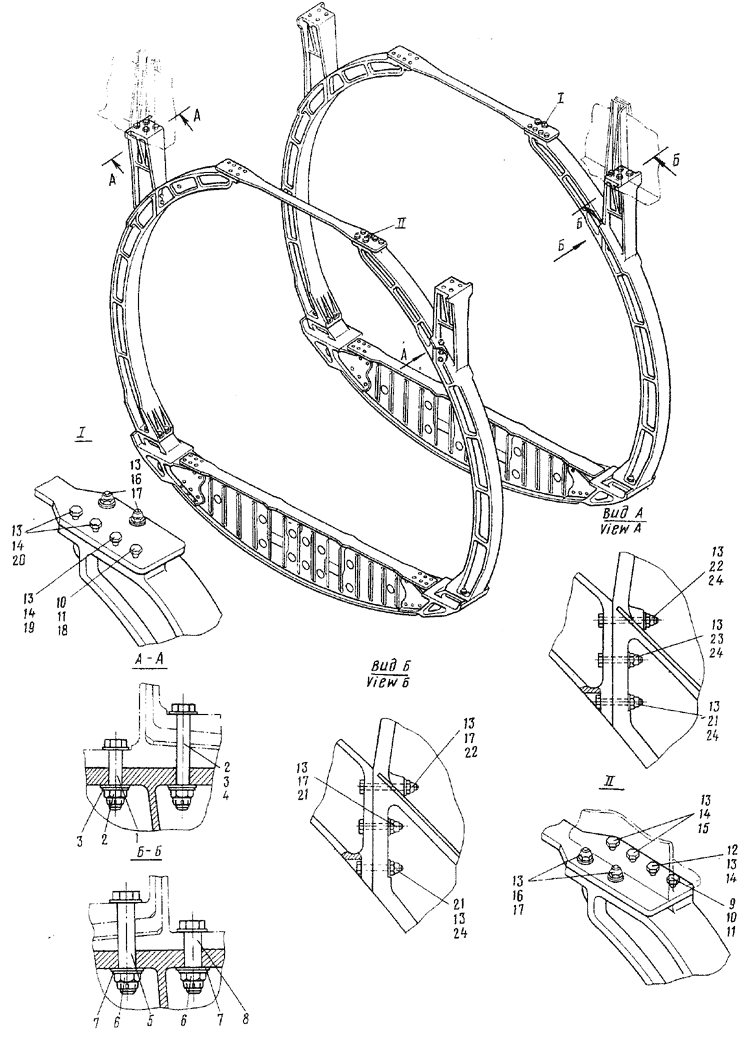

Pig.4. WHIG CEHTRE SECTIOH-TO-FOSELAGE JOINT



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0100-10 (. 2.2, .1, .5)
WING CENTRE SECTION-TO-FUSELAGE JOINT (See 2.2, Fig.l, Item . 5)

4-1 215AH-16-60 .
Bolt
4
2 2I6AH-16 .
Nut
8
3 226AH-16 .
Washer
8
4 215AH-16-92 .
Bolt
4
5 215AH-20-102 .
Bolt
4
6 216AH-20 .
Nut
8
7 226-20 .
Washer
8
8 215AH-20-74 .
Bolt
4
9 24-0117-3-I5 .
Bolt
2
10 3373A-10 .
Nut
4
11 24-0117-5-2 .
Washer
4
12 24-0117-3-I3 .
Bolt
2
13 3373-8 .
Nut
44
4-14 24-0117-5-I .
Washer
12
15 24-0117-3-11 .
Bolt
4
16 302IA-8-50 .
Bolt
8
17 3402A-1,5-8-16 .
Washer
20
18 24-0117-5-16 .
Bolt
2
19 24-0117-3-14 .
Bolt
2
20 24-0117-3-2 .
Bolt
4
21 3021A-8-38 .
Bolt
12
22 3021A-8-54 .
Bolt
8
23 3021A-8-36 .
Bolt
4
24 3402A-2-8-16 .
Washer
12
