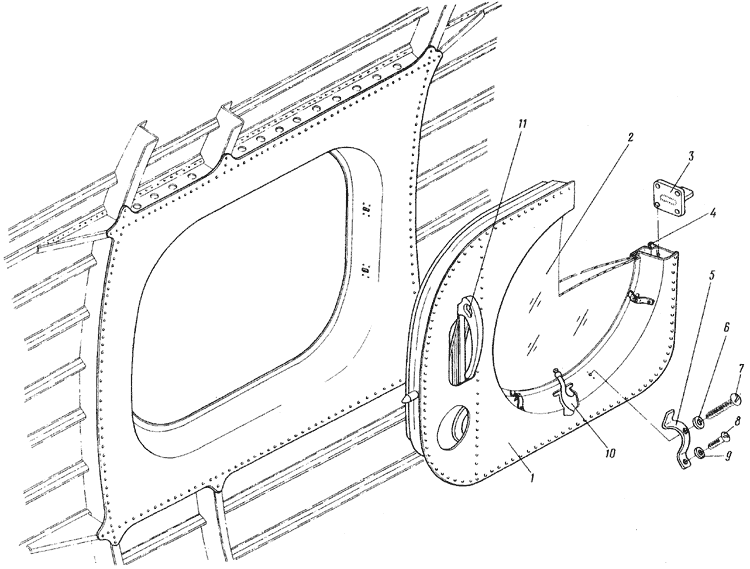

Pig.6. SIDE EMERGENCY HATCH FRAMING



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-0355-0 (. 2.2, .1, .11)
SIDE EMERGENCY HATCH FRAMING (See 2-2, Pig.l, Item No.11)
I
6-1 24-0355-60-1 . ,
Side emergency hatch cover, RH
I
  24-0355-60-2 . ,
Side emergency hatch cover, LH
I
2 24-0350-50-1 ..
Glass panel
I
3 24-0355-391 ... Retainer 2
4 24-0370-206 ..
Sealing section
I
5 24-0350-18 ..
Spring
8
6 24-0350-11 ..
Washer
8
7 24-0350-17 ..
Screw
8
8 3I66A-5-I4 ..
Screw
8
9 3402A-0,8-5-10 ..
Washer
8
10 24-0350-110 ..
Rubber tube
I
11 24-0355-300 .. (. 2.2, .7)
Side emergency hatch control mechanism (See 2.2, Pig.7)
I
