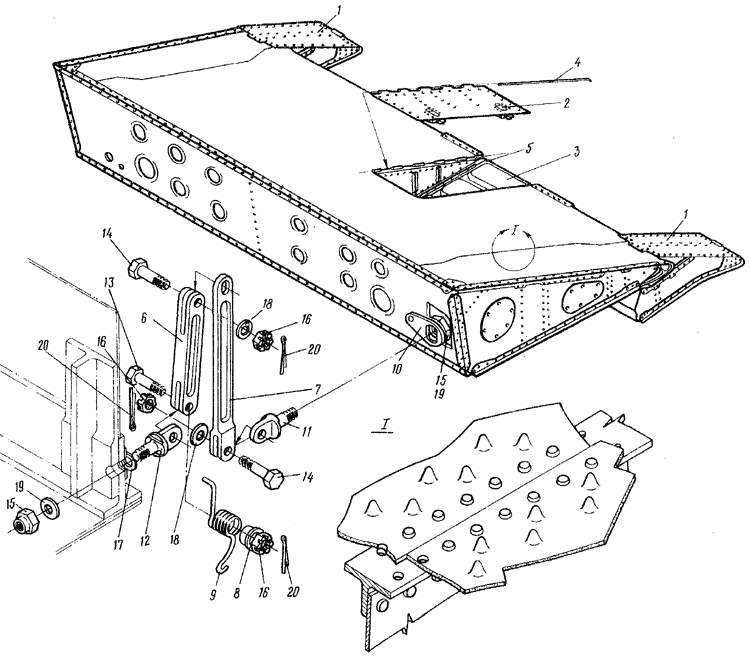

Fig.5. RAMP EXTENSION. RAMP EXTENSION TURK RESTRICTOR



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0462-500 (. 2.3, .1, .10)
RAMP EXTENSION (See 2.3, Pig.l, Item No.10)
I
5 - 1 26-0462-556 .
Ramp extension shoe
2
2 26-0462-590-10 . ,
Ramp extension access hatch cover, top
I
3 26-0462-590-100 . ,
Ramp extension access hatch cover, bottom
I
4 145049-2,5-490 ..
Hinge pin
I
5 145049-2,5-545 ..
Hinge pin
I
  26-0462-501 (. 2.3, .1, .10)
RAMP EXTENSION TURK RESTRICTOR (See 2.3, Fig1, Item No.lO)
I
6 26-0462-503 .
Bellcrank
2
7 26-0462-504 .
Bellcrank
2
8 26-0462-507 . Bushing 2
9 26-0462-508-1 .
Spring, RH
I
  26-0462-508-2 .
Spring, LH
I
5-10 26-0462-509 .
Plate
2
11 26-0462-511 .
Lug
2
12 26-0462-512 .
Lug
2
13 3027A-8-32-3.5 .
Bolt
2
14 3027A-8-22-3.5 .
Bolt
4
15 3373A-10 .
Hut
4
16 3336A-8 .
Hut
6
17 3402A-1,5-10-18 .
Washer
2
18 3402A-1,5-8-14 .
Washer
4
19 3402-2-10-20 .
Washer
k
20 2x20-002
397-66
.
Cotter pin
6
