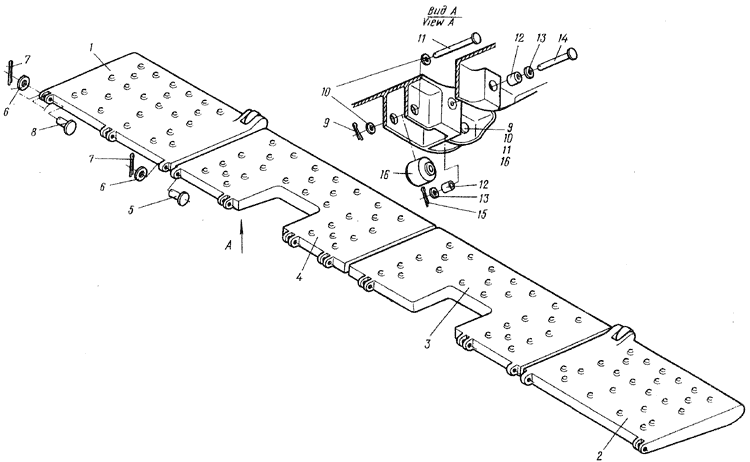

Fig. 7 BRIDGE



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0462-600 (. 2.3, .1, .15)
BRIDGE (See 2.3, Fg.l, Item .15)
I
7 - 1 26-0462-640-1 .
Bridge, RH
I
2 26-0461-640-2 .
Bridge, LH
I
3 26-0462-618 .
Bridge
I
4 26-0462-617 .
Bridge
I
5 1340C51-8-32-28,5 .
Pin
2
6 3402A-1,5-8-16 .
Washer
10
7 2,5x15-002
397-66
.
Cotter pin
10
8 1340C51-8-22-19 .
Pin
8
9 1,5x10-002
397-66
.
Cotter pin
4
10 3402A-1,5-5-10 .
Washer
8
11 134QC5I-5-45-41 .
Pin
4
12 26-0462-603 .
Bushing
6
13 3402-2,5-6-14 .
Washer
6
14 1340C51-6-26-22,5 ,
Pin
3
7 - 15 2x12-002
397-66
.
Cotter pin
3
16 26-0462-620 .
Roller
4
