.9.

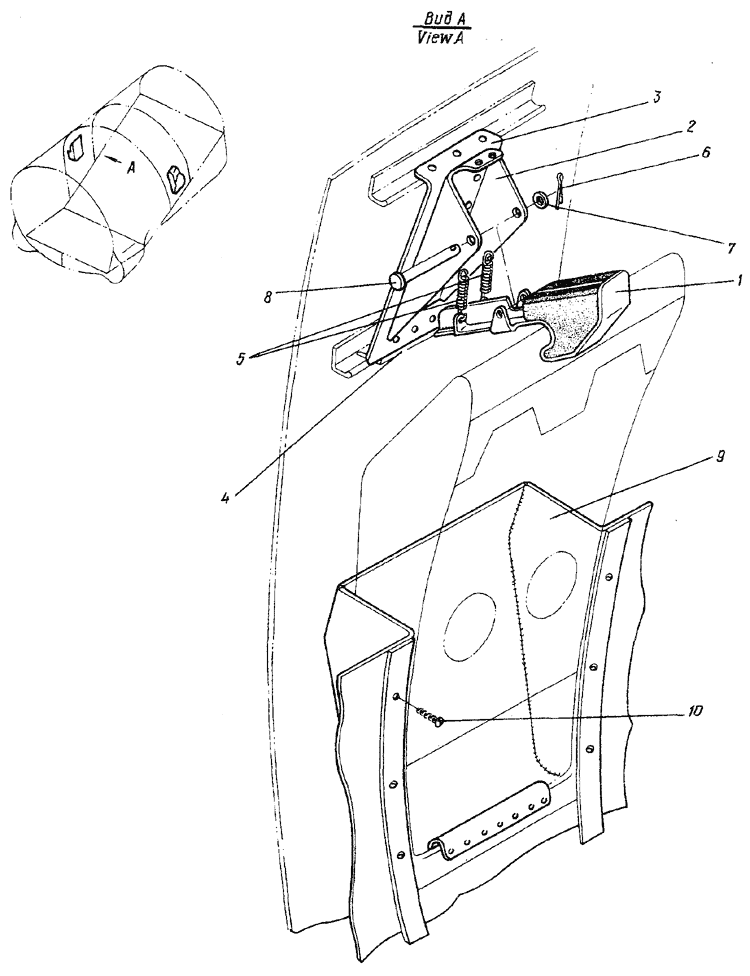

Fig.9. RECESS FOR ATTACHMENT OF RAMP EXTEHSIOH SHOE



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0462-555 ( )
RECESS FOR ATTACHMENT OP RAMP EXTENSION SHOE (RAMP EXTENSION SHOE INSTALLATION)
I
9 - 26-0462-557 .
Latch
2
2 26-0462-555-3 .
Bracket
2
3 26-0462-555-5 .
Curved section, RH
I
  26-0462-555-6 .
Curved section, LH
I
4 26-0462-555-7 .
Section
2
5 1919A-1,5-10-60 .
Spring
4
6 1,5x10-002
397-66
.
Cotter pin
4
7 3402A-1-5-I0 .
Washer
4
8 1340C51-5-50-46 .
Pin
4
9 26-7901-124-1 .
Recess
I
  26-7901-124-2 .
Recess
I
10 3166A-4-18 .
Screw
20
