-26

.2.

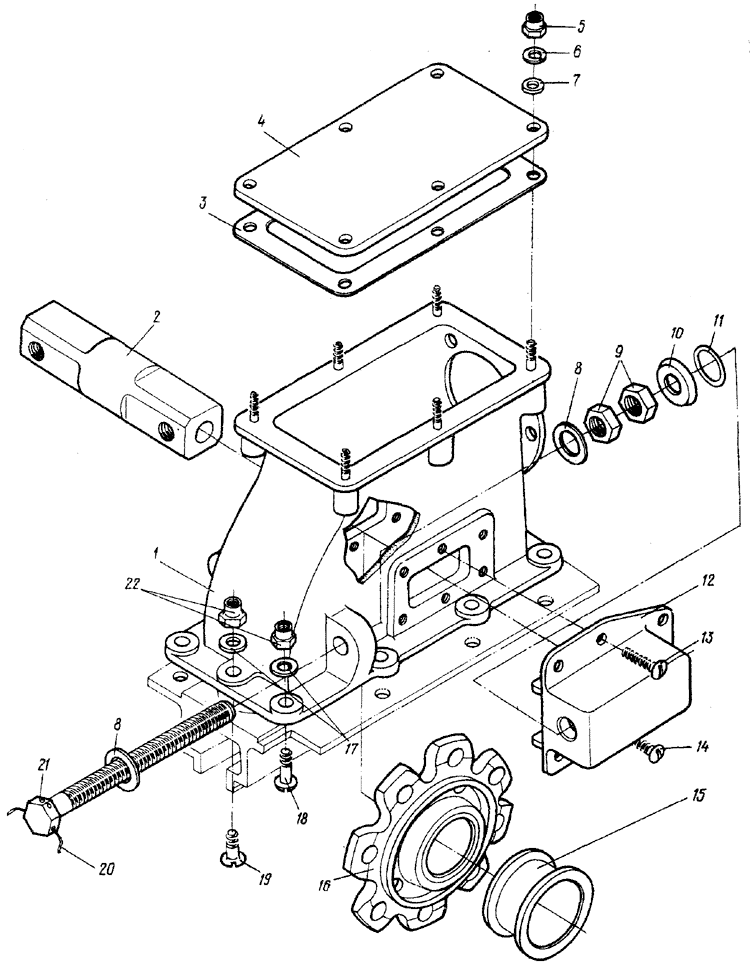

Fig.2. RAMP DRIVE DRIVES SPROCKET



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-200 (. 2.4, .1, .1)
RAMP DRIVEN DRIVEN SPROCKET (See 2.4, Fig.l, Item No.l)
I
2 - 1 26-0461-201 .
Body
I
2 26-0461-204 .
Axle
I
3 26-0461-206 .
Gasket
I
4 26-0461-205 .
Top cover
I
5 3302A-5 .
Hut
6
6 5H65 02 9
6402-70
.
Spring washer
6
7 3402A-0,8-5-10 .
Washer
6
8 3402A-1,5-12-20 .
Washer
4
9 3310A-12 .
Nut
4
10 140AH-12 .
Body
2
11 141-12 .
Washer
2
12 26-0461-203-1 .
Cover, RH
I
  26-0461-203-2 .
Cover, LH
I
13 3172A-5-10 .
Screw
8
2 - 14 3166A-4-10 .
Screw
4
15 26-0461-208 .
Bushing
I
16 26-0461-209 .
Sprocket
I
17 3402A-1-6-12 ..
Washer
10
18 3051A-6-22 .
Bolt
8
19 3083A-6-20 .
Bolt
2
20 1,4
792-67
.
Locking wire

AR

21 26-0461-207 .
Screw
2
22 3373-6 .
Hut
10
