-26

.3.

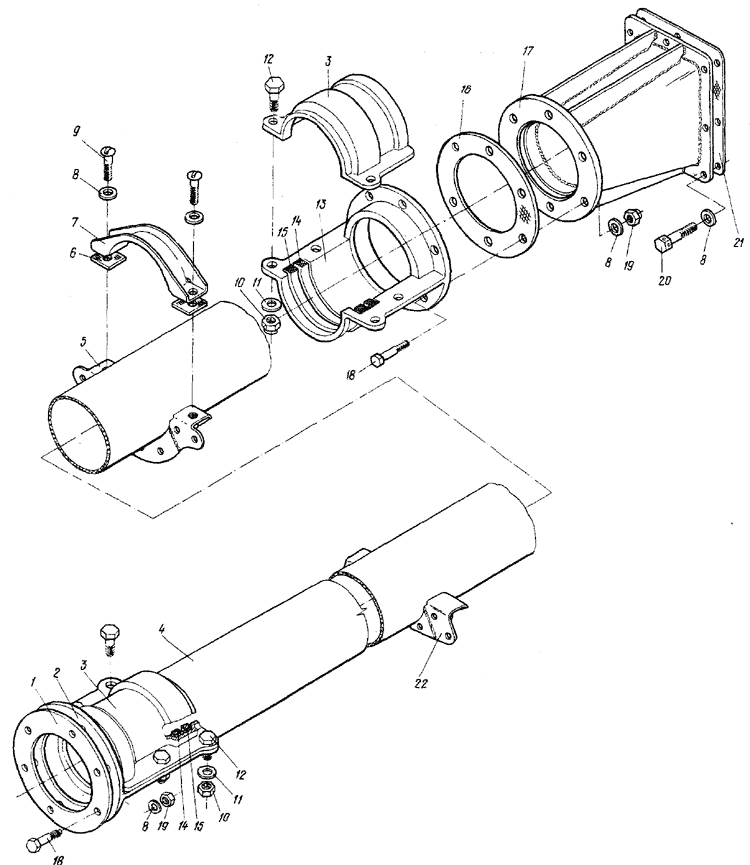

Fig.3. PROTECTIVE SHROUD INSTALATION INSTSLSTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-150 (, 2.4, .1, .2)
PROTECTIVE SHROUD INSTALLATION (See 2.4, Pig , Item No. 2)

3 - 1 26-0461-153 .
Gasket
I
2 26-046I-I82-3 .
Coupling half, flanged
I
3 26-0461-183 .
Coupling half, detachable
2
4 26-0461-180 .
Shroud
I
5 26-0461-157 .
Bracket
5
6 24-7911-501 .
Washer
12
7 26-0461-154 .
Holder
6
8 3402A-0,8-5-10 .
Washer
32
9 3166A-5-16 .
Screw
12
10 3373A-6 .
Nut
8
11 3402A-0,8-6-12 .
Washer
8
12 3003A-6-18 .
Bolt
8
13 26-0461-182-5 .
Coupling half, flanged
I
14 26-0461-181 .
Ring
4
3 - 15 26-0461-150-15 ,
Gasket
4
16 26-0461-158 .
Gasket
I
17 26-0461-170 .
Body
I
18 3003A-5-I8 .
Bolt
12
19 3373A-5 .
Nut
12
20 3003-5-12--182AT-1 .
Bolt
8
21 26-0461-159 .
Gasket
I
22 26-0461-156 .
Bracket
I
