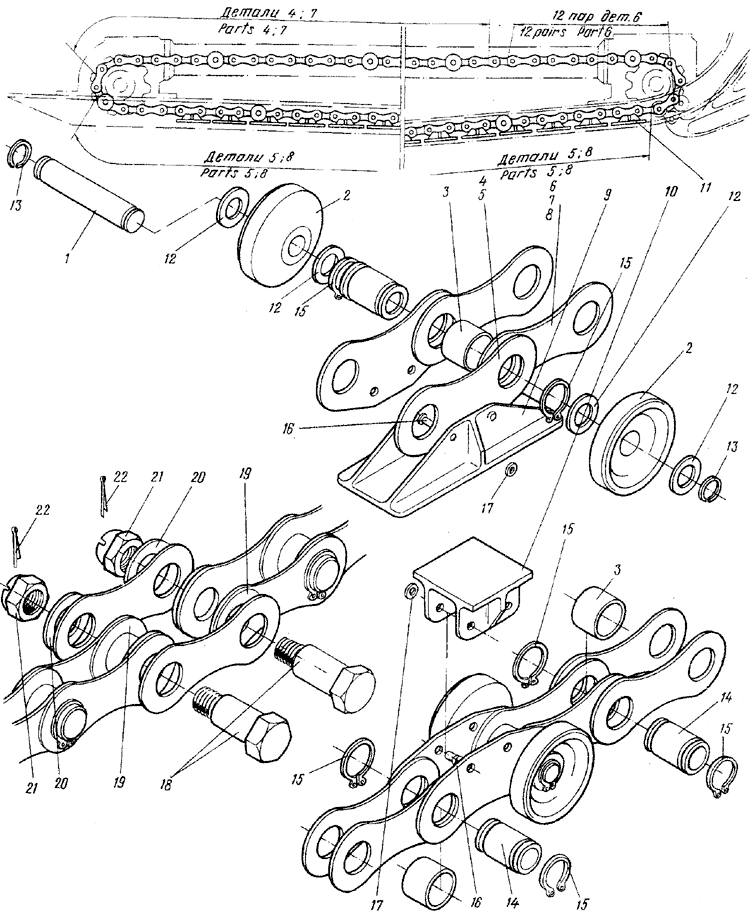

Fig. 4. HAULING CHAIN



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-350 (. 2.4, 1, .3)
HAULING CHAIN (See 2.4, Fig.l, Item No.3)
I
4 - 1 26-0461-309 .
Axle
24
2 26-0461-306 .
Holler
48
3 26-0461-353 .
Bushing
195
4 26-0461-355-5 .
Link
22
5 26-0461-355-7 .
Link
94
6 26-0461-357-3 .
Link
24
7 26-0461-357-5 .
Link
150
8 26-0461-357-7 .
Link
100
9 26-0461-307 .
Cover
45
10 26-0461-308 .
Retainer
12
11 26-0461-315 .
Cover
I
12 3401A-1-9-18 .
Washer
26
13 3420A-I0 .
U-washer
48
  26-0461-352 .
Axle
191
15 563M55-I4 .
Locking ring
382
16 3505A-3-8 .
Rivet
232
17 3401A-0,5-3-8 .
Washer
232
18 26-0461-359 .
Bolt
3
19 340IA-2-I4-28 .
Washer
6
20 3402A-1,5-10-20 .
Washer
3
21 3341A-10 .
Nut
3
22 2,5x25-002
397-66
.
Cotter pin
3
