-26

.

.5. .
. ( 2 . I)

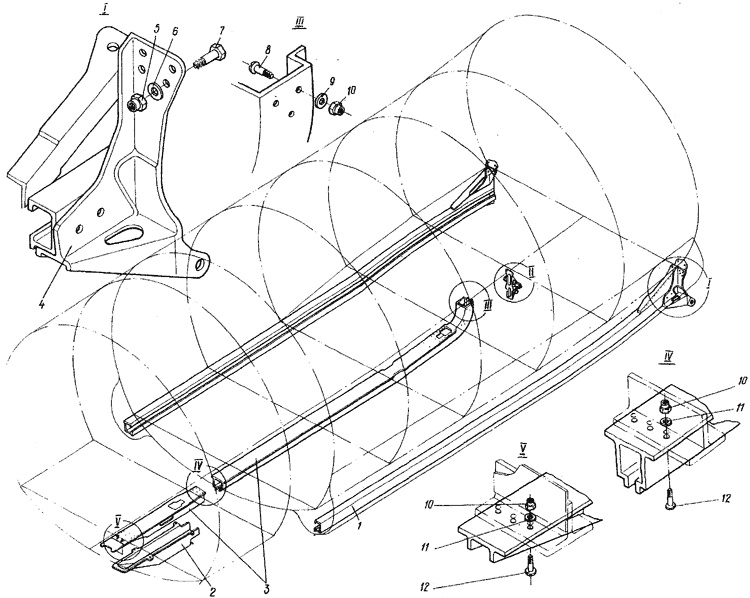

Fig.5. FRONT RAIL ATTACHMENT ELEMENTS. RAMP CLOSED POSITION
SWITCH MECHANISM. (Sheet 1 of 2)



.5. .
, ( 2 . 2)

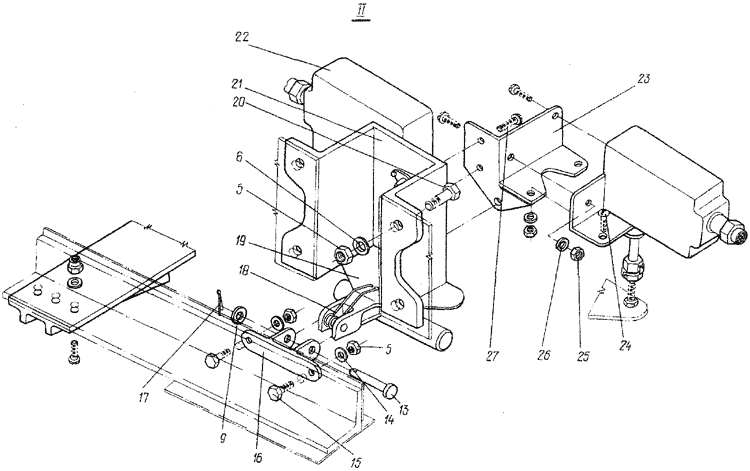

Fig.5. FRONT RAIL ATTACHMENT ELEMENTS. JUMP CLOSED POSITION
SWITCH MECHANISM. (Sheet 2 of 2)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-60 (. 2.4, .1, .4)
PR HAIL ATTACHMENT ELEMENTS (See 2.4, Item No.4)
I
5 - 26-0461-104-1 . ,
Rear rail, RH
I
  26-0461-I04-2 . ,
Rear rail, LH
I
2 26-0461-58 .
Pairing
I
3 26-0461-56 .
Front rail
I
  26-0461-102-1 .
Bracket, LH
I
  26-0461-102-2 .
Bracket, RH
I
5 3374A-6 .
Hut
14
6 3402A-1-6-12 .
Washer
12
7 3024A-6-18 .
Bolt
8
8 3083A-5-18 .
Bolt
6
9 3402A-0,8-5-10 .
Washer
6
10 3373-5 .
Nut
60
11 34021-1,5-5-10 .
Washer
54
12 3059-5-20 .
Bolt
54
  26-0461-710 (. 2.3, .1, .5)
RAMP CLOSED POSITION SWITCH MECHANISM (See 2.3, Fig.l, Item No.5)
I
5-13 1340C51-5-32-28 .
Pin
I
14 3402A-1I,5-6-12 .
Washer
2
15 3024A-6-24 .
Bolt
2
16 26-0461-711 .
Bracket
I
17 1,6x10-002
397-66
.
Cotter pin
I
18 26-0461-703 .
Spring
I
19 26-0461-702 .
Bellcrank
I
20 3024A-6-I6 .
Bolt
4
21 26-0461-709 .
Bracket
I
22 -702 .
Limit switch
2
23 26-0461-708-1 .
Bracket, RH
I
  26-0461-708-2 .
Bracket, LH
I
24 3I66A-4-12 .
Screw
8
5-25 3373A-4 .
Nut
8
26 34011-0,5-4-8 .
Washer
8
27 3166A-6-14 .
Screw
4
