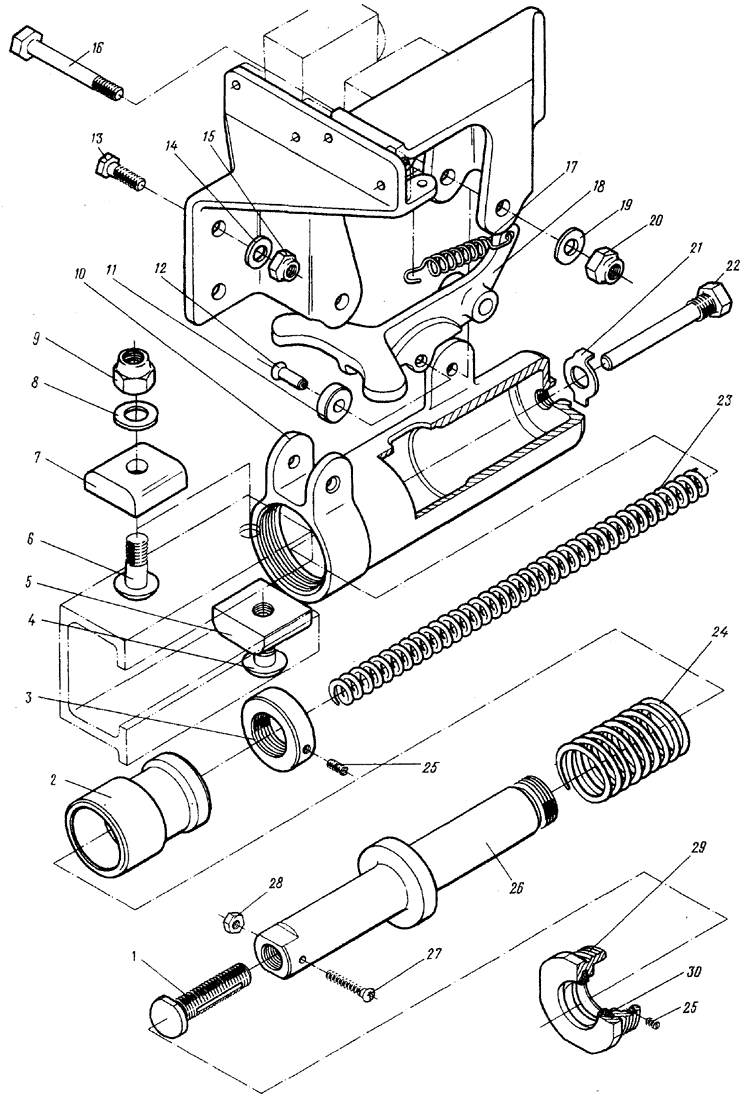

Fig.6. WASHING MECHANISM OF RAMP LOWERED POSITION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-110-1 , (. 2.4, .1, .6)
WASHING MECHANISM OP RAMP LOWERED POSITION, RH (See 2.4, Fig.l, Item No.6)
I
  26-0461-110-2 , (. 2.4, .1, .6)
WARNING MECHANISM OP RAMP LOWERED POSITION, LH (See 2.4, Fig.l. Item No.6)
I
6 - 1 26-0461-119 .
Screw
2
2 26-0461-128 .
Slide block
2
3 26-0461-120 .
Nut
2
4 26-0461-138 .
Bolt
2
5 26-0461-129 .
Rest
2
6 3088A-8-26 .
Bolt
2
7 26-0461-139 .
Rest
2
8 3402A-1,5-8-16 .
Washer
2
9 3374A-8 .
Nut
2
10 26-0461-112 .
Body
2
6 - 11 26-0461-115 .
Holler
2
12 26-0461-116 .
Pin
2
13 3017A-5-I4 . Bolt 8
14 3402A-0,8-5-10 .
Washer
8
15 3373A-5 .
Hut
8
16 3017A-6-42 .
Bolt
4
17 1920A-1-9-43 .
Spring
2
18 26-0461-114 .
Lever
2
19 3402A-1-6-12 .
Washer
4
20 3374-6 .
Hut
4
21 3455-8 .
Lock washer
2
22 26-0461-124 .
Peg
2
23 6567-2.5-13-170-11 .
Spring
2
24 6567A-3-25-38-11 .
Spring
2
25 3221A-4-6 .
Screw
4
26 26-0461-137 .
Rod
2
6 - 27 3166A-3-16 .
Screw
2
28 3320-3 .
Hut
2
29 26-0461-127 .
Cover
2
26-0461-122 .
Ring
2
