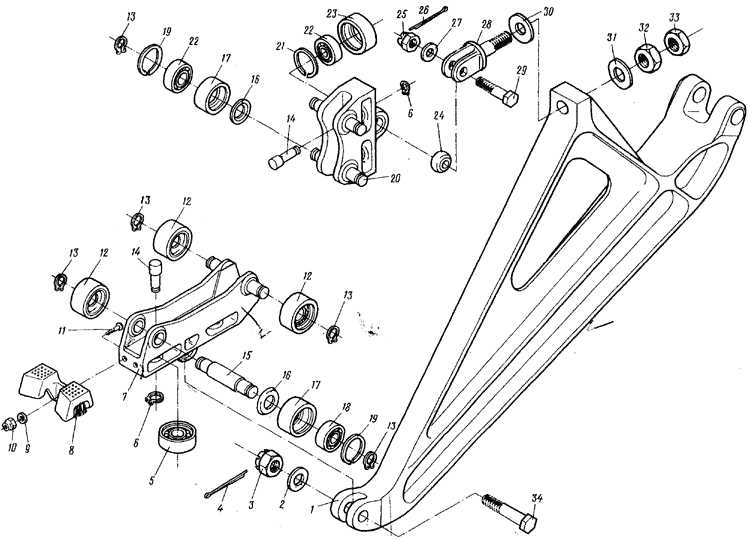

Fig.7. RAMP ATTACHMENT BRACKET



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-400 (. 2.4, .1, .8)
RAMP ATTACHMENT BRACKET (See 2.4, Fig.l, Item Ho.8)
I
7 - 1 26-0461-400-5 .
Bracket
I
2 3402A-15-12-22 .
Washer
I
3341A-12
.
Hat

4 2,5x35-002
397-66
.
Cotter pin
I
5 26-0461-445 .
Thrust roller
2
6 2018C53-8 .
U- washer
8
7 26-0461-427 .
Front carriage body
I
8 26-0461-423 .
Cleaner
I
9 3401A-1-5-10 .
Washer
I
10 3373A-5 .
Nut
I
11 305IA-5-15 .
Bolt
I
12 26-0461-448 .
Running roller
4
13 563M55-I2 .
Looking ring
4
7 - 14 26-0461-447 ' .
Pin
2
15 26-0461-422 .
Axle
I
16 26-0461-426 . Protective washer 4
I? 26-0461-449 .
Bander
8
18 1201 . ( 100/5)
Bearing (supplied according to 100/5)
8
19 564M55-32 .
Locking ring
8
20 26-0461-437 .
Rear carriage body
I
21 564M55-22 . Locking ring 4
22 1008 . ( 100/5)
Bearing (supplied according to 100/5)
4
23 26-0461-446 .
Bander
4
24 -12 . ( 100/5)
Bearing (supplied according to 100/5)
I
25 3341A-12 .
Nut
I
26 2,5x35-002
397-66
.
Cotter pin
I
7-27 3402A-1,5-12-22 .
Washer
I
28 26-0461-409 .
Pork
I
29 3027A-12-30-4 .
Bolt
I
30 26-0461-404 .
Washer
I
31 3402A-1,5-12-22 .
Washer
I
32 3302A-12 .
Nut
I
33 3320A-12 .
Nut
I
34 3027A-12-40-4 .
Bolt
I
