-26

.8. . ( 2 . I)

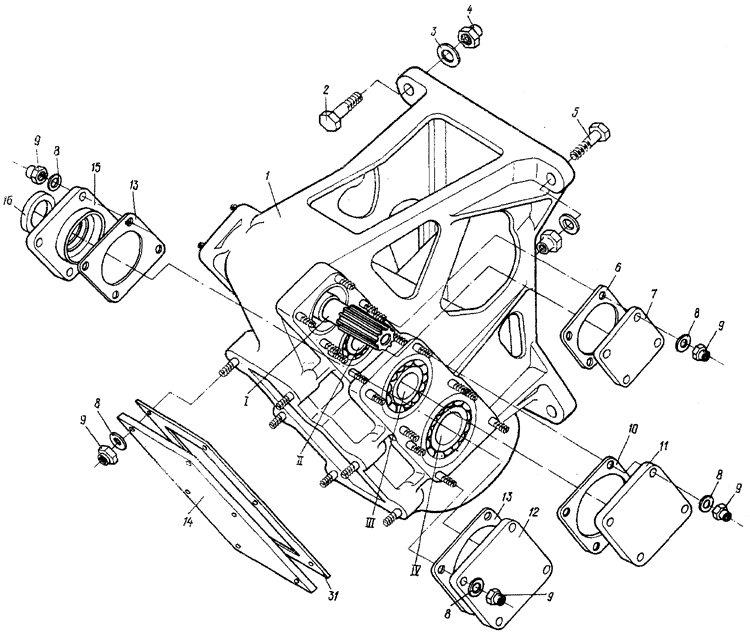

Fig.S. RAMP DRIVE REDUCTIOH GEAR. (Sheet 1 of 2)



.8. . ( 2 . 2)

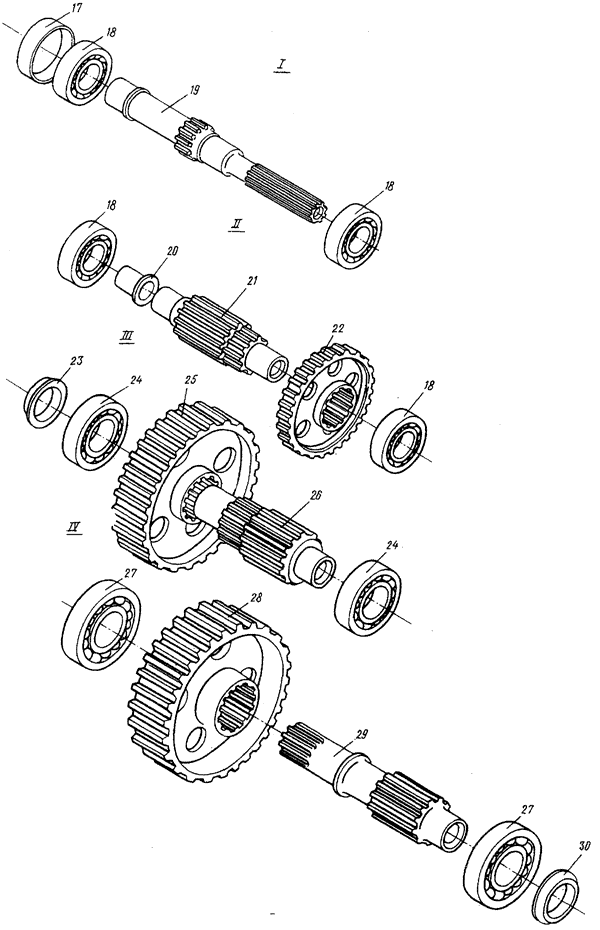

Fig.8. RAMP DRIVE REDUCTION GEAR. (Sheet 2 of 2)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-510 (. 2.4 .1, .9)
RAMP DRIVE REDUCTION GEAR (See 2.4, Fig.l, Item No.9)
I A
  26-046I-5I0A
RAMP DRIVE REDUCTION SEAR
I
8 - 1 26-0461-533 .
Body
I
2 3021A-8-46 .
Bolt
I
3 3402A-1,5-8-16 .
Washer
4
k 3373A-8 .
Nut
4
5 3021A-8-38 .
Bolt
3
6 26-0461-528 .
Gasket
6
7 26-0461-524 .
Cover
2
8 3402A-1-6-12 .
Washer
30
9 3374-6 .
Nut
30
10 26-0461-529 .
Gasket
6
11 26-0461-525 .
Cover
2
12 26-0461-526 .
Cover
I
8 - 13 26-0461-530 .
Gasket
6
14 26-0461-512 .
Cover
I
15 26-0461-527 .
Cover
I
16 26-0461-532 . Sealing I
I? 26-5615-14 .
Bushing
I
18 20422 . ( 100/3)
Bearing (supplied according to 100/3)
4
19 26-0461-563 . -
Gear shaft
I
20 26-0461-520 .
Bushing
I
21 26-0461-515 . -
Gear shaft
I
22 26-0461-564 .
Gear
I
23 26-0461-521 .
Bushing
I
24 206-2 . ( 100/3)
Bearing (supplied according to 100/3)
2
25 26-0461-566 .
Gear
I
26 26-0461-567 . -
Gear shaft
I
8 - 27 22071 . ( 100/3)
Bearing (supplied according to 100/3)
2
28 26-0461-568 .
Gear
I
29 26-0461-519 . -
Gear shaft
I
30 26-0461-522 . Bushing I
31 26-0461-531 .
Gasket


A - 1610
- 1701

EFECTIVTTY LEGEND
- up to 161
- 1701 and on
