-26

.9.

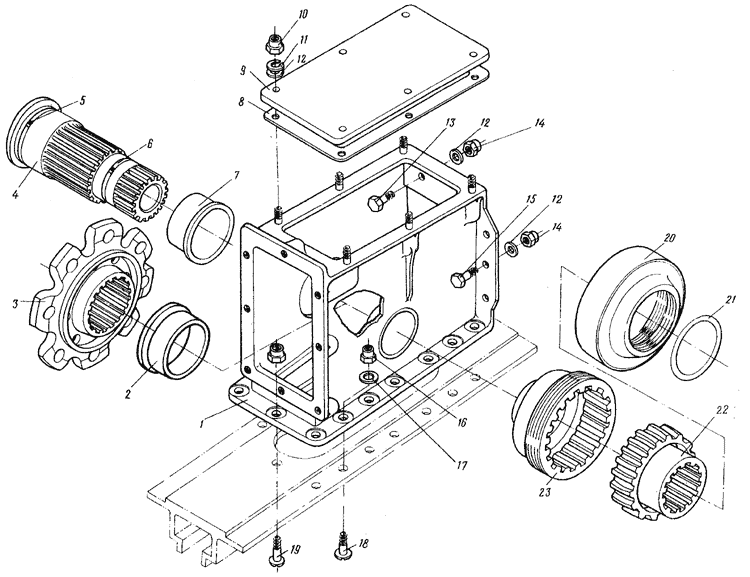

Fig.9. RAMP DRIVE DRIVIHG SPROCKET



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-0461-250 . (. 2.4, . I, .10)
RAMP DRIVE DRIVING SPROCXET (See 2.4, Pig. 1, Item Ho.10)
I
9 - 1 26-0461-261 .
Body
I
2 26-0461-255 .
Bushing
I
3 26-0461-259 .
Sprocket
I
4 26-0461-262 .
Shaft
I
5 2186A-26-2 .
Sealing ring
I
6 2186A-23-2 .
Sealing ring
I
7 26-0461-254 .
Bushing
I
8 26-0461-257 .
Gasket
I
9 26-0461-256 .
Cover
I
10 3302A-5 .
Nut
6
11 5H65 02 9
6402-70
.
Spring washer
6
12 3402A-0,8-5-10 .
Washer
14
13 3003A-5-18 .
Bolt
2
14 3373-5 .
Nut
2
15 3003-5-22 .
Bolt
6
16 3373-6 .
Nut
15
9 - 17 3402A-1-6-12 .
Waaher
15
18 1008-6-26 .
Bolt
12
19 4947A-6-24 .
Bolt
2
20 26-0461-553 .
Cover
I
21 26-0461-532-3 .
Packing
I
22 26-0462-551 .
Toothed buahing
I
23 26-0461-552 .
Toothed race
I
