-26

.7.

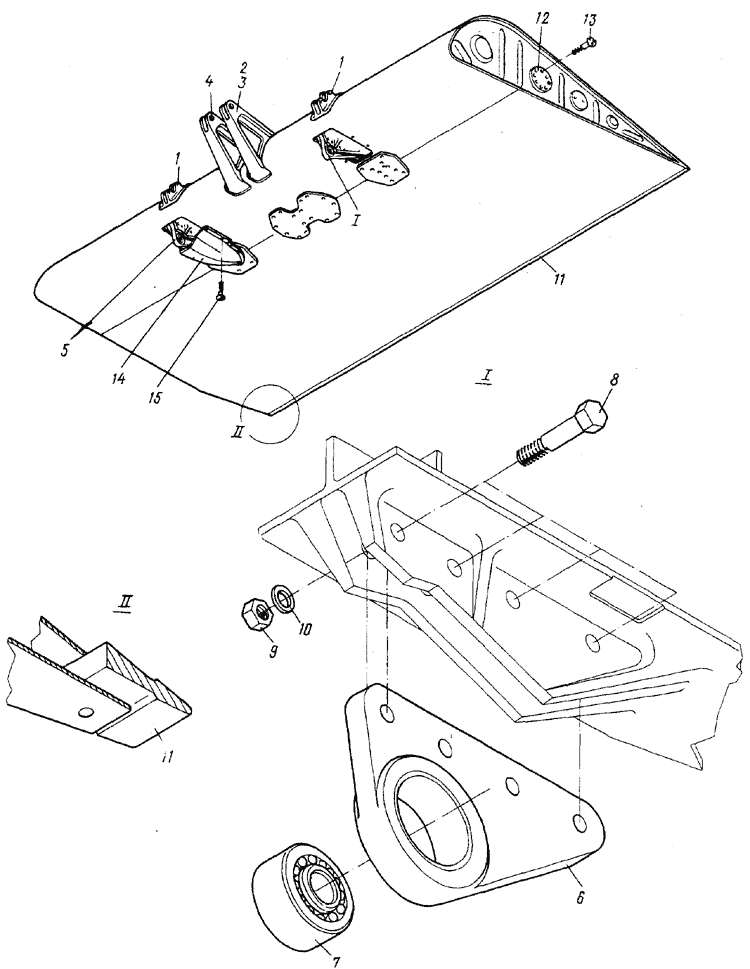

Fig.7. WING CEUTHE SECTIOH BLAP



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-38I0-130-1 , (. 3.2, , . 5) WING CENTRE SECTION FLAP, RH (See 3-2, Fig.l, Item No.5)
  26-3810-130-2 , (. 3.2, . I, . 5)
WING CENTRE SECTION FLAP, LH (See 3.2, Fig.1, Item No.5)

7 - 1 24-3810-38 .
Bracket for attachment of guide for wing centre eectiaia flap controls
2
2 24-3810-32-1 . ,
Flap jack attachment bracket assy, RH
I
  24-3810-32-2 . ,
Flap jack attachment bracket assy, LH
I
3 24-3810-32-3 ..
Bracket, RH
I
  24-38X0-32-4 ..
Bracket,
I
4 2414A-57-7-10-4 ..
Bushing
2
5 24-3810-39 .
bug
2
6 24-3810-39-3 ..
Shackle
I
7 - 7 83701-101 .. ( 100/5)
Bearing (supplied according to 100/5)
I
8 4916A-6-32 .
Bolt
8
9 3302A-6 .
Nut
8
10 3401A-1-6-12 .
Washer
8
11 26-3810-131 .
Trailing edge end section, EH
I
  26-3810-132 .
Trailing edge end section,LH
I
12 26-3810-130-97 .
Access cover
2
13 3172A-4-9 .
Bolt
16
14 24-3800-130 .
Pairing
2 A
15 3051A-5-16 .
Bolt
12 A

A - 1701

EFFECTIVI LEGEM)
A - 1701 and on
