-26

.8. . ( 3 . I)

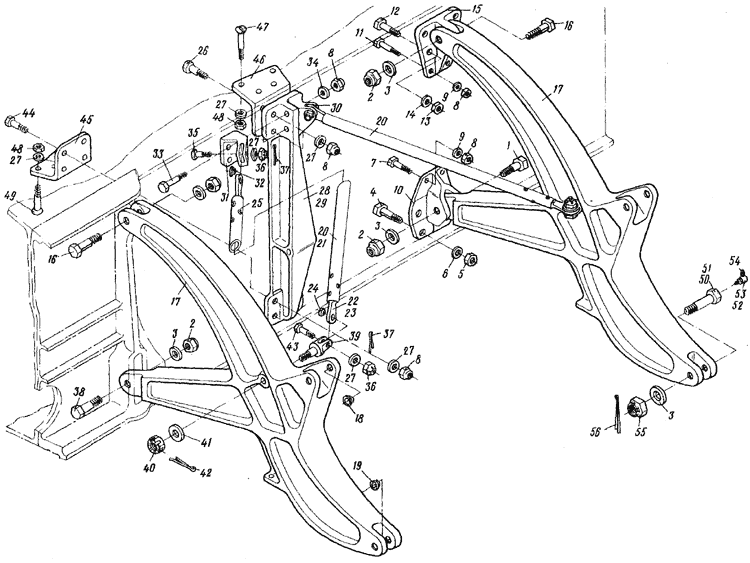

Fig.8. ATTACHMENT ELEMEHTS OP WDfG CENTRE SECTION CURTAIN AND FLAP. (Sheet 1 of 3)



.8. . ( 3 . 2)

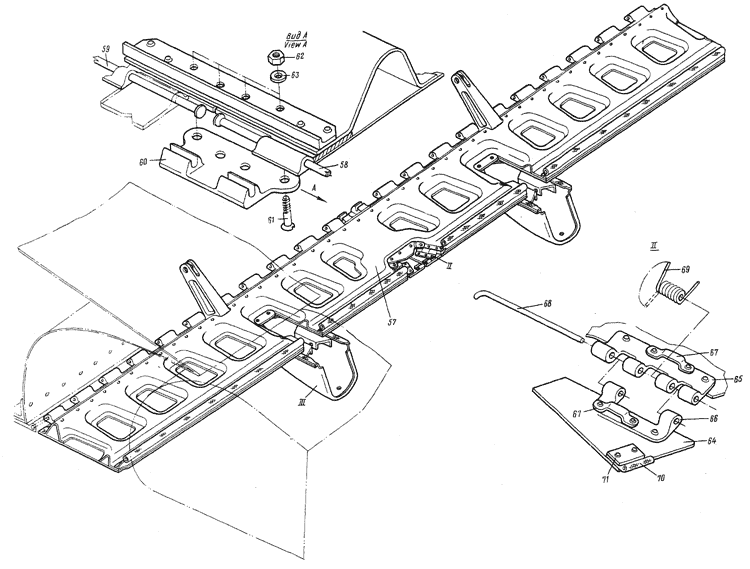

Fig.a, ATTACHMENT ELEMENTS OP WIHG CSIfTRE 5ECTIOH CURTAIN FLAP. (Sheet 2 of 3)



.8. . ( 3 . 3)

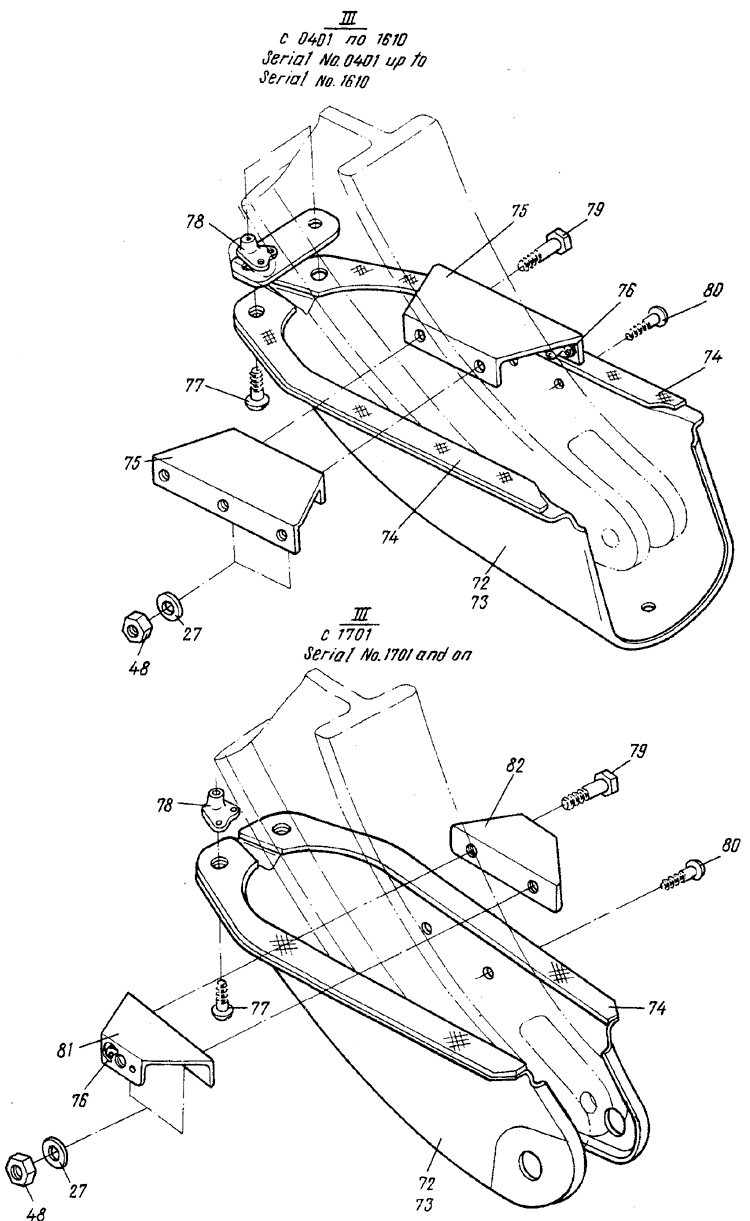

Fig,8. ATTACHMENT ELEMENTS OP WING CENTRE SECTION CURTAIN AND FLAP. (Sheet 3 of 3)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-3800-30-1 , (. 3.2, . I, .6) ATTACHMENT ELEMENTS OP WING CENTRE SECTION CURTAIN AND FLAP, RH (See 3.2, Fig.l, Item No.6) I
  24-3800-30-2 , (. 3.2, . I, .6) ATTACHMENT ELEMENTS OP WING CENTRE SECTION CURTAIN AND PLAP, LH (See 3.2, Fig.l, Item No.6) I
8- 24-3800-51-19 .
Bolt
I
2 3350A-12 .
Nut
4
3 3402A-1,5-12-22 .
Waeher
6
4 4916A-10-32 .
Bolt
4
5 3302A-10 .
Nut
4
6 3402A-1,5-10-18 .
Waaher
4
7 4916A-6-26 .
Bolt
2
8 3302-6 .
Nut
14
9 3402A-1,5-6-12 .
Washer
4
11 4916A-6-24 .
Bolt
2
12 4916A-8-30 .
Bolt
4
13 3302A-8 .
Nut
4
14 3402A-1,5-8-14 .
Washer
4
15 24-3800-31 . 3
Bracket on wing centre section rib 3
I
16 24-3800-51-17 .
Bolt
2
17 24-3800-40 .
Bracket
2
18 2413A57-7-10-6 ..
Bushing
2
19 2413A57-12-15-7 ..
Bushing
2
20 24-3800-60 .
Drag strut assy
2
21 24-3800-60-5 ..
Torque tube
I
22 24-3300-70 ..
End piece
2
23 24-3800-70-5 ...
End piece
I
24 -6 ...
Bearing
I
8 - 25 745AH-23 ..
Rivet
6
26 49I6A-6-32 .
Bolt
4
27 3402A-1-6-12 .
Washer
20
28 24-3800-100 .
Bracket assy
I
29 24-3800-100-5 ..
Bracket
I
30 24-3800-110-1 ..
Lug,
I
31 24-3800-110-2 ..
Lug, LH
I
32 2414A57-6-8-3 ...
Bushing
I
33 3024A-6-26 ..
Bolt
2
34 340IA-1,5-6-12 ..
Washer
2
35 3027A-6-22-3 .
Bolt
2
36 334IA-6 .
Hut
4
37 1,5x20-002
397-66
.
Cotter pin
4
38 24-3800-51-7 .
Bolt
I
39 24-3800-36 .
Eye bolt
2
8 - 40 3327A-16 . Hut 2
41 3402A-2-I6-28 .
Washer
2
42 3x40-002
397-66
.
Cotter pin
2
43 3027-6-20-3 .
Bolt
2
44 49I6A-6-28 .
Bolt
4
45 24-3800-33 .
Gusset plate, lower
I
46 24-3800-32 .
Gusset plate, top
I
47 4947-6-36 .
Bolt
4
48 3373A-S .
Hut
12
49 4947-6-38 .
Bolt
4
50 24-3800-37 .
Bolt
2 A
  24-3800-38 .
Bolt
2
51 24-3800-37-3 ..
Bolt
I A
  24-3800-38-3 ..
Bolt
I
52 24-3804-77 ..
Pipe connection
I A
53 24-3804-77-3 ..
Pipe connection
I A
8-67 24-3800-80-33 ..
Doubler
4
68 24-3800-80-37 ..
Hinge pin
2
69 24-2200-155-3 ..
Spring, EH
I
  24-2200-155-4 ..
Spring, LH
I
70 24-3800-80-49 .. Section 2
71 24-3800-80-50 ..
Strip
4
72 24-3800-122 .
Pairing
2 A
  24-3800-125 .
Pairing
2
73 24-3800-122-3 ..
Pairing
I A
  24-3800-125-3 ..
Pairing
I
74  24-3800-124

..
Gasket

I

A
  24-3800-129 ..
Gasket
I
75 24-3800-123 ..
Gusset plate
4 A
76 338IA-5 ..
Self-locking nut, double- lugged
3 A
  3381A-5 ..
Self-locking nut, double- lugged
I
8-77 3059A-5-16 ..
Bolt
4
78 3384A-5 ..
Angular self-locking nut
4
79 3021A-6-22 ..
Bolt
4
80 3059A-5-12 ..
Bolt
12
  3059A-5-I2 ..
Bolt
4
81 24-3800-I27-I ..
Curved section, RH
2
82 24-3800-127-2 ..
Curved eection, LH
2


- 0401 1610
- 1701

EFPECTIVITY LBGHJD
- 0401 up to 1610
- 1701 and on
