3.

1.

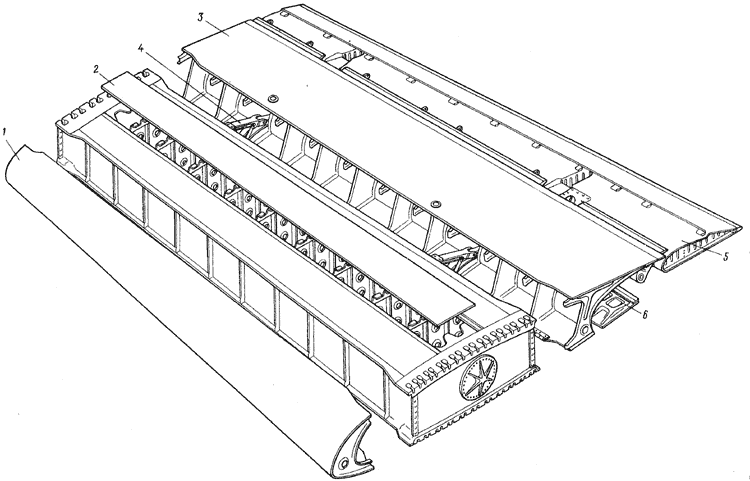

Fig.l. WIHG INNER SECTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    3.
WING INNER SECTION

  26-2000-0-1 ,
WING INNER SECTION, RH
I
  26-2000-0-2 ,
WING INNER SECTION, LH
I
1 - 1 26-2I20-0-I . , (. 3.3, .2)
Wing inner section leading- edge assembly, RH (See 33, Pig.2)
I
  26-2120-0-2 . , (. 3.3, .2)
Wing inner section leading- edge assembly, LH (See 3.3, Pig. 2)
I
2 26-2300-0-5 . , (. 3.3, . 3)
Wing inner section top detachable panel, RH (See 3.3, Pig.3)
I
  26-2300-0-6 . , (. 3.3, . 3)
Wing inner section top detachable panel, LH (See 3.3, Pig.3)
I
3 26-2200-200-1 . , (. 3.3, . 4)
Wing inner section trailing portion, RH (See 3-3, Pig.4)
I
  26-2200-200-2 . , (. 3.3, .4)
Wing inner section trailing portion, LH (See 3.3, Pig.4)
I
  24-3800-50-2 . , (. 3.3, .5)
Flap track mounting assembly on wing inner section, LH (See 3-3, Fig. 5)
I
5 26-3820-0-1 . (, (. 3.3, .6)
Wing inner section flap, RE (See 3.3, Fig.6)
I
  26-3820-0-2 . (, (. 3.3, .6)
Wing inner section flap, LH (See 3.3, Fig.6)
I
6 26-2200-40-1 . (, (. 3.3, .7)
Hinged panel of wing inner section trailing portion, RH (See 3.3, Fig.7)
I
  26-2200-40-2 . , (. 3.3, .7)
Hinged panel of wing inner section trailing portion LH (See 3.3, Fig.7)
I
