-26

.2.

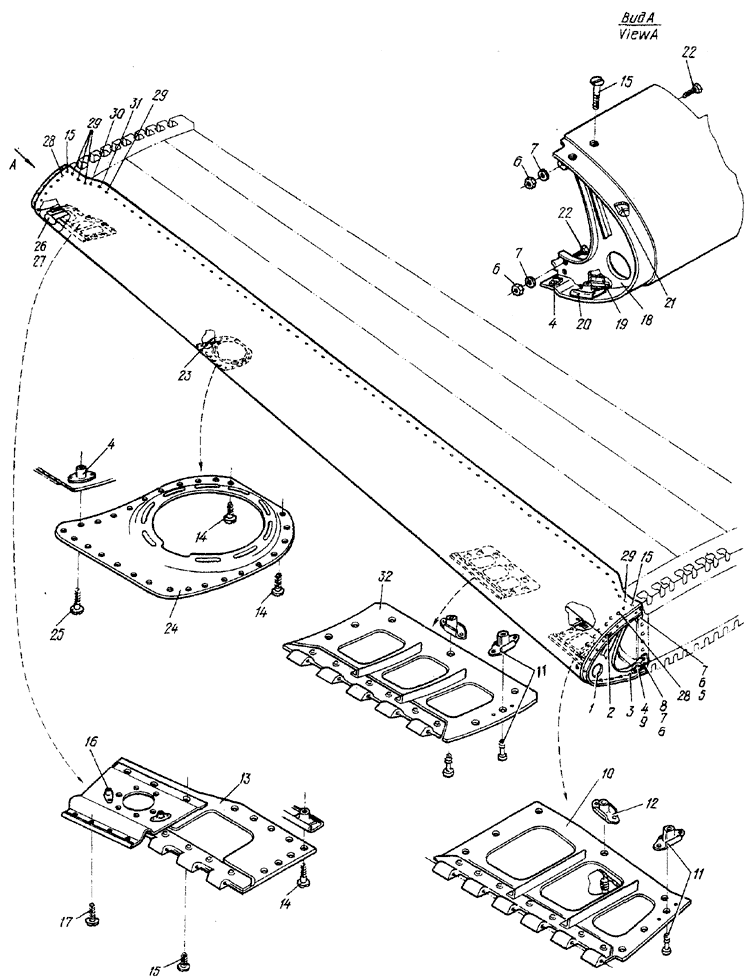

Fig. 2. VISG INNER SECTIOH LEADING-EDOE ASSEMBLY



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-2I20-0-I , (. 3.3, . I, .1)
WING INNER SECTION LEADINGEDGB
ASSEMBLY, RH (See 3.3,
Fig.l, Item No.l)
I
2- 26-2120-0-2 , (.3.3, ., .X) WING INNER SECTION LEADING- EDGE ASSEMBLY, LH (See 3-3, Fig.l, Item No.l)
I A
  24-2110-22-1 . 7,
End rib 7, RH
I
  24-2110-I22-2 . 7,
End rib 7, RH
I
  24-2110-22-2 . 7, End rib 7, LH I A
  24-2110-122-2 . 7,
End rib 7, LH
I
2 3387A-5-40-505 .. ,
Self-locking nut, floating on section
2
3 3387A-5-40-465 .. ,
Self-locking nut, floating on section
2 A
  3387A-5-40-265 .. ,
Self-locking nut, floating on section
2
  3387A-5-35-200 .. ,
Self-locking nut, floating on section
2
2-4 338IA-5 ..
Self-locking nut, double- lugged
33
5 3017A-5-18 .
Bolt
I
6 3373A-5 .
Hut
8
7 3401A-0,8-5-10 .
Washer
8
8 3017A-5-16 .
Bolt
3
9 4947A-5-16 .
Bolt
I
10 24-2110-35-1 . ,
Aoceae door in wing inner section leading-edge assembly, BH
I A
  24-2110-135-1 .
Access door in wing inner section leading-edge assembly, RE
I
  24-2110-35-2 . ,
Access door in wing inner section leading-edge assembly, LH
I A
  24-2110-135-2 . ,
Access door in wing inner section leading-edge assembly,LH
I
II 780AH-2-12 ..
Screw-type lock
12 A
  780AH-3-14 ..
Screw-type lock
12
12 780AH-2-15 ..
Screw-type lock
3 A
  780AH-3-I6 ..
Screw-type lock
3
13 26-2II0-70-I . ,
Access door in wing inner section leading-edge assembly, RH
I
  26-2II0-70-2 . ,
Access door in wing inner section leading-edge assembly, LH
I
2 - 14 24-2110-44-8 ..
Bolt
15
15 24-2110-44-14 ..
Bolt
6
16 3381A-4 .. ,
Self-locking nut, double- lugged
6
17 24-3041A-8-2 ..
Bolt
6
18 24-2110-23-1 . 12,
End rib 12, RH
I I
  24-2110-23-2 . 12,
End rib 12, LH

19 3387A-5-40-145 .. ,
Self-locking nut, floating on section
I
20 3387-5-40-265- .. , Self-locking nut, floating on section I
21 3387A-5-40-305 .. ,
Self-locking nut, floating on section
2
22 3017A-5-14 .
Bolt
4
23 24-2110-90-1 .
Access hatch, HE
I I
  24-2110-90-3 .
Access hatch, LE

2-24 24-2110-11 ..
Trimming, RH
I
  24-2110-12 ..
Trimming, LH
I
25 24-2110-44-3 ..
Bolt
25
26 24-2110-95-1 . ,
Vent intake installation, RH
I
  24-2110-95-2 . ,
Vent intake installation, LH
I
27 24-2110-51 ..
Vent intake
I
28 24-2110-44-12 . Bolt 62
29 24-2110-44-16 .
Bolt
203
30 24-2110-44-8 .
Bolt
2
Dz 24-2110-44-22 .
Bolt
2
32 26-2120-30-1 .
Access door, RH
I A
  26-2I20-I30-I .
Access door, RH
I
  26-2120-30-2 .
Access door, LH
I A
  26-2120-130-2 .
Access door, LH



A - 1610 - 170

EKPECTIVITY LEGEHD
- up to 1610 - 1701 and on
