-26

.4.

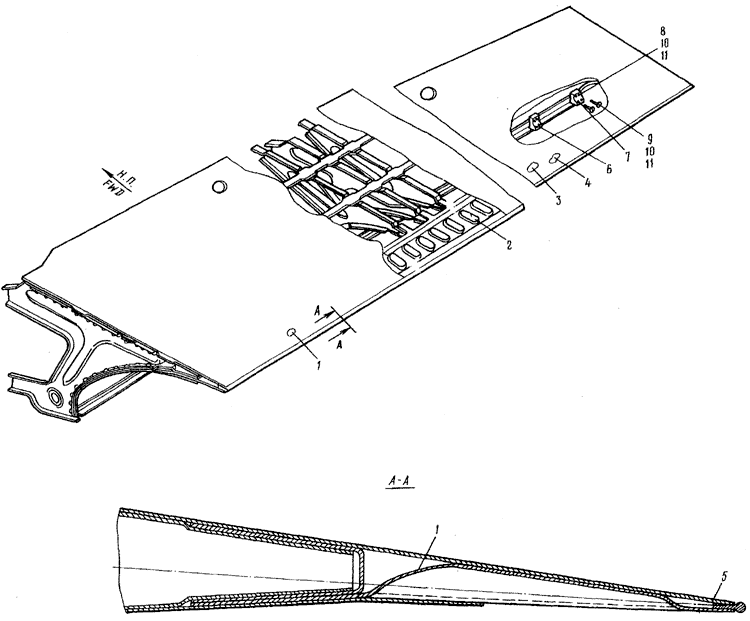

Fig,4. WING INNER SECTION TRAILING PORTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-2200-200-1 , (. 3.3, 1, . 3)
WING INKER SECTION TRAILING PORTION, RH (See 3-3, Fig.1, Item No3)
I
  26-2200-200-2 , (. 3.3, , .)
WING SECTION TRAILING PORTION, LH (See 3-3, Pig.I, Item No.3)
I
4 - 1 26-2200-200-863 . I 4,
Lower skin between trailing portion riba 1 and 4a, RH
I
  26-2200-200-864 . I 4,
Lower akin between trailing portion riba 1 and 4a, LH
I
2 26-2200-200-757 . 4 7,
Lower skin between trailing portion ribs 4a and 7, RH
I
  26-2200-200-758 . 4 7, Lower skin between trailing portion ribs 4a and 7, LH I
3 26-2200-200-759 . 7 9,
Lower skin between trailing portion ribs 7 and 9, RH
I
  26-2200-200-760 . 7 9,
Lower akin between trailing portion ribs 7 and 9, LH

T


4 - 4 26-2200-200-761 . 9 12,
Lower skin between trailing portion ribe 9 and 12, HH
I
  26-2200-200-762 . 9 12,
Lower skin between trailing portion ribs 9 and 12, LH
I
5 24-2200-301 . Trailing portion end section I
6 24-2200-157-13 . 10
Rubber stop at trailing portion rib 10
I
24-2200-157-15 . 12
Rubber stop at trailing portion rib 12
I
8 3172A-4-20 .
Screw
4
9 3172A-4-22 .
Screw
4
10 3373A-4 .
Nut
8
11 340IA-1-4-8 .
Washer
16
