-26

— .

. 2. .( 3 . 1)

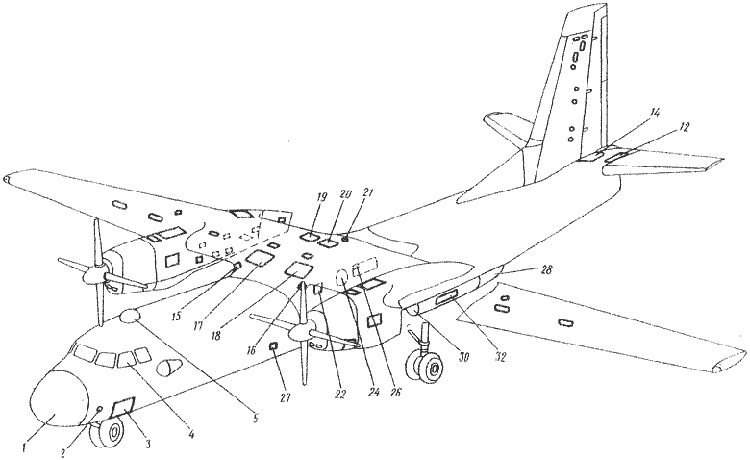

Pig. 2. ARRANGEMENT OP EITEKH.iL ACCESS DOORS. (Sheet 1 of 3)

. 2. .( 3 . 2)

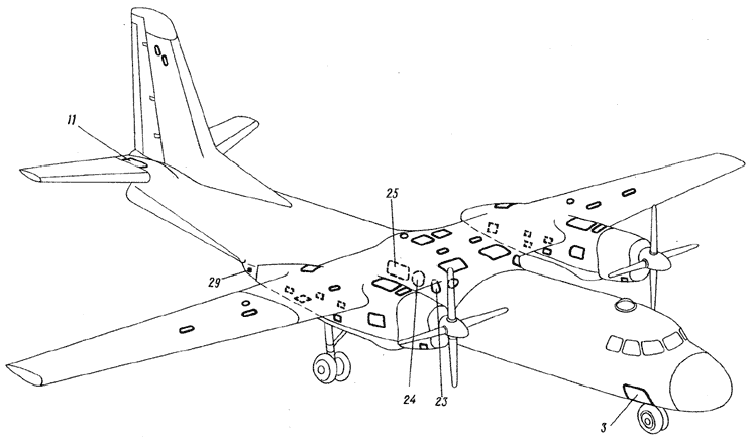

Pig. 2. OF EXTERHAL ACCESS DOORS. (Sheet 2 of 3)

. 2. . ( 3 . 3

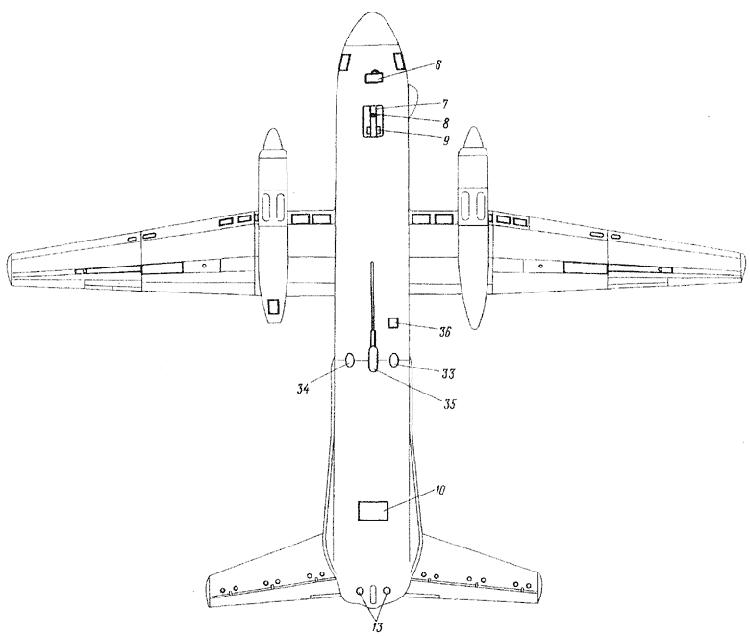

Pig. 2. ARRAHGEMEMT OF EXTERNAL ACCESS DOORS. (Sheet 3 of 3)



.
Figure and item No.
Part number
Nomenclatu re
1234567		 K-o

Units per Assy		 Effectivity

    ARRANGEMENT OP EXTERNAL ACCESS DOORS
2-1 24-7109-20/6 . -
- radome		 I
2 574AH-100-I,5- . Access door giving access for connection of intercom external cable I
3 24-0253-260-1 . - ,
Door giving access to electrical and radio equipment units, RH		 I
  24-0253-260-2 . ,
Door giving access to electrical and radio equipment units, LH		 I
4 24-0250-250-1 . ,
Grew cabin canopy DV-panel, RH		 I
  24-0250-250-2 . ,
Grew cabin canopy DV-panel, LH		 I
5 24-0270-50 .
Dorsal emergency hatch		 I
  26-0270-100 . ( 24-0270-50 )
Astrodome (instead of 24-0270-50 dorsal emergency hatch cover to a special order)		 I
2 - 6 26-0205-C-53
Door giving access to nose L.G. down-lock		 1
n 26-0223-50
Ventral emergency hatch		 I
8 574AH-I00-I,0- ( )
Door giving access to manual opening mechanism of ventral emergency hatch {on the grount		 I
9 26-0223-30
Doors giving access to ventral emergency hatch locking mechanism and cover closed position warning unit 		2
10 26-04-13-50

Tail section access door		 I
II 26-0421-45-1 ,
Elevator universal joints access door, RH		 I
12 26-0421-45-2 ,
Elevator universal Joints access door, LH		 7
2-13 574AH-150-0,8- .
Door giving access to tail light and radio equipment aerials		 2
14 26-0421-50 . Elevator universal joints access door I
15 24-0380-68-1 . ,
Air conditioning system distribution valve, RH 		I
16 24-0380-68-2 . ,
Air conditioning system distribution valve, LH 		I
17 24-0380-85-1 .
Electrical equipment bay access door 		I
18 24-0380-85-2 . Power plant pipelines access door I
19 24-0380-230-1 . , ,
Door giving access to hydraulic system, control system and electrical equipment units, RH		 I
2 - 20 24-0380-230-2 . , ,
Door giving access to hydraulic system, control system and electrical equipment unite, LH		 I
21 2958A-I50-1-1
24-0380-300-6 		,
Hydraulic reservoir filler necic access door 		I
22 24-0380-66-2 . KB-2,
-2 box access door, LH		 I
23 24-0380-66-1 . -2,
-2 bo access door, RH 		I
24 24-0380-110-11 .
Voltage regulators access door 		2
25 24-0380-130-1 . ,
Door under wing-center section fairing giving access to hydraulic system and control system unite, RH 		I
26 24-0380-130-2 . ,
Door under wing-center - tion f8iring giving access to hydraulic system and control system units, LH
2-27 26-0305-10-9 .
Plug connectors access door 		4
28 26-0360-51-2 . 6059
Rear LH panel giving access to 6059 limit switch 		I
29 26-0360-5I-I . 6059
Rear RH panel giving access to 6059 limit switch 		I
30 26-0360-70-2 . ,
Door giving access to ramp open position limit switches, LH 		I
Dz 26-0360-70-1 . ,
Door giving access to ramp open position limit switches, RH 		I
32 26-0360-60 .
Grounding socket access door		 I
33 26-0400-130-4 . , 6044
Sill lock fairing giving access to 6044 limit switch 		I
34 26-0400-130-3 . , 6045
Sill lock fairing giving access to 6045 limit switch 		I
2-35 26-0400-40-3 .. ,
Detachable ramp hinge bracket fairing 		I
36 26-0308-0-21
Ramp drive inspection hole		 I
-37 26-0461-250 ..
Drive sprocket inspection hole		 I
-38 26-0402-100-9 .. ,
Carriage inspection hole, RH		 I
-39 26-0402-100-10 .. ,
Carriage inspection hole LH 		I
-40 26-0400-I60-I . ,
Ramp lock cover, RH 		I
-41 26-0400-160-2 . , Ramp lock access cover, LH I
