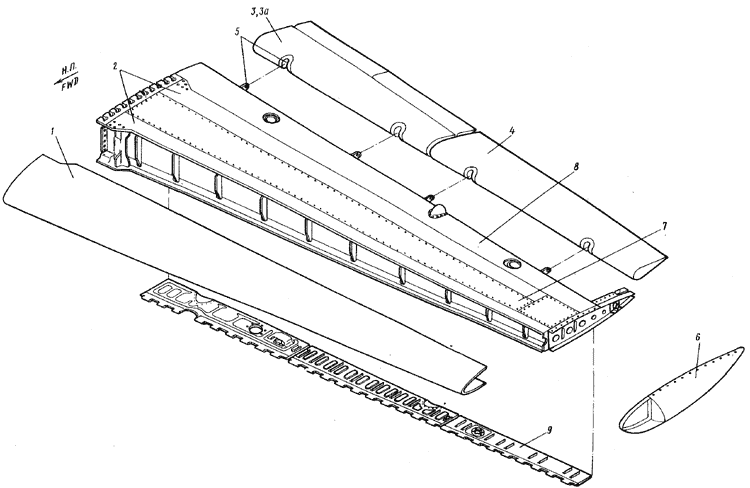

Fig.l, WING OUTER SECTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    4.
WING OUTER SECTION

  26-2050-0-1 ,
WHIG OUTER SECTION, RH
I
  26-2050-0-2 ,
WING OUTER SECTION, LH
I
1 - 1 24-2I30-0-1 . , (.3.4, .2)
Wing outer section leading edge assembly, RH (See 3-4, Fig.2)
I

  24-2130-0-2 . , (. 3.4, .2)
Wing outer section leading edge assembly, LH
I
2 26-2301-0-1 . ,
Wing outer section upper (non-detaohable) panel, RH
I
  26-2301-0-2 . , Wing outer section upper (non-detachable) panel, LH I
3 24-3701-0 . (.3.4, .3)
Root aileron, LH (See 3-4, Fig.3)
I
3a 24-3701-20 . (. 3.4, . 6)
Root aileron, RH (See 3-4, Fig.6)
I
4 24-3702-50-1 . (. 3.4, .7)
End aileron, (See 3.4, Fig.7)
I
1 - 4 24-3702-50-2 . (. 3.4, .7)
End aileron, LH (See 3.4, Fig.7)
I
5 24-3700-0-1 . , (. 3.4, .8)
Aileron attachment elements, RH (See 3.4, Fig.8)
I
  24-3700-0-2 . , (. 3.4, .8)
Aileron attachment elements, LH (See 3-4, Fig.8)
I
6 24-2025-10-1 . , (. 3.4, .9)
Wing-tip fairing, RH
I
  24-2025-10-2 . , (. 3.4, .9) Wing-tip fairing, LH (See 3.4, Fig.9) I
7 26-2301-0-7 . 0, (. 3.4, . 10)
Wing outer section upper detachable panel,RH (See 34, Fig.10)
I
  26-2301-0-8 . 0, (. 3.4, . 10)
Wing outer section upper detachable panel, LH (See 34, Fig.10)
I
8 26-2200-60-1 . ,
Wing outer section trailing portion, RH
I
  26-2200-60-2 . ,
Wing outer section trailing portion, LH
I
1 - 9 26-22GG-I50-1 .. ,
Wing outer section trailing portion panel, RH
I
  26-2200-150-2 .. ,
Wing outer section trailing portion panel, LH
I
