-26

.2.

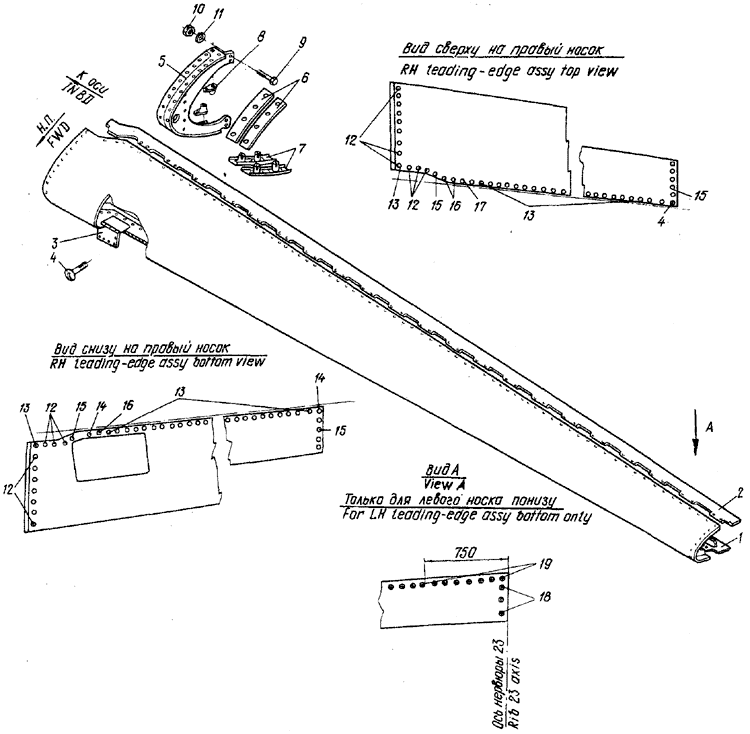

Fig.2. WING OUTER SECTION LEADING-EDGE ASSEMBLY



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-2130-0-1 , (. 3.4, . I, . I)
WING OUTER SECTION LEADING- EDGE ASSEMBLY, RH (See 3-4, Fig.l, Item No.1)
I
  24-2130-0-2 , (. 3.4, .1, 1)
WING OUTER SECTION LEADING- EDGE ASSEMBLY, LH (See 3.4, Fig.l, Item No.1)
I
2 - 1 24-2110-42-1 . ,
Lower cap, RH
I
  24-2110-42-2 . ,
Lower cap, LH
I
2 24-2110-41-1 . ,
Upper cap, RH
I
  24-2110-41-2 . ,
Upper cap, LH
I
3 24-2110-30-1 .
Access door, RH
I
  24-2110-30-2 .
Access door, LH
I
4 24-2110-44-8 .
Bolt
14
5 24-2110-24-1 . ,
End rib, RH
I
  24-2110-24-2 . ,
End rib, LH
I
6 3387A-5-40-300 .. , Self-locking nut, floating on section 2
2 - 7 3387A-5-40-265 .. ,
Self-looking nut, floating on section
2
8 3382A-5 .. ,
Self-locking nut, single- lugged
4
9 3017A-5-12 .
Bolt
4
10 3373A-5 .
Nut
4
11 340IA-0,8-5-10 .
Washer
4
12 24-2110-44-12 .
Bolt
15
13 24-2110-44-14 .
Bolt
300
14 24-2110-44-19 .
Bolt
I
15 24-2110-44-4 .
Bolt
17
16 24-2110-44-21 .
Bolt
4
17 24-2110-44-22 .
Bolt
I
18 24-2050-9-16 .
Bolt
10 A
  24-2050-9-19 .
Bolt
10
2 - 19 24-2050-9-15 .
Bolt
58
  24-2050-9-18 .
Bolt
58

A - 1310
- 1401

EFFBCTIVITY LEGBHD
- up to 1310
- 1401 and on
