-26

.4.

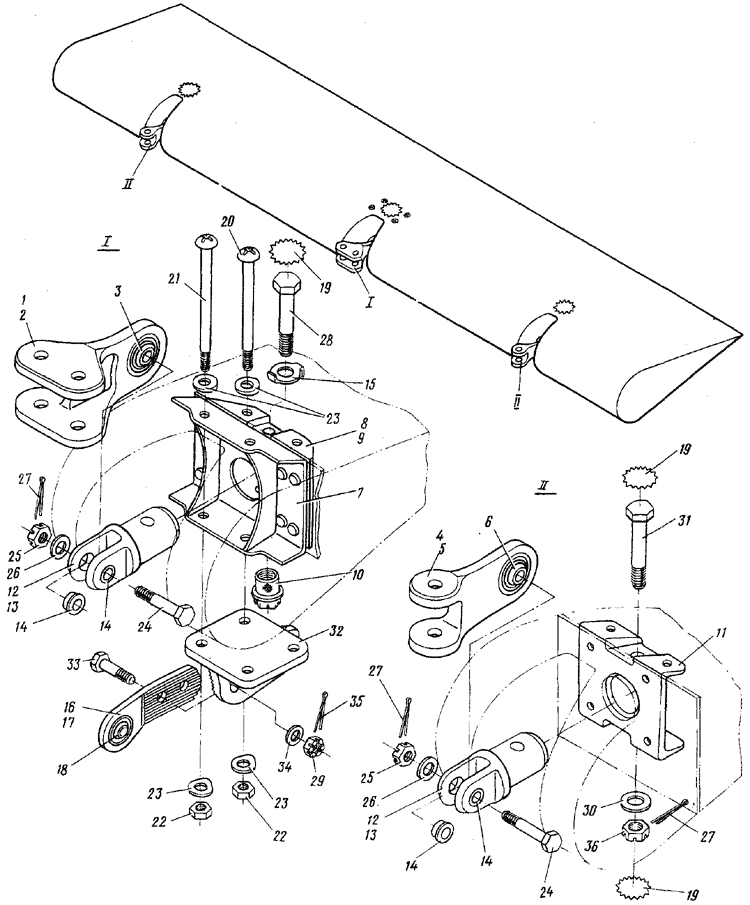

Fig.4. AILERON BALAHCIKG TAB



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-3704-0-1 (. 3.4, .3, 1)
AILERON BALANCING TAB, RH (See 3-4, Fig.3, Item No-1)
I
  24-3704-0-2 (. 3.4, .3, .I)
AILERON BALANCING TAB, LH (See 3-4, Fig. 3, Item No.l)
I
4 - 1 24-3705-31 .
Bracket aaay
I
2 24-3705-31-3 ..
Bracket
I
3 981065 .. ( 100/5)
Bearing (aupplied according to 100/5)
I
4 24-3705-32 .
Bracket assy
2
5 24-3705-32-3 ..
Bracket
I
6 981065 .. ( 100/5)
Bearing (supplied according to 100/5)
I
7 24-3705-34-3 .
Bracket
I
8 24-3705-35-7 .
Bracket assy
I
9 24-3705-35-3 ..
Bracket
I
10 3360A-6 .. Nut I
11 24-3705-36-3 .
Bracket
2
4 - 12 24-3705-37 .
Fork assy
3
13 24-3705-37-3 ..
Fork
I
14 2413A57-5-7-3 ..
Bushing
2
15 24-3705-38 .
Washer
I
16 24-3704-39-1 .
Eye assy, RH
I
  24-3704-39-2 .
Eye assy, LH
I
17 24-3704-39-3 .. Eye, RH I
  24-3704-39-4 ..
Eye, LH
I
18 -6 .. ( 100/5)
Bearing (supplied according to 100/5)
I
19 24-3701-110 .
Washer
5
20 1008AH-5-62 .
Bolt
2
21 1008AH-5-70 .
Bolt
2
22 3302A-5 .
Nut
4
,23 -5-0 . Washer 8
24 3027A-5-24-3 .
Bolt
3
25 3341A-5 .
Nut
3
4 - 26 3401A-2-5-10 .
Washer
3
27 1,6x14-002
397-66
.
Cotter pin
5
28 302IA-6-36-3 .
Bolt
I
29 3336A-6 .
Nut
2
30 3401A-1,5-6-12 .
Washer
2
31 4916A-6-36-3 .
Bolt
2
32 24-3704-35-1 .
Bracket, RH
I
  24-3704-35-2 .
Bracket, LH
I
33 3027A-6-I8-3 .
Bolt
2
34 3401A-I-6-12 .
Washer
2
35 1,6x20-002 397-66 .
Cotter
2
36 3341A-6 .
Nut
2
