-26

.5.

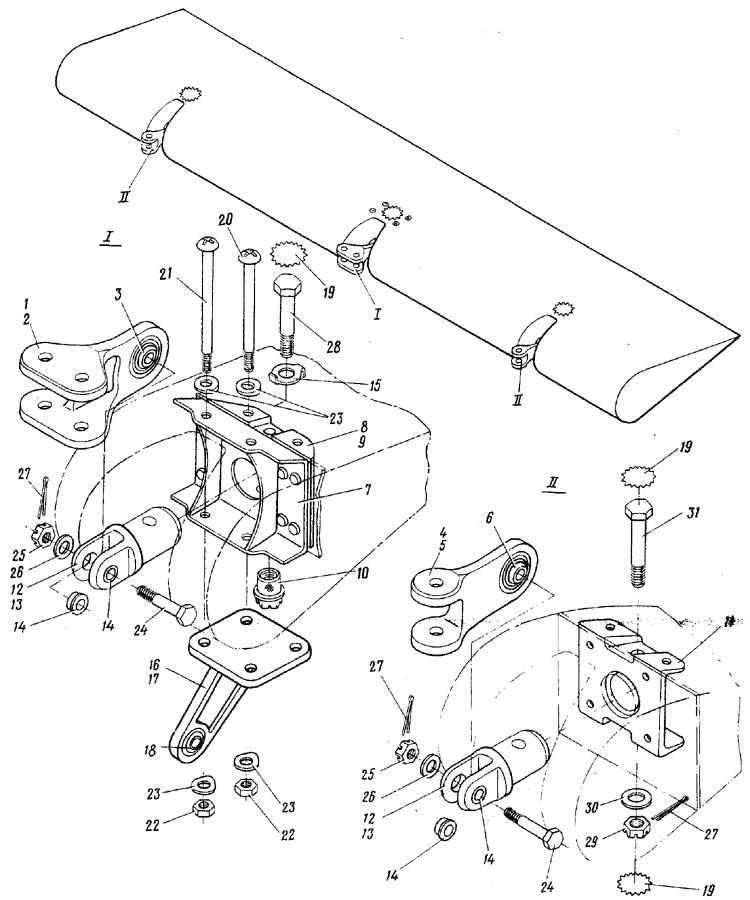

Fig. 5. AILERON TRIM TAB



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
5 - 1 24-3705-0 , (. 3.4, . .3, .2)
AILERON TRIM TAB (See 3.4, Pig. 3, Item No.2)
I
  24-3705-31 .
Bracket assy

2 24-3705-31-3 ..
Bracket
I
3 796065 .. ( 100/5)
Bearing (supplied according to 100/5)
I
4 24-3705-32 .
Bracket assy
2
5 24-3705-32-3 ..
Bracket
I
6 98065 .. ( 100/5)
Bearing (supplied according to 100/5)
I
7 24-3705-34-5 .
Bracket
I
8 24-3705-35-9 .
Bracket assy
I
9 24-3705-35-5 ..
Bracket
I
10 3360A-6 ..
Nut
I
11 24-3705-36-5 .
Bracket
2
12 24-3705-37 . cope
Fork assy
3
13 24-3705-37-3 ..
Fork
I
5 - 14 24I4A57-5-7-3 ..
Bushing
2
15 24-3705-38 .
Washer
I
16 24-3705-39 .
Bracket
I
17 24-3705-39-3 ..
Bracket
I
18 -6 .. ( 100/5)
Bearing (supplied according to 100/5)
I
19 24-3701-110 . Washer 5
20 1008AH-5-60 . Bolt 2
21 1008AH-5-68 .
Bolt
2
22 3302A-5 .
Nut
4
23 Dz-5-0 .
Washer
8
24 3027A-5-24-3 .
Bolt
3
25 334IA-5 .
Nut
3
26 340IA-2-5-10 .
Washer
3
27 1,6x14-002
397-66
.
Cotter pin
5
5 - 28 3021A-6-36 .
Bolt
I
29 334IA-6 .
Hut
2
30 340IA-I,5-6-12 .
Washer
2
31 49I6A-6-36-3 .
Bolt
2
