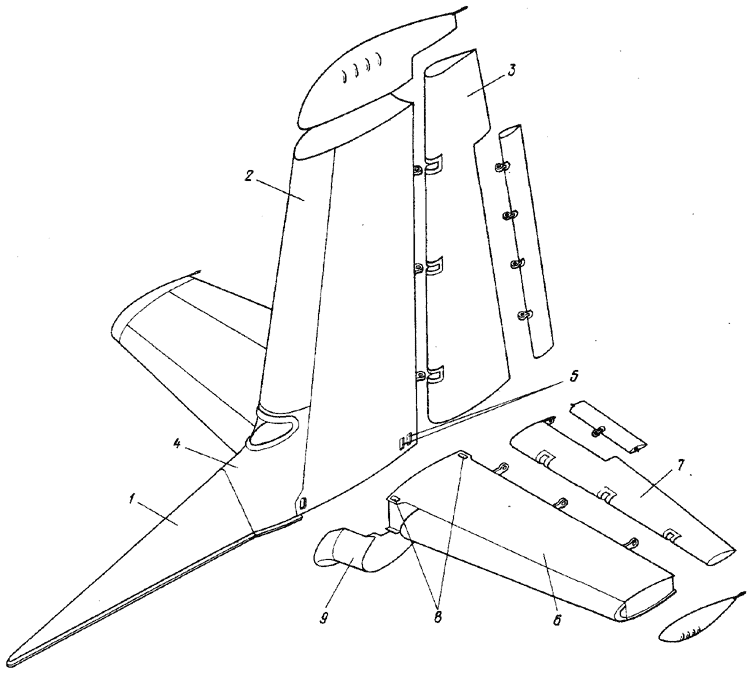

Fig.l. AIRFLANE TAIL UNIT



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    I.
AIRPLANE TAIL UNIT

  26-3000-100 AIRPLANE TAIL UNIT I
1 - 1 26-3503-0 .
Dorsal fin
I
2 26-3400-0 . (. 4.2, .1) . I)
Vertical stabilizer (See 4.2, Fig 1)
I
3 26-3300-300 . (. 4.2, . I . 32 . 2)
Rubber (See 4.2, Fig.l, Item . 32 and Fig,2)
I
4 26-3041-0 . (. 4.2, .
6) Vertical stabilizer fairing (See 4.2, Fig.6)
I
5 26-3000-0 . (. 4.2, . 7)
Vertical stabilizer-to- fuselage joint (See 4.2, Fig.7
I
6 26-3100-0-1 . , (. 4.3, .1)
Horizontal stabilizer airfoil, stbd (See 4-3, Fig.l) .
I
  26-3100-0-2 , (.4.3, .1)
Horizontal stabilizer airfoil, port (See 4-3, Fig.l)
I
7 24-3200-0-1 . , (.4.3, . I, .18 . 2)
Elevator, stbd (See 4-3, Fig.l, Item No.18 and Fig.2)
I
1 - 7 24-3200-0-2 . , (. 4.3, . I, . 18 . 2)
Elevator, port (See 4-3, Fig.l, Item Ho.18 and Fig.2)
I
8 26-3000-0 . (. 4.3, .5)
Horizontal stabilizer-to- fuaelage joint (See 4-3, Fig.5
I
9 26-3060-0-1 . , (.4.3, .6)
Horizontal stabilizer-to- fuaelage joint fairing, stbd (See 4.3, Fig.6)
I
  26-3060-0-2 . , (. 4.3, .6)
Horizontal stabilizer-to- fuselage joint fairing, port (See 4-3, Fig.6)
I
