-26

..

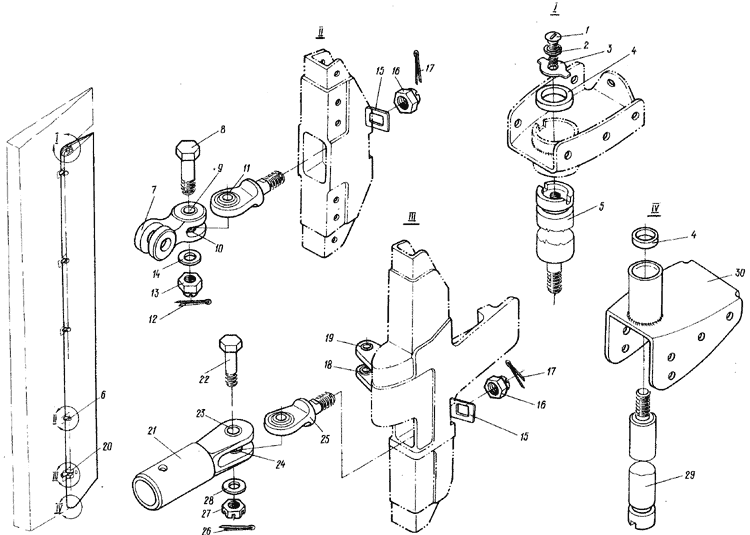

Flg.3. RODDER BALANCING TAB



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-3315-0 (. 4.2, . 2, .14)
RUDDER BALANCING TAB (See 4.2, Fig.2, Item Ho.14)
I
3-1 3166A-4-8 .
Screw
I
2 465-02 9
6402-70
.
Washer
I
3 24-3315-5 .
Washer
I
4 2608052-10-16-2,51 .
Packing ring
2
5 24-3315-3 . Weight I
6 24-3313-10. .
Attachment unit
4
7 24-3313-14 ..
Fork
I
8 3027A-6-22-3 ..
Bolt
I
9 24-3313-18 ..
Bushing
I
10 2413A57-6-8-3 ..
Bushing
I
11 24-3313-12 ..
Lug
I
12 1,5x20-002
397-66
..
Cotter pin
I
13 3341A-6 ..
Nut
I
14 3401A-0,5-6-12 ..
Washer
I
15 24-3208-7 .
Washer
5
3 - 16 3336-8 .
Nut
5
17 2x20-002
397-66
.
Cotter pin
5
18 2413A57-6-8-4 .
Bushing
I
19 24-3313-18 .
Bushing
I
20 24-3315-30 .
Attachment unit
I
21 24-3315-31 ..
Peg
I
22 3027-6-22-3 ..
Bolt
I
23 24-3313-18 ..
Bushing
I
24 2 413A57A-6-8-3 ..
Bushing
I
25 24-3313-12 .. Lug I
26 1,5x20-002
397-66
..
Cotter pin
I
27 3341A-6 ..
Nut
I
28 3401A-0,5-6-12 ..
Washer
I
29 24-3315-14 .
Balancing weight
I
30 24-3315-16 .
Diaphragm
I
