-26

—

. 4. . ( 3 . I)

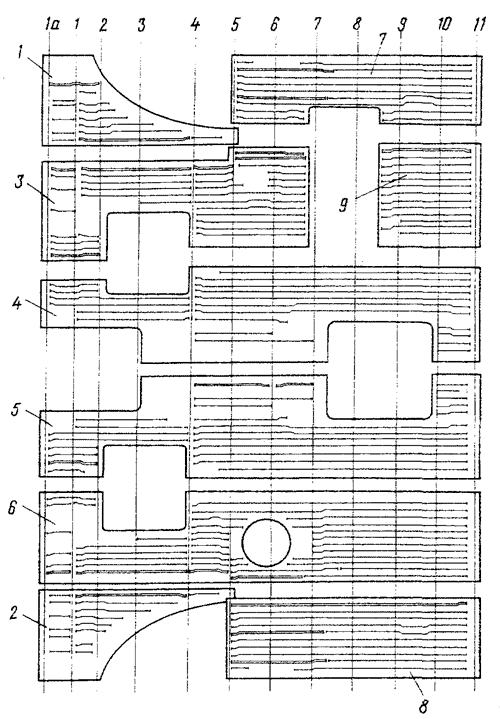

Pig. 4. ARRANGEMENT OP FUSELAGE STRINGERS AND PANELS. (Sheet 1 of 3)



. . ( 3 . 2)

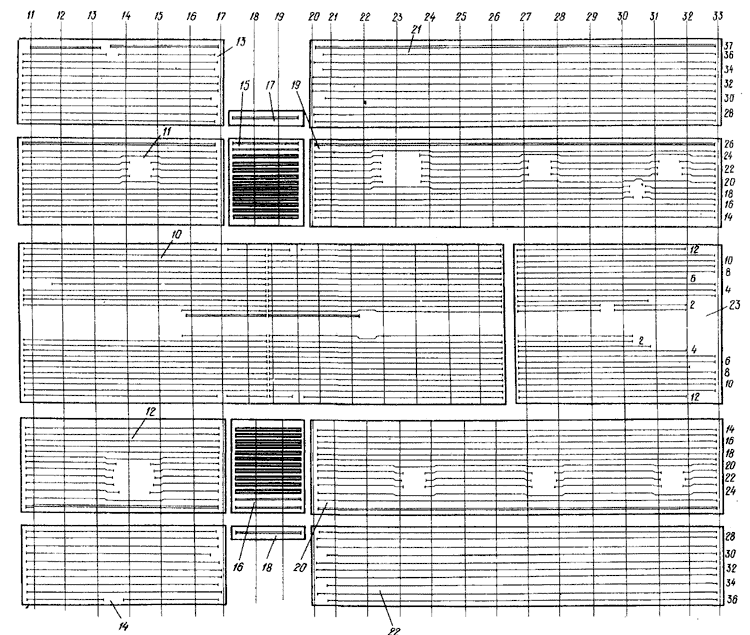

Pig.4. ARRANGEMENT OP PUSELAGE STRIHGERS AND PANELS. (Sheet 2 of 3)



.4. . ( 3 . 3)

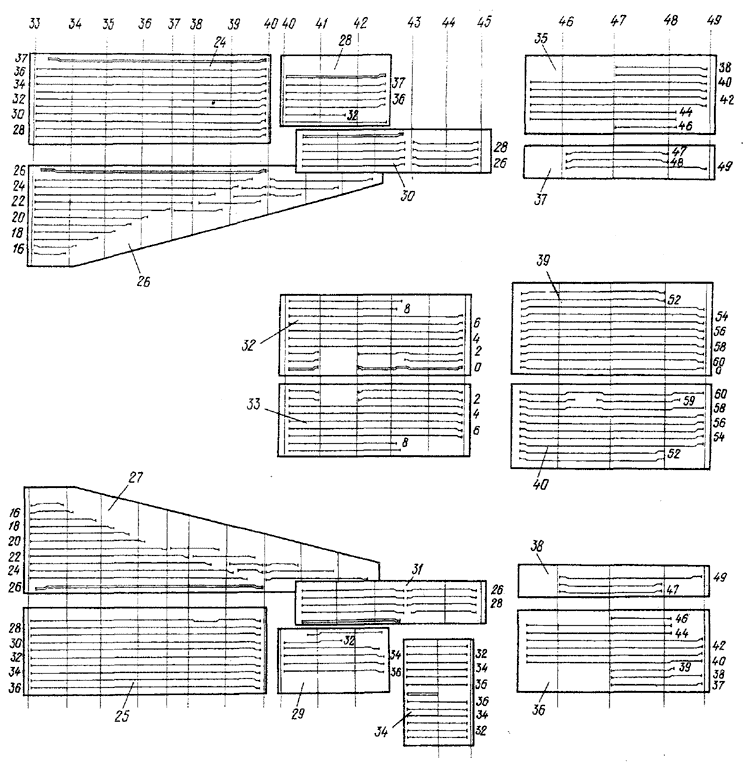

Pig.4- ARRANGEMENT OP FUSELAGE STRINGERS AND PANELS. (Sheet 3 of 3)



.
Figure and item No.
Part number
Nomenclatu re
1234567		 K-o

Units per Assy		 Effectivity
4-12 26-0303-0-2 . ,
Front side panel, LH 		I
13 26-0301-0-1 . ,
Front t'op panel, RH 		I
14 26-0301-0-2 . ,
Front top panel, LH 		I
15 26-0304-0-1 . ,
Panel under wing-center section, RH		 I
16 26-0304-0-2 . ,
Panel under wing-center section, LH		 I
17 24-0304-10-I . , Top panel under wing-center section, RH I
18 24-0304-10-2 . , Top panel under wing-center section, LH I
19 26-0305-0-1 . ,
Middle side panel, RH 		I
20 26-0305-0-2 . , -
Middle side panel, LH		 I
21 26-0302-0-1 . ,
Middle top panel, RH 		I
4-22 26-0302-0-2 . ,
Middle top panel, LH 		I
23 26-0308-0 .
Hear bottom panel
  26-0400-0
CARGO HATCH SECTION		 I
24 26-0401-0-1 . ,
Middle top panel, RH 		I
25 26-0401-0-2 . , Middle top panel, LH I
26 26-0402-0-1 .
Side panel		 I
27 26-0402-0-2




26-0410-0		 .
Side panel




TAIL UNIT ATTACHMENT SECTION 		I
28 26-0411-0-1 . , Rear top panel, RH I
29 26-0411-0-2 . , Rear top panel, LH I
30 26-0412-0-1 . , Rear side panel, RH I
31 26-0412-0-2 . , Rear Bide panel, LH I
32 26-0413-0-70-1 . , Rear bottom panel, RH I
33 26-0413-0-70-2 . ,
Rear bottom panel, LH 		I
2-34 26-0414-0 .
Stabilizer panel		 I
35 26-042I-0-I . ,
Tail top panel, RH 		I
36 26-0421-0-2 . ,
Tail top panel, LH 		I
37 26-0422-0-1 . ,
Tail side panel, RH 		I
38 26-0422-0-2 . ,

Tail side panel, LH 		I
39 26-0423-0-1 . ,
Tail bottom panel, RH 		I
40 26-0423-0-2 . ,
Tail bottom panel, LH 		I
