-26

.5.

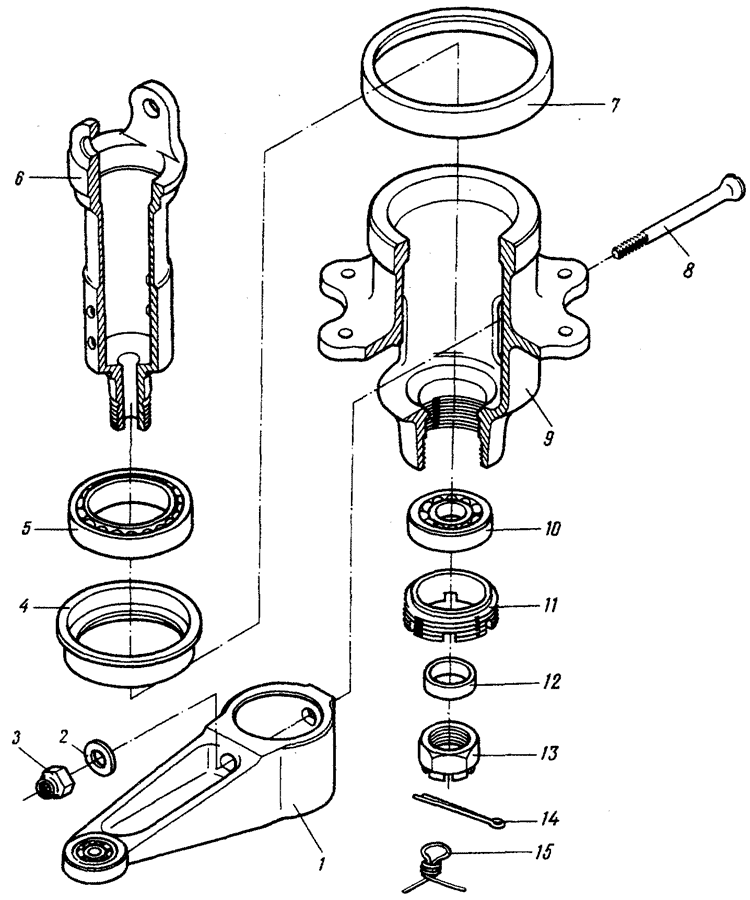

Fig.5. RUDDER COHTROL ASSEMBLY



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-3022-120 (. 4.2, . 4, .1
RUDDER CONTROL ASSEMBLY (See 4-2, Fig.4, Item No.1)
I
5 - 1 24-3022-10 .
Bellcrank
2
2 3401A-2-10-I8 .
Washer
I
3 3374A-10 .
Nut
2
4 24-3022-114 .
Bushing
I
5 900912 . ( 100/5)
Bearing (supplied according to 100/5)
I
6 24-3022-112 .
Axle
I
7 24-3022-113 .
Ring
I
8 50Q9A-10-80 .
Bolt
2
9 24-3022-117 .
Housing
I
10 HT204
8338-57
.
Bearing
I
11 24-3022-4 .
Nut
I
12 24-3022-3 .
Ring
I
