-26

.7.

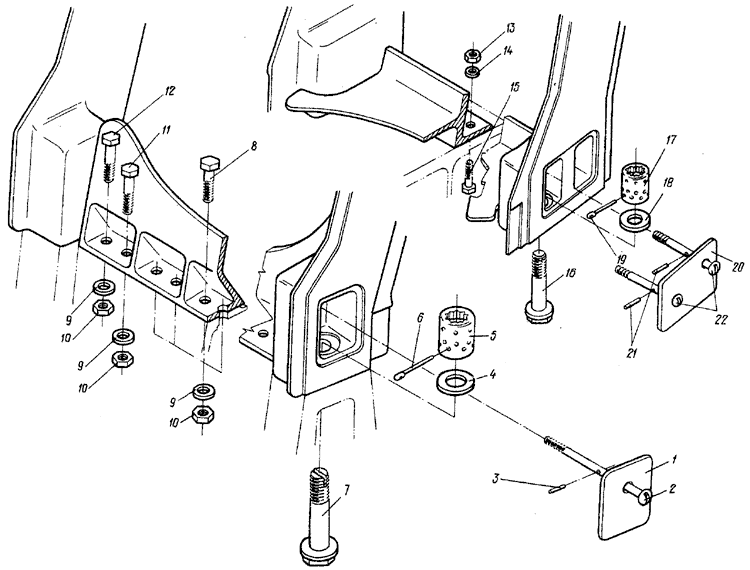

Fig.7. VERTICAL STABILIZER-TO-FUSELAGE JOOTT



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-3000-0 (.4.1, . I, .5)
VERTICAL STABILIZER-TO-FUSELAGE JOINT (See 4.1, Fig.l, Item No. 5)

7 - 1 24-3000-16-1 .
Aoceas hatch, RE
I
  24-3000-16-2 .
Access hatch, LH
I
2 24-3000-19-9 ..
Bolt
2
3 773AH ..
Peg
2
4 226AH-27 .
Washer
2
5 24-3000-43-7 .
Nut
2
6 24-3000-42-10 .
Cotter
2
7 24-3000-44-5 .
Bolt
2
8 302IA-6-26 .
Bolt
4
9 3402A-1-6-I2 .
Washer
8
10 3373A-6 .
Nut
8
11 302IA-6-28 .
Bolt
2
12 302IA-6-30 .
Bolt
2
13 3373-8 .
Nut
8
7 - 14 3402A-1,5-8-16 .
Washer
8
15 302IA-8-34 .
Bolt
8
16 24-3000-44-7 . 4
    Bolt
17 24-3000-43-3 .
Nut
4
18 226AH-16 .
Washer
4
19 24-3000-42-8 .
Cotter
4
20 24-3000-15-1 .
Access hatch, RH
I
  24-3000-15-2 .
Access hatch, LH
I
21 773AH ..
Peg
4
22 24-3000-19-3 ..
Bolt
4
