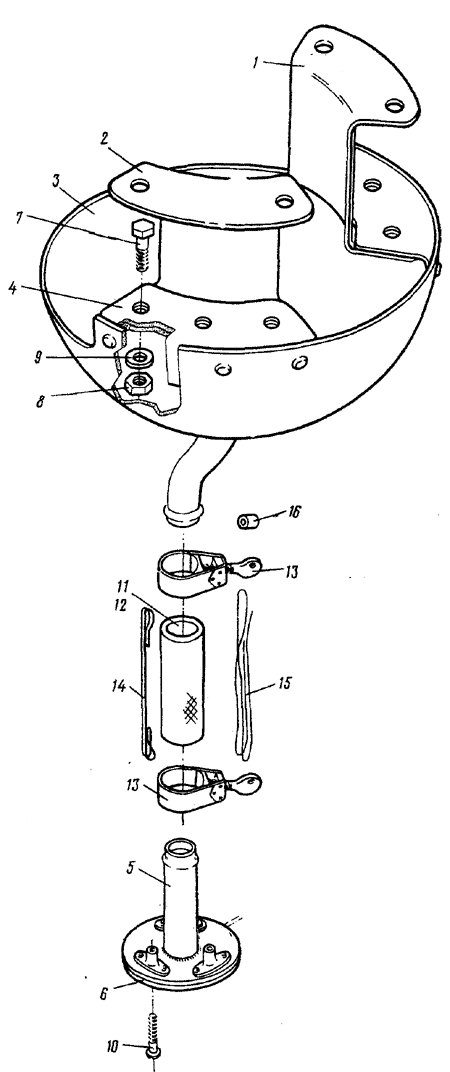

Fig.8. MOISTURE TRAP INSTALLATION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-3022-125 . (. 4.2, . 4, . 27)
MOISTURE TRAP INSTALLATION (See 4.2, Fig.4 Item No.27)
I A
8 - 1 24-3022-126 .
Bracket
I
2 24-3022-127 .
Bracket
I
3 26-3022-2 .
Moisture trap
I
4 26-3022-125-15 .
Angle-piece
2
5 26-3022-1 .
Tube with flange
I
6 24-3022-130 .
Gasket
I
7 3001A-4-I2 .
Bolt
6
8 3373A-4 .
Nut
6
9 340IA-0,5-4-10 .
Washer
6
10 3059A-4-I4 .
Bolt
3
11 1597-14-- .
Coupling assy
I
12 1714-15 .. Coupling I
13 1606A-24-T ..
Clamp
2
8 - 14 3763A-140 ..
Bonding strip
I
15 X18H9T1,O
5548-50
..
Looking wire

AE

16 2444a ..
Seal
2


- 1701

EFFECTIVITY LEGEND
- 1701 and on
