-26

.3.

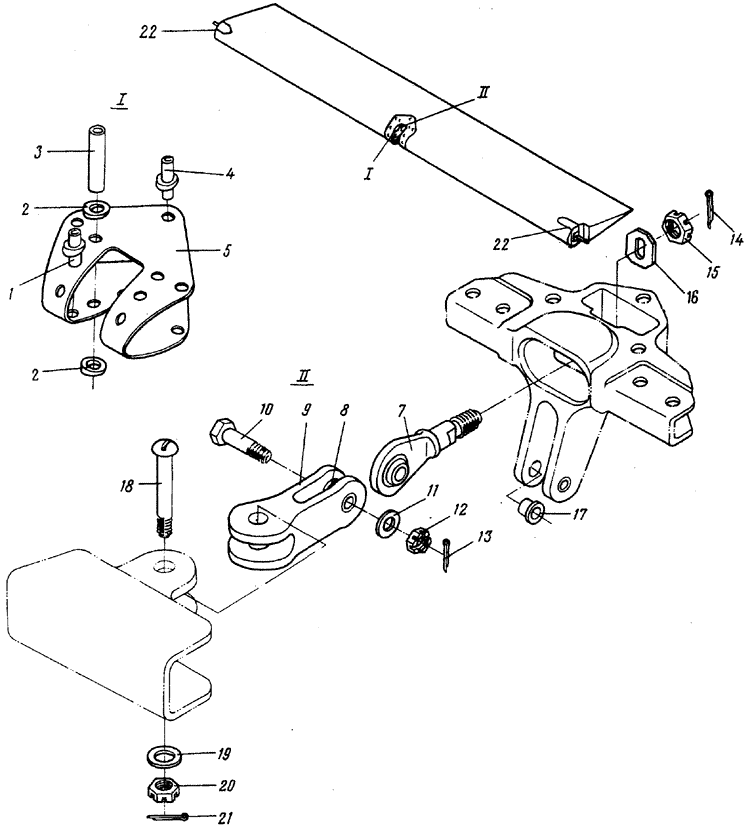

Frig.3. ELEVATOR TRIM TAB



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-3208-0-1 , (. 4.3, .2, .14)
ELEVATOR TRIM TAB, RH (See 4.3, Fig.2, Item No.14)
I
  24-3208-0-2 , (. 4.3, .2, .14)
ELEVATOR TRIM TAB, LH (See 4-3, Fig.2, Item No.14)
I
3 - 1 3610A-5-30 .

Hollow rivet
8
2 310AH-5-5-30 .
Washer
26
3 3610A-5-28 .

Hollow rivet
4
4 3610-5-20 .
Hollow rivet
I
5 24-3208-0-55 . Doubler I
6 24-3208-3 .
Attachment fitting
I
7 24-3208-6 ..
Lug
I
8 24-3313-18 .. Bushing I
9 24-3208-4 ..
Shackle
I
10 3027A-6-22-3 ..
Bolt
I
11 340IA-0,5-6-12 ..
Washer
I
12 3341A-6 ..
Nut
I
3 - 13 1,5x20-002
397-66
..
Cotter pin
I
14 2x25-002
397-66
.
Cotter pin
I
15 3336A-8 .
Hut
I
16 24-3208-7 .
Washer
I
17 24-3208-2 .
Bushing
I
18 24-3300-19-2 .
Bolt
I
19 340IA-1-6-I2 .
Washer
I
20 3341A-6 .
Nut
I
21 1,5x20-002
397-66
.
Cotter pin
I
22 24-3208-11 .
Bracket
2 A

- 2001

EPFECTIVITY LEGEND
- 2001 and on
