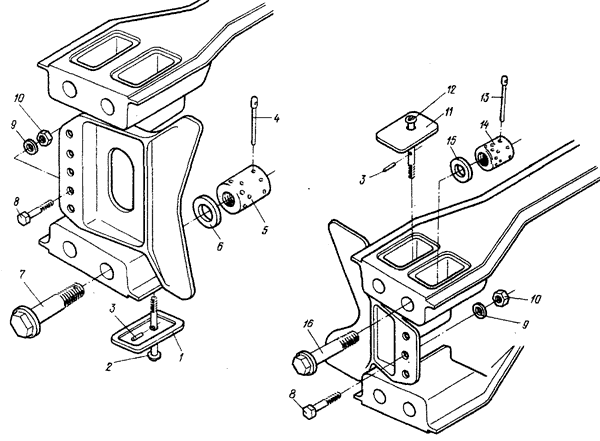

Fig. 5. HORIZOHTAL STABZLIZBR-TO-PUSELAGE JOINT



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-3000-0 (. 4.1, .1, .8)
HORIZONTAL STABILIZER-TO- FUSELAGE JOINT (See 4.1, Fig.l Item No. 8)
I
5 - 1 24-3000-18 .
Access
door
8
2 24-3000-19-7 ..
Bolt
8
3 773AH ..
Peg
12
4 24-3000-42-9 .
Cotter
8
5 24-3000-43-5 .
Nut
8
6 226AH-20 .
Washer
8
7 24-3000-44-4 .
Bolt
8
8 3021A-8-28 .
Bolt
16
9 3402A-1,5-8-16 .
Washer
24
10 3373A-8 .
Nut
40
11 24-3000-17 .
Access
door
4
12 24-3000-19-5 ..
Bolt
4
13 24-3000-42-8 .
Cotter
4
14 24-3000-43-3 .
Nut
12
5 - 15 226AH-16 .
Washer
16
16 24-3000-44-3 .
Bolt
8
