-26

— . . 4 7. 4.
     7 11

.2. . . 4 7.
4. 7 I. ( 2 . I)

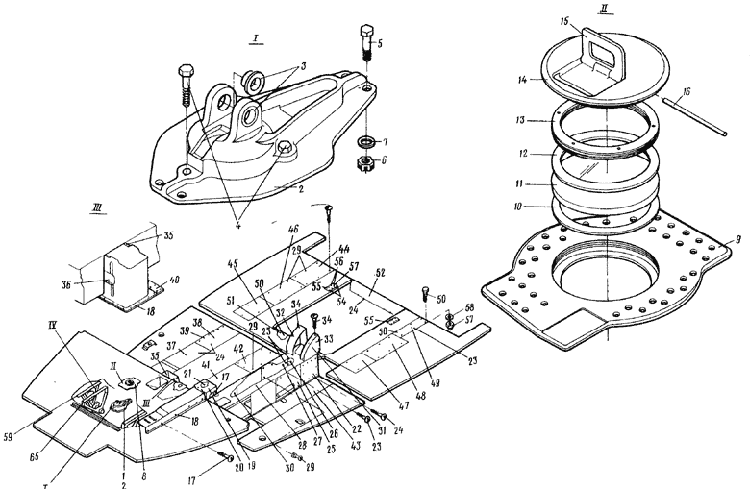

Pig,2. PILOTS' STATION FLOOR. DUCT FOR CONTROL SYSTEM PARTS IB PILOTS' STATION FLOOR. DUCT
BETWEEN FRAMES Noe 4 AND 7. DUCT AT FRAME No.4. FLOOR BETWEEN FRAMES Noe 7 AND 11.(Sheet 1 of 2)



.2. . . 4 7.
4. 7 I. ( 2 . 2)

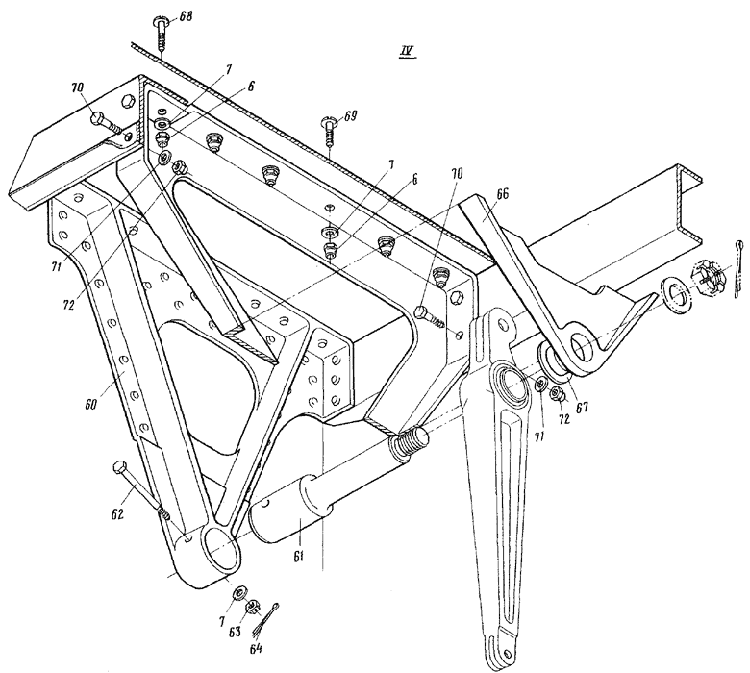

Pig.2. PILOTS STATION FLOOR. FOR CONTROL SYSTEM PARTS IB PILOTS' STATION FLOOR. DUCT
BETWEEN FRAMES NOB 4 AHD 1. DUCT AT PRAMS No.4. FLOOR BETWEEN FRAMES 7 AND 1. (Sheet 2 of 2)



.
Figure and item No.
Part number
Nomenclatu re
1234567		 K-o

Units per Assy		 Effectivity
  26-0220-0 (. 2.1, .3, .)
PILOTS STATIOH FLOOR (See 2.1, Pig.3, Item No.3)		 I
2-1 24-0220-30 .
Plate		 I
2 24-0220-30-5 ..
Platie		 I
3 24-0220-32 ..
Bushing		 2
4 24-0220-35 ..
Bolt		 3
5 49I6A-6-20 .
Bolt		 4
6 3373A-6 .
Nut		 4
7 34021-1,5-6-12 .
Washer		 4
8 24-0220-40 .
Inspection window in pilots' station floor		 I
9 24-0220-41 ..
Flange		 I
10 24-0220-39 ..
Gasket		 I
  24-0220-53 ..
Gasket		 I
11 24-0220-43 ..
Glass panel		 I
  24-0220-54 ..
Glass panel		 I
  26-0220-100 4 17 (. 2.1, .1, .18)
DUCT BETWEEN FRAMES NOS 4 AND 7 (See 2.1, Fig.l, Item No.18)		 I
2-22 26-0229-100-21 .
Cover		 I
23 3I72A-4-I0 .
Screw		 50
24 3I72A-4-I2 .
Screw		 92 A
  3I72A-4-I2 .
Screw		 76
25 26-0220-100-33 .
Cover		 I
26 26-0220-100-47 .
Cover		 I
27 26-0220-100-27 .
Cover		 I
28 26-0220-100-102 .
Cover		 I
29 I284C52-8-I3 .
Screw		 45 A
  I284C52-8-I3 .
Screw		 62
30 26-0220-100-57 .
Cover		 I
Dz 26-0220-120 .
Duct		 I
32 26-0220-120-5 ..
Cover		 I
2-33 26-0220-120-7 ..
Cover		 I
34 3I72A-4-I4 ..
Screw		 6
  26-0230-85 4 (. 2.1, .1, ,18) DUCT AT PRAISE .4 (See 2.1, Fig.I, Item No.18a) I
35 24-0230-88 .
Gasket		 2
36 24-0230-89 .
Gasket		 2
  26-0230-0 4 7 (. 2., , . 18)
FLOOR BETWESH FRAMES BOS 4 AND 7 (See 2.1, Fig.1, Item .18)		 I
37 26-0230-0-27 .
Sheet		 I
38 26-0230-0-31 .
Sheet		 I
39 3I72A-4-9 .
Screw		 75 A
  3I72A-4-9 .
Screw		 59
40 26-0230-0-61 .
Sheet		 I
41 26-0230-0-155 .
Sheet		 I
2-42 26-0230-0-153

26-0230-0-253		 .
Sheet
.
Sheet		 I

I		 A
43 26-0230-0-159 .
Sheet		 I
  26-0240-0 7 II (. 2.1, .1, .13)
FLOOR BETWEEN FRAMES NOS 7 AND 11 (See 2.1, Fig.1,Item No.13)		 I
44 26-0240-0-125 .
Sheet		 I
45 26-0240-0-I3I .
Sheet		 I
46 26-0240-0-I9I .
Sheet		 I
47 26-0240-0-139 .
Sheet		 I
48 26-0240-0-I4I .
Sheet		 I
49 26-0240-0-165 .
Sheet		 I
50 3I72A-4-8 .
Screw		 20
51 26-0240-0-45 .
Sheet		 I
52 26-0240-0-55 .
Sheet		 I
53 26-0240-4-1 26-0240-4-2 .
Bracket, RH
.
Bracket, LH		 I
I
2-54 I008AH-6-20 .
Bolt		 8
55 I008AH-6-22 .
Bolt		 6
56 1008AH-6-24 .
Bolt		 2
57 3373A-6 .
Nut		 16
58 3402A-I-6-I2 .
Washer		 16
59 24-0220-48-1 .
Bracket, RH		 I
  24-0220-48-2 .
Bracket, LH		 I
60 24-0220-49-1 .
Bracket, RH		 I
  24-0220-49-2 .
Bracket, LH		 I
61 24-0220-29 . Pill 2
62 3024-6-50-3 .
Bolt		 2
63 334IA-6 *
Nut		 2
64 1,6x20-002 397-66 .
Cotter pin		 2
65 24-0220-47-1 .
Bracket, RH		 I
  24-0220-47-2 .
Bracket, LH		 I
2-66 24-0220-47-3 .
Bracket, RH		 I
  24-0220-47-4 .
Bracket, LH		 I
6? 24I7AS7-20-24-6 .
Bushing		 2
68 305IA-6-I8 . 4
    Bolt
63 305IA-6-I6 . 20
    Bolt
70 3QI7A-6-I6 .
Bolt		 8
71 3402A-2-6-I2 .
Washer		 8
72 3374A-6 .
Hut		 8

- 1510
- 1601
- 1610
- 1701

EFFECTIVITY LEGEND
- up to 1510
- 1601 and on
- up to 1610
- 1701 and on
