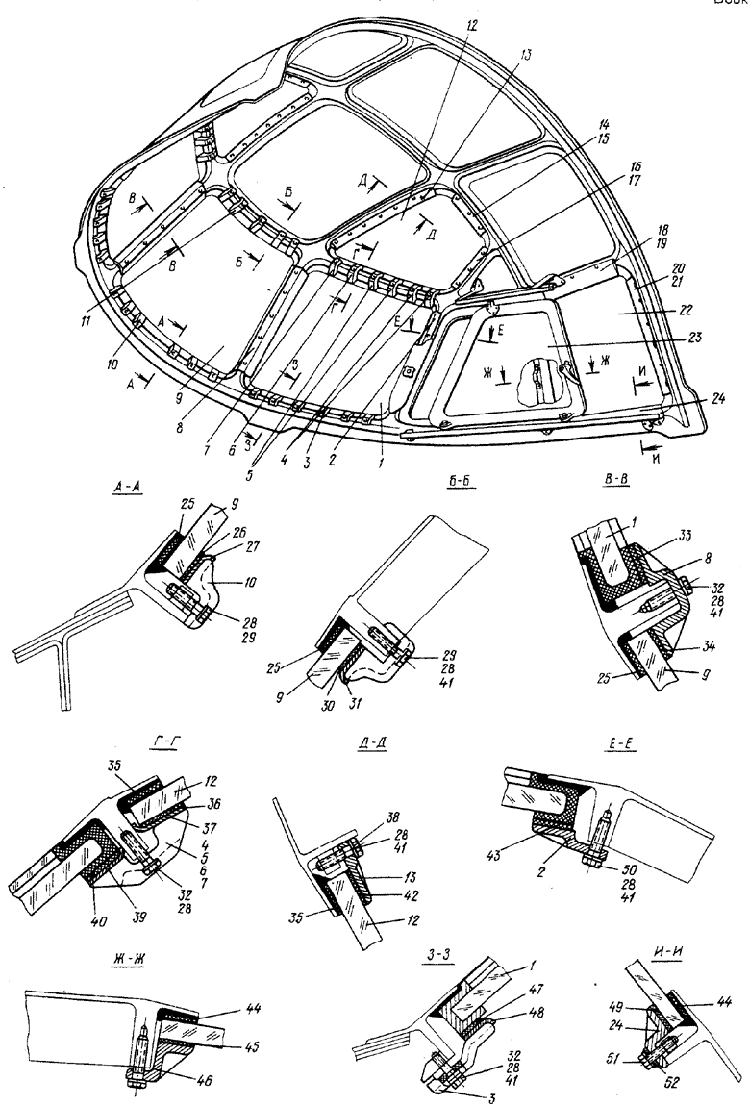

Pig.3. CHEW CABIN CANOPY GLAZING



.
Figure and item No.
Part number
Nomenclatu re
1234567		 K-o

Units per Assy		 Effectivity
  24-0250-30 ȭ (. 2.1, .1, .4)
CREW CABIN CANOPY GLAZING (See 2.1, Fig.l, Item No.4)
3 - I A10-000-0I .
Windscreen, RH 		I
  A10-000-02 .
Windscreen, LH 		I
2 24-0250-20I-I .
Glass holder, RH		 I
  24-0250-201-2 .
Glass holder, LH		 I
3 24-0250-232 .
Glass holder		 10
4 24-0250-239-3 .
Glass holder, RH		 2
  24-0250-239-4 .
Glass holder, LH		 2
5 24-0250-239-2 .
Glass holder		 4
6 24-0250-239-1 .
Glass holder		 2
7 24-0250-238 .
Glass holder		 2
8 24-0250-23I-I .
Glass holder, RH		 I
  24-0250-231-2 .
Glass holder, LH		 I
9 24-0250-30-107 .
Glass panel		 I A
  24-0250-30-141 .
Glass panel		 I
3-10 24-0250-219 .
Glass holder		 6
11 24-0250-218 .
Glass holder		 5
12 24-0250-30-207 .
Glass penel, RH		 I A
  24-0250-30-145 .
Glass panel, RH		 I
  24-0250-30-208 .
Glass panel, LH		 I A
  24-0250-30-146 .
Glass panel, LH		 I
13 24-0250-32-1 .
Glass holder, RH		 I
  24-0250-32-2 .
Glass holder, LH		 I
14 24-0250-217 .
Glass holder		 2
15 24-0250-30-24 .
Gasket		 2
16 24-0250-2I6-I .
Glass holder, RH		 I
  24-0250-216-2 .
Glass holder, LH		 I
17 24-0250-30-25 .
Gasket		 2
18 24-0250-43-1 .
Glass holder, RH		 I
  24-0250-43-2 .
Glass holder, LH		 I
3-19 24-0250-30-22 .
Gasket		 2
20 24-0250-33-1 .
Glass holder, RH		 I
  24-0250-33-2 .
Glass holder, LH		 I
21 24-0250-30-21 .
Gasket		 2
22 24-0250-30-109 .
Glass panel, RH		 I A
  24-0250-30-143 .
Glass panel, HE		 I
  24-0250-30-110 .
Glass panel, LH		 I A
  24-0250-30-144 .
Glass panel, LH		 I
23 24-0250-5I-I . (. 2.1, .4)
Installation of DV-panel, RH (See 2.1, Pig.4)		 I
  24-0250-51-2 . (. 2.1, .4)
Installation of DV-panel, LH (See 2.1, Pig.4)		 I
24 24-0250-35-1 .
Glass holder, RH		 I
  24-0250-35-2 .
Glass holder, LH		 I
25 24-0250-30-211 .
Gasket		 I
3-26 24-0250-30-18 .
Gasket		 2
27 24-0250-30-135 .
Gasket		 I
28 5H65 02 9 6402-70 .
Washer		 125
29 3003A-5-20 .
Bolt		 12
30 24-0250-30-15 .
GaBket		 I
Dz 24-0250-30-130 .
Gasket		 I
32 24-0250-I2I-2 .
Bolt		 69
33 24-0250-235-1 .
Gasket		 2
34 24-0250-30-16 .
Gasket		 2
35 24-0250-30-215 .
Gasket		 2
36 24-0250-30-17 .
Gasket		 4
37 24-0250-30-37 .
Gasket		 I
  24-0250-30-38 .
Gasket		 I
38 24-0250-I2I-I .
Bolt		 38
39 24-0250-30-31 .
Gasket		 I
3-39 24-0250-30-32 .
Gasket		 I
40 24-0250-236 .
Gasket		 2
41 340-08-5-10 .
Washer		 97
42 24-0250-30-23 .
Gasket		 2
43 24-0250-235-3 .
Gasket		 2
44 24-0250-30-213 .
Gasket		 2
45 24-0250-30-19 .
Gasket		 2
46 24-0250-44-1 .
Glass holder, RH		 I
  24-0250-44-2
Glass holder, LH		 I
47 24-0250-237 .
Gasket		 2
48 24-0250-30-133 .
Gasket, RH		 I
  24-0250-30-134 .
Gasket, LH		 I
49 24-0250-30-20 * Gasket 2
50 3003A-5-22 . Bolt 2
51 3003A-5-24 .
Bolt		 2
3-52 24-0250-126 .
Bracket		 33


A - 1607
- 1608

EPPECTIVITY LEGEND
- up to 1607
- 1608 and on
