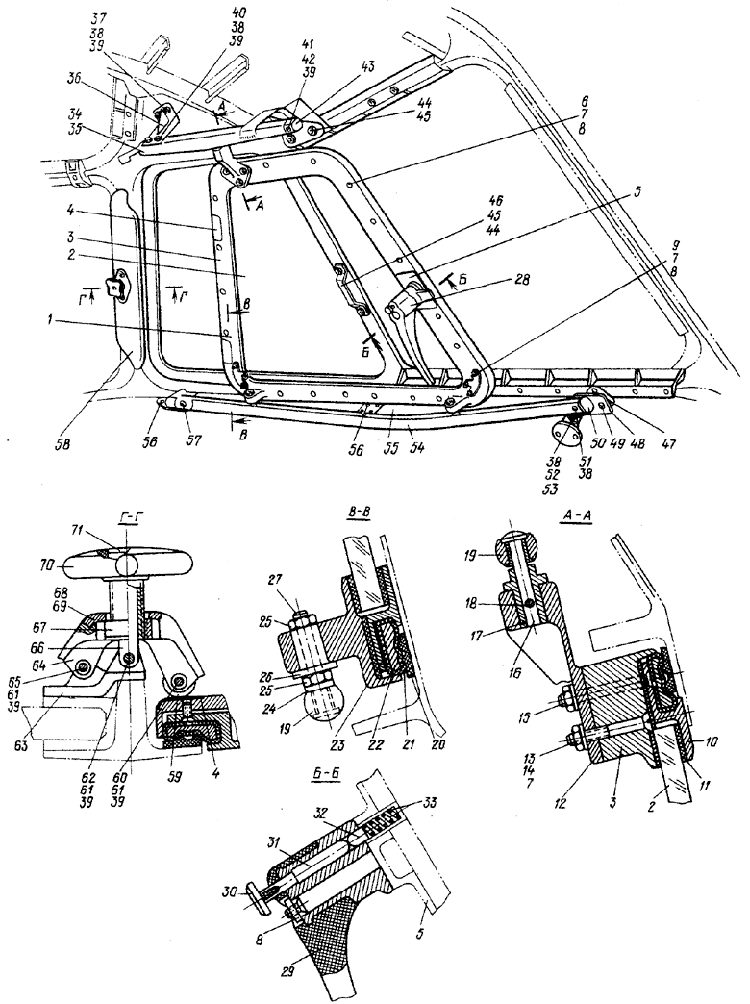

Pig.4. DV-PANEL INSTALLATION
.
Figure and item No. |
Part number |
Nomenclatu re
1234567 |
K-o
Units per Assy |
Effectivity |
| |
24-0250-51-1 |
(. 2.1 .3, .23)
INSTALLATION OP DV-PANEL, RH (See 2.1, Pig.3, Item No.23) |
I |
|
| |
24-0250-51-2 |
(. 2.1, .3, .23)
INSTALLATION OP DV-PAHEL, LH (See 2.1, Pig.3, Item No.23) |
I |
|
| 4 - 1 |
24-0250-250-1 |
. DV-panel, RH |
I |
|
| |
24-0250-250-2 |
.
DV-panel, LH |
I |
|
| 2 |
24-0250-250-11 |
..
Glass panel, RH |
I |
|
| |
24-0250-250-12 |
.. GlasB panel, LH |
I |
|
| 3 |
24-0250-267-1 |
..
Inner frame, RH |
I |
|
| |
24-0250-267-2 |
.. Inner frame, LH |
I |
|
| 4 |
24-0250-253 |
...
Plate |
4 |
|
| 5 |
24-0250-I73-1 |
...
Bracket, RH |
I |
|
| |
24-0250-173-2 |
...
Bracket, LH |
I |
|
|
3181A-5-I2 |
..
Screw |
34 |
|
| 7 |
9402A-0,5-5-10 |
..
Washer |
52 |
|
| 8 |
24-0250-83 |
..
Nut |
48 |
|
| 4-9 |
3072A-5-I6 |
..
Bolt |
12 |
|
| 10 |
24-0250-254-1 |
..
Outer frame, RH |
I |
|
| |
24-0250-254-2 |
..
Outer frame, LH |
I |
|
| II |
24-0250-215 |
..
Gasket |
4 |
|
| 12 |
24-0250-133 |
.. Bracket |
2 |
|
| 13 |
3072A-5-28 |
..
Bolt |
2 |
|
| 14 |
3310A-5-00 |
..
Hut |
6 |
|
| 15 |
3072A-5-36 |
..
Bolt |
4 |
|
| 16 |
24-0250-60 |
..
Pin |
2 |
|
| 17 |
24-0250-61 |
..
Axle |
2 |
|
| 18 |
-2-
792-67
|
..
wire
|
2 6 |
AR |
| 19 |
24-0250-80 |
..
Roller |
|
A |
| |
24-0250-296 |
..
Roller |
6 |
|
| 20 |
24-0250-189-1 |
..
Section, RH |
I |
|
| |
24-0250-189-2 |
..
Section, LH |
I |
|
| 21 |
24-0250-I87-1 |
.. Section, RH |
I |
|
| 4-21 |
24-0250-187-2 |
..
Section, LH |
I |
|
| 22 |
24-0250-260 |
..
Sealing |
2 |
|
| 23 |
24-0250-250-29 |
Gasket |
2 |
|
| 24 |
24-0250-261 |
..
Bushing |
4 |
|
| 25 |
33201-6 |
Hut |
4 |
|
| 26 |
24-0250-175 |
.. Axle |
4 |
|
| 27 |
24-0250-176 |
.. Pin |
4 |
|
| 28 |
24-0250-I04-1 |
..
Installation of DV-panel lock, RH |
I |
|
| |
24-0250-104-2 |
..
Installation of DV-panel lock, LH |
I |
|
| 29 |
24-0250-I08-1 |
...
Handle, RH |
I |
|
| |
24-0250-108-2 |
...
Handle, LH |
I |
|
| 30 |
24-0250-94 |
...
Screw |
2 |
|
| 31 |
24-0250-166 |
...
Button |
2 |
|
| 32 |
24-0250-195 |
...
Retainer |
2 |
|
| 4-33 |
1916A-1-6-14 |
...
Spring |
2 |
|
| 34 |
24-0250-I28-1 |
.
Top rail, RH |
I |
|
| |
24-0250-128-2 |
.
Top rail, LH |
I |
|
| |
24-0250-138-1 |
.
Top rail, RH |
I |
|
| |
24-0250-138-2 |
.
Top rail, LH |
I |
|
| 35 |
24-0250-130-1 |
.
Top rail trimming, RH |
I |
|
| |
24-0250-130-2 |
.
Top rail trimming, LH |
I |
|
| 36 |
24-0250-I29-1 |
.
Bracket, RH |
I |
|
| |
24-0250-129-2 |
.
Bracket, LH |
I |
|
| |
24-0250-I39-I |
.
Bracket, RH |
I |
|
| |
24-0250-139-2 |
.
Bracket, LH |
I |
|
| 37 |
3072-4-4 |
. Bolt |
6 |
|
| 38 |
3373A-4 |
.
Nut |
28 |
|
| 39 |
3402A-0,5-4-8 |
.
Washer |
24 |
|
| 40 |
3051-4-12 |
. Bolt |
4 |
|
| |
3166A-4-28 |
. Screw |
2 |
|
| 42 |
3301A-4 |
. Nut |
2 |
|
| 43 |
24-0250-259 |
. Rest |
2 |
|
| 44 |
24-0250-121-2 |
.
Bolt |
4 |
|
| 45 |
5H65 02 9 6402-70 |
.
Washer |
4 |
|
| 46 |
24-0250-209-1 |
.
Shackle, RH |
I |
|
| |
24-0250-209-2 |
.
Shackle, LH |
I |
|
| 47 |
24-0250-I48-I |
.
Bracket, RH |
I |
|
| |
24-0250-148-2 |
.
Bracket, LH |
I |
|
| 48 |
24-0250-149-1 |
.
Base, RH |
I |
|
| |
24-0250-149-2 |
.
Base, LH |
I |
|
| 49 |
3166A-5-18 |
.
Screw |
4 |
|
| 50 |
24-0250-134 |
.
Rest |
2 |
|
| 51 |
3166A-4-26 |
.
Screw |
2 |
|
| 52 |
3001A-4-I2 |
.
Bolt |
6 |
|
| 53 |
3402-0,8-4-8 |
.
Washer |
6 |
|
