-26
|
—
.5.

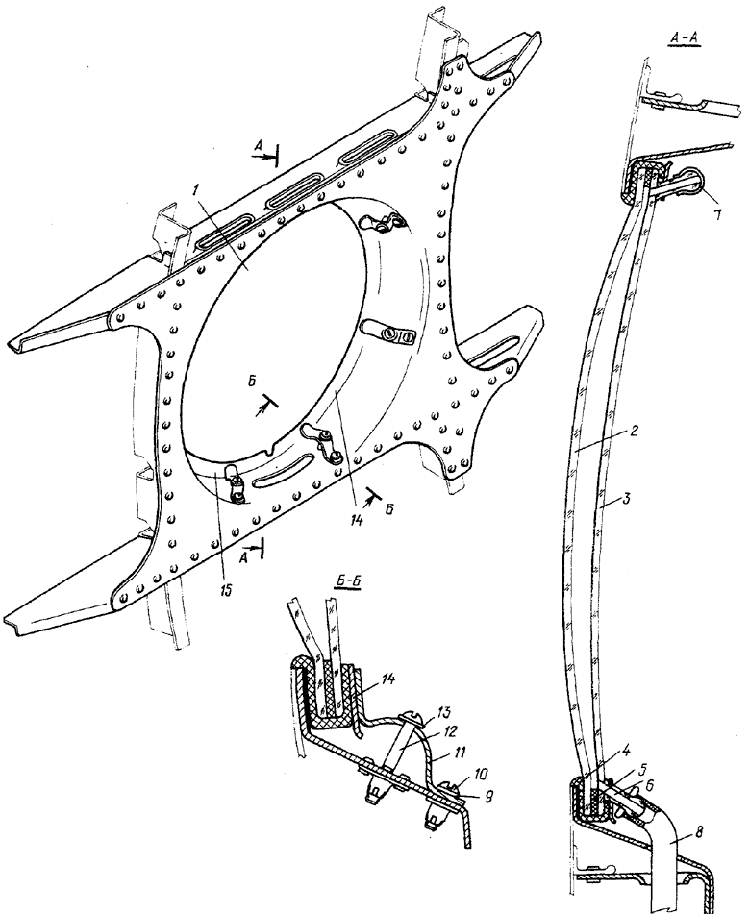

Pig.5. RADIO OPERATOR'S WINDOW
.
Figure and item No. |
Part number |
Nomenclature
1234567 |
K-o
Units per Assy |
Effectivity |
| |
24-0203-50 |
(. 2.1, .1, .5)
RADIO OPERATOR'S WINDOW (See 2.1, Fig.l, Item No.5) |
|
|
| 5- |
24-0203-60 |
.
Glass panel |
I |
|
| 2 |
24-0203-60-23 |
..
Outer glass panel |
I |
|
| 3 |
24-0203-60-25 |
..
Inner glass panel |
I |
|
| |
24-0203-64 |
..
Sealing member |
I |
|
| 5 |
24-0203-60 |
..
Gasket |
I |
|
| 6 |
24-0350-55 |
..
Pipe connection |
2 |
|
| 7 |
24-0350-120 |
..
Plug |
I |
|
| 8 |
24-0350-110 |
..
Air pump |
I |
|
| 9 |
34021-0,8-5-10 |
.
Washer |
8 |
|
| 10 |
3I66A-5-I4 |
.
Screw |
8 |
|
| 11 |
24-0203-53 |
.
Spring |
8 |
|
| 12 |
31661-5-28 |
.
Screw |
8 |
|
| 13 |
24-0350-11 |
.
Washer |
8 |
|
| 5-14 |
24-0203-50-33 |
.
Glass holder |
I |
|
| 15 |
24-0203-50-35 |
.
Glass holder |
I |
|
