-26

1.
—

1.

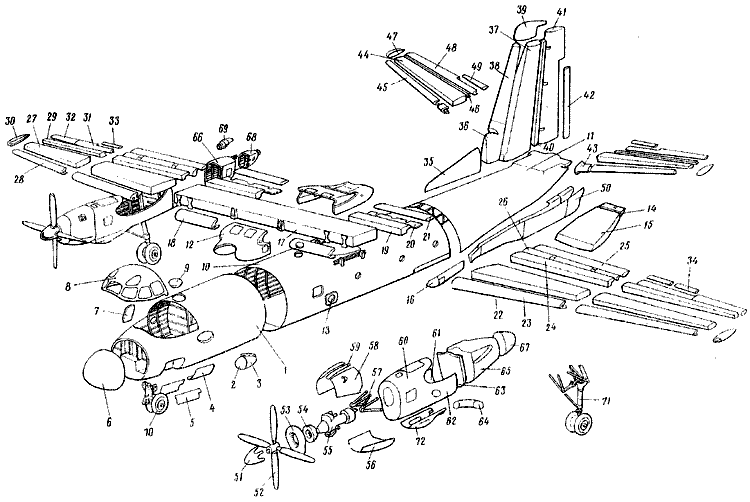

Pig.l. PRODUCTION BREAKS



.
Figure and item No.
Part number
Nomenclatu re
1234567		 K-o

Units per Assy		 Effectivity

PRODUCTION BREAKS
I - I 26-0200-0 .
Fuselage nose section		 I
2 26-0204-50 .. Navigator's blister I
3 26-0204-70 .. Navigator's blister fairing I
4 24-0253-260-1 .. 2 4,
Access door between frames Nos 2 and 4, LH		 I
  24-0253-260-2 2 4,
Access door between frames Nos 2 and 4, RH		 I
5 24-0254-50-1 .. ,
Nose L.G. bay door, RH 		I
  24-0254-50-2 .. ,
Nose L.G. bay door, LH		 I
6 24-7901-20/6 ..
Nose radome		 I
7 26-0260-50 ..
Entrance door		 I
8 26-0250-0 ..
Installation of crew cabin canopy		 I
9 24-0270-50 ..
Dorsal emergency hatch		 I
I - I0 26-0300-0 .
Fuselage middle section 		I
II 26-0400-0 .
Fuselage tail section 		I
12 24-0380-0 . Wing-to-fuselage fairing I
13 24-0355-60-1 ,
Side emergency hatch, RN		 I
  24-0355-60-2 . , Side emergency hatch, LH I
14 26-0462-500
Ramp exteneion 		I
15 26-0462-0 . Cargo hatch ramp I
16 26-0360-0 .
Side rail fairing 		I
17 26-1000-0 . Wing center section I
18 24-I0II-50-I .. ,
Wing-center section detachable leading edge, RH		 I
  24-1011-50-2 ..
Wing-center section detachable edge, LH		 I
19 26-1012-200-I .. ,
Wing-center section trailing portion, RH		 I
  26-I0I2-200-2 .. ,
Wing-center section trailing portion, LH		 I
1-20 24-3800-80-1 .
Curtain, RH		 I
  24-3800-80-2 . Curtain, LH I
21 26-38I0-I30-I . ,
Wing-center section single- slotted flap, RH		 I
  26-38I0-I30-2 . ,
Wing-center section single- slotted flap, LH		 I
22 26-2000-0-1 . ,
Inner wing, RH 		I
  26-2000-0-2 . ,
Inner wing, LH 		I
23 26-2120-0-1 .. ,
Inner wing leading edge, RH		 I
  26-2120-0-2 ,
Inner wing leading edge, LH		 I
24 26-2200-200-1 .. ,
Inner wing trailing portion, RH		 I
  26-2200-200-2 .. ,
Inner wing trailing portion, LH		 I
25 26-3820-0-1

26-3820-0-2		 . ,
Inner wing flap, RH
. ,
Inner wing flap, LH		 I

I
I - 26 24-3820-I0-I .. ,
Inner wing flap baffle plate, RH		 I
  24-3820-10-2 .. ,
Inner wing flap baffle plate LH		 I
27 26-2G50-0-I . ,
Outer wing, RH 		I
  26-2050-0-2 . ,
Outer wing, LH 		I
28 24-2130-0-1 .. ,
Outer wing leading edge, RH		 I
  24-2130-0-2 ,
Outer wing leading edge, LH		 I
29 26-2200-60-1 .. ,
Outer wing trailing portion, RH		 I
  26-2200-60-2 .. ,
Outer wing trailing portion, LH		 I
30
 24-2025-I0-I .. ,
Wing tip fairing, RH 		I
  24-2025-10-2 .. ,
Wing tip fairing, LH 		T
Dz 24-3701-20 .. ,
Root aileron, RH 		I
  24-3701-0 .. ,
Root aileron, LH 		I
32 24-3702-50-1 ... ,
End aileron, RH
1-32 24-3702-50-2 .. ,
End aileron, LH		 I
33 24-3704-0-1 ... ,
Aileron balancing tab, RH 		I
  24-3704-0-2 ... ,
Aileron balancing tab, R 		I
34 24-3705-0 ... ,
Aileron trim tab, LH 		I
35 26-3503-0 .
Dorsal fin		 I
36 26-3041-0 .
Vertical stabilizer fairing		 I
37 26-3400-0 . Pin I
38 24-3406-0 ..
Pin leading edge		 I
39 26-3409-0 ..
Pin tip		 I
40 24-3404-0
Pin trailing edge		 I
41 26-3300-300 ..
Rudder		 I
42 24-3315-0 ...
Rudder balancing tab 		I
43 26-3060-0-1 . ,
Stabilizer fillet, RH		 I
  26-3060-0-2 . ,
Stabilizer fillet, LH		 I
I 44 26-3100- 0-I

26-3100-0-2		 . ,
Horizontal stabiliser airfoil, RE
. ,
Horizontal stabiliser airfoil, LH		 I
45 24-3I06-0-I .. ,
Horizontal stabiliser leading edge, RH		 I
  24-3106-0-2 .. ,
Horizontal stabilizer leading edge, LH		 I
46 24-3104-0-1 .. ,
Horizontal stabilizer trailing portion, RH		 I
  24-3104-0-2 ,
Horizontal stabilizer trailing portione LH		 I
47 24-3110-0-1 ,
Horizontal stabilizer tip fairing, RE 		I
  24-3110-0-2 .. , Horizontal stabilizer tip fairing9 LH I
48 24-3200-0-1 .. ,
Elevator RH
  24-3200-0-2 .. ,
Elevator LH 		I
49 24-3208-0-1 ... ,
Slevstor trim tab, EH 		I
1-49 24-3208-0-2 ... ,
Elevator trim tab, LH		 I
50 26-0465-50-1 .
Ventral fin, RH		 I
  26-0465-50-2 .
Ventral fin, LH 		I
51 24-6911-300 .
Propeller spinner		 2
52 AB-72T .
Propeller		 2
53 24-6213-0 .
Engine air intake		 2
54 24-6912-0 .
Reduction gear fairing 		2
55 -24 . Engine 2
56 26-6915-0 .
Cowling lower cover 		2
57 24-6401-0 .
Engine mount		 2
58 24-6914-0 .
Cowling side panel 		4
59 24-6910-100 .
Cowling upper beam 		2
60 24-6923-50 .
Engine nacelle upper panel 		2
61 26-6923-100-1 . ,
Engine nacelle inboard side panel. RH 		I
1-61 26-6923-100-2 ,
Engine nacelle inboard side pane. LH 		I
63 26-6923-200-1 ,
Engine nacelle frame No.19, LH		 I
  26-6325-200-2 ,
Engine nacelle frame No.19, LH		 I
63 24PB-6944-I50 19
Engine nacelle frame Ia.19, RH		 I
  26-6920400 19 ,
Engine nacelle frame No,19, LH		 I
64 26-68 1-0-1 ,
Exhaust pipep RH 		I
  26-6800-0-2 ,
Exhaust pipef LH 		I
65 26-6951-0
Left engine nacelle tail portion 		I
66 24-6940-0
Right engine nacelle tail portion 		I
67 24-6953-0
Tail cone 		I
1-68 24PB-6945-0 . 19-300
19-300 engine cowling 		I
69 19-300 . Engine I
70 24-4200-0 . Hose L.G. I
71 24-400-0A-1

24-4I00-0A-2 		. ,
Main L.G. strut,
. ,
Main L.G. strut, LH 		I

I
72 26-6925-0-1 . , pa
Main L.G. bay door, RH 		2
  26-6925-0-2 . ,
Main L.G. bay door, LH 		2
