.10.

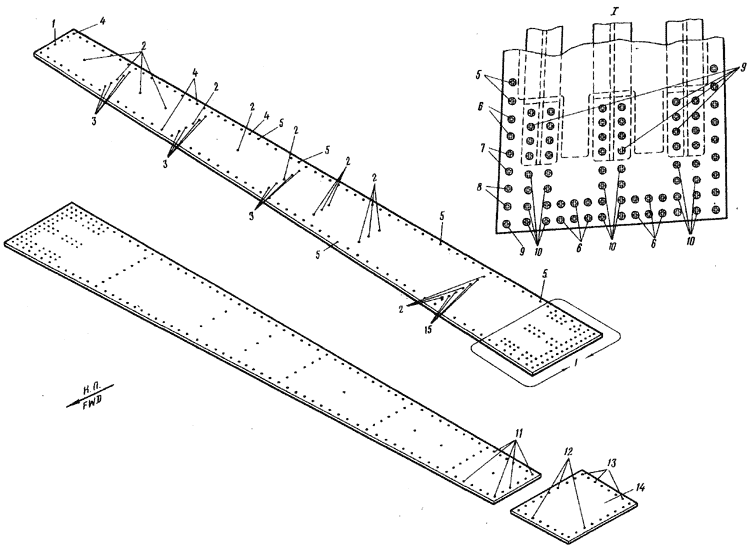

Fig.10, WING OUTER SECTION UPPER DETACHABLE PANEL



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-2301-0-7 , (. 3.4, . I, .7)
WING OUTER SECTION UPPER DETACHABLE PANEL, RH (See 3.4, Pig-1, Item No. 7)
I
  26-2301-0-8 , (. 3.4, . I, .7)
WING OUTER SECTION UPPER DETACHABLE PANEL , LH (See 3-4, Pig.l, Item No. 7)
I
10 - 1 24-2110-44-8 .
Bolt on RH panel
6
2 24-2110-44-17 .
Bolt
16
3 24-211044-3 .
Bolt
12
4 4996A-5-14 . 17 23
Bolt on the section from rib 17 to rib 23, HH panel
164
  4996A-5-14 . 17 22
Bolt on the section from rib 17 to rib 22, LH panel
124
5 4996A-5-16 . 12 17
Bolt on the section from rib 12 to rib 17
122
6 4947A-5-16 .
Bolt
16
7 4947A-5-18 .
Bolt
4
8 4947A-5-20 .
Bolt
4
10 - 9 4947A-5-22 .
Bolt
26
10 4947A-5-24 .
Bolt
24
11 3180A-5-14 . 500 mm 3 7
Bolt on the section 500 mm from the RB panel edge to stringers 3 and 7
40
12 3180A-5-14 .
Bolt on IB panel
23
3180A-5-16 .
Bolt on LH panel
7
14 24-2050-0-25 .
Access door on LH panel
I
15 24-2110-44-8 .
Bolt
4 A
  24-2110-44-3 .
Bolt
4

A - 2810
- 2901

EFFECTIVITY LEGEHD
- up to 2810
- 2901 and on
