-26

— ()

. 8. () ( 2 . 1)

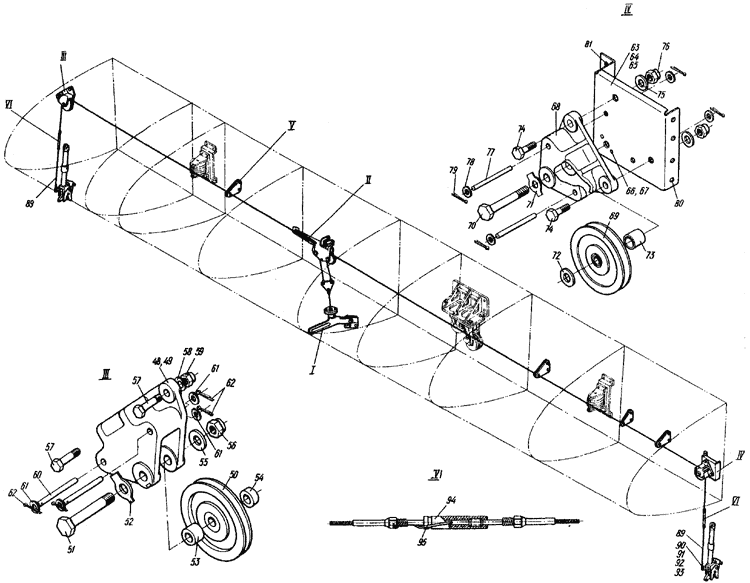

Fig. 8. MAIN L.G. UNIT UPLOCK EMERGENCY (MANUAL) RELEASING SYSTEM (Sheet 1 of 2)



. 8. () ( 2 . 2)

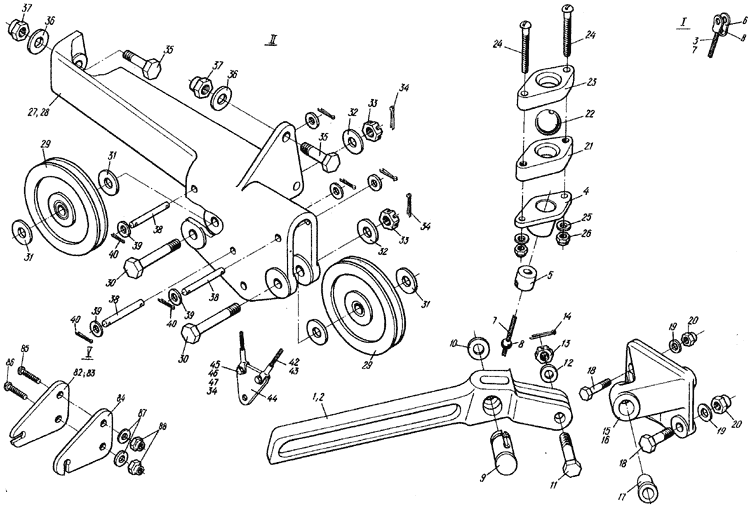

Fig. 8. MAIN L.G. UNIT UPLOCK EMERGENCY (MANUAL) RELEASING SYSTEM (Sheet 2 of 2)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4107-0 () (. 5.1 . I, . 7)
MAIN L.G. UNIT UPLOCK EMERGENCY (MANUAL) RELEASING SYSTEM (See 5.1, Fig.1,Item No.7)
I -
8 - 1 24-4107-100 .
Releasing handle and pressure seal
I
2 24-4107-5 ..
Releasing handle
I
3 24-4107-9 ..
Cable, assy
I
4 24-4107-11 ...
Flange
I
5 24-4107-15 ...
Bush
I
6 24-4107-16 ...
Hinge half
I
7 24-4107-9-3 ... L = 170
Cable, L-170
I
8 136AH-2.5-A ...
Ball
2
9 24-4107-6 .. Axle I
10 56355-14 ..
Check ring
I
11 3027A-8-36-3,5 ..
Bolt
I
12 3402A-1-8-16 ..
Washer
I
13 3341-8 ..
Nut
I
14 2x25-002
397-66
..
Cotter pin
I
8 - 15 24-4107-110 ..
Bracket, asey
I
16 24-4107-8 ...
Bracket
I
17 24-4107-4 ...
Bush
I
18 3003A-6-20 ..
Bolt
3
19 3402-0,5-6-12 ..
Washer
3
20 3373-6 ..
Nut
3
21 24-4107-43 ..
Body
I
22 3905-2,5 ..
Core
I
23 24-4107-42 ..
Cap
I
24 3166A-5-36 ..
Screw
2
25 3402-1,5-5-10 ..
Washer
2
26 3373-5 ..
Nut
2
27 24PB-4107-I20 .
Bracket
I
28 24-4107-22 ..
Bracket
I
29 47250-50-7 ..
Pulley
2
30 3027-7-34-3 ..
Bolt
2
31 3402-2-7-14 ..
Washer
4
32 3402-1,5-7-14 ..
Washer
2
8-33 3S4IA-6 .
Nut
2
34 1,5x15-002
397-66
..
Cotter pin
4
35 3017-6-18
Bolt
3
36 3402-1-6-12 ..
Washer
3
37 3374-6 ..
Nut
3
38 258-34 ..
Guard
.4
39 3401-0,8-5-10 ..
Washer
8
40 ,5x10-002
397-66
..
Cotter pin
8
41 24-4107-2-2 ..
Cable
I
42 24-4107-2-3 ..
Cable
I A
43 24-4107-3 ..
Cable
I
44 24-4107-3 ..
Plate
I
45 3017-5-14-3 ..
Bolt
2
46 3402-0,8-5-10 ..
Washer
2
47 3341-5 ,.
Nut
2
48 24-4107-150 . ( )
Bracket (right, if viewed in the forward direction)
I
49 24-4107-51 ..
Bracket
I
8 - 50 472C50-50-7 ..
Pulley
I
51 3027A-7-50 ..
Bolt
I
52 24-4107-17 ..
Washer
I
53 1367C50-8-10-7 ..
Bush
I
54 1367C50-8-10-5 ..
Bush
I
55 3402A-1-7-14 ..
Washer
I
56 3374-6 ..
Nut
I
57 3017A-5-22 ..
Bolt
2
58 3402A-1-5-10 ..
Washer
2
59 3373-5 ..
Nut
2
60 258-42 ..
Guard
2
61 3401-0,8-5-10 ..
Washer
4
62 1,5x10-002
397-66
..
Cotter pin
4
63 24PB-4107-50 .
Bracket of L.G. unit uplock releasing
Cable on wing center section port side
I
8 - 64 24-4107-70 ...
Bracket, aeey
I
65 24-4107-53 ...
Bracket
I
66 3382-6 ...
Nut
I -
67 35491-2,6-5 ...
Rivet
2
68 24-4107-51 ..
Bracket
I
69 47250-50-7 ..
Pulley
I
70 24-4107-18 ..
Bolt
I
71 24-4107-17 ..
Washer
I
72 3402-2-7-14 ..
Washer
I
73 36750-8-10-10 ..
Bush
I
74 3017-5-16 ..
Bolt
2
75 3402-0,5-5-10 ..
Washer
2
76 3373-5 ..
Nut
2
77 258-42 ..
Guard.
2
78 3401-0,8-5-10 ..
Washer
4
79 1,5x10-002
397-66
..
Cotter pin
4
80 3501-3-10 ..
Rivet
4
81 3501-3-8 ..
Rivet
4
8 - 82 24PB-4107-25 .
Cable guide
I
83 24-4107-28 ..
Cable guide
4
84 24-4107-29 ..
Cable guide
4
85 3166A-4-14 ..
Screw
6
86 3166A-4-16 ..
Screw
4
87 3402-0,5-4-8 ..
Washer
8
88 3373-4 ..
Nut
8
89 24PB-4107-1 .
Cable
2
90 3017A-5-14-3 .
Bolt
3
91 &0uot;334IA-5 .
Nut
3
92 3402-0,8-5-10 .
Waeher
3
93 1,5x15-002
397-66
.
Cotter pin
3
94 24050-4 .
Coupling
2
95 1-
792-67
.
Wire

AR

    :
1310
1401

EFFECTIVTTY LEGEND

Code            Serial Number
A              through 01310
              01401 and on
